Lucent Technologies SLC 5 Series Manual page 241

363-205-401
Issue 7, March 1997
25.
!
DANGER:
After connectors are mated, power bus will be "live" (i.e., have voltage on
it).
Connect together gray connectors on STR( ) (1, 2, or 3) battery string cable
and STR( ) (1, 2, or 3) cable from control & distribution panel.
26. Dress and secure cables to the top of the battery compartment as necessary
to keep them above batteries (in case of flood).
27.
NOTE:
To measure battery string voltage accurately, disconnect any battery
strings other than battery string being measured. [To disconnect other
battery strings, unplug STR( ) battery string cable connector (gray) from
STR( ) battery cable connector (gray) from control & distribution panel.]
On control & distribution panel [Figure 3], connect DMM to BAT( ) (1, 2, or 3)
test point and PVR test point for battery string being installed.
OPEN BAT
TEST
BATC
BAT1 BAT2 BAT3 BAT4
OPEN BATTERY TEST
TO MEASURE * USE TEST POINTS
BATTERY CURRENT:
Battery 1 * bat1 - batc
battery 2 * bat2 - batc
battery 3 * bat3 - batc
battery 4 * bat4 - batc
28. Does meter indicate battery string voltage of 49.5 V DC or higher?
If YES, then proceed to Step 30.
If NO, then continue with Step 29.
POWER PLANT TEST POINTS
To measure * use test points
plant voltage * pv - pvr
plant current * pc - pcr
rectifier current:
rectifier 1 * rc1 - rr
rectifier 2 * rc2 - rr
rectifier 3 * rc3 - RR

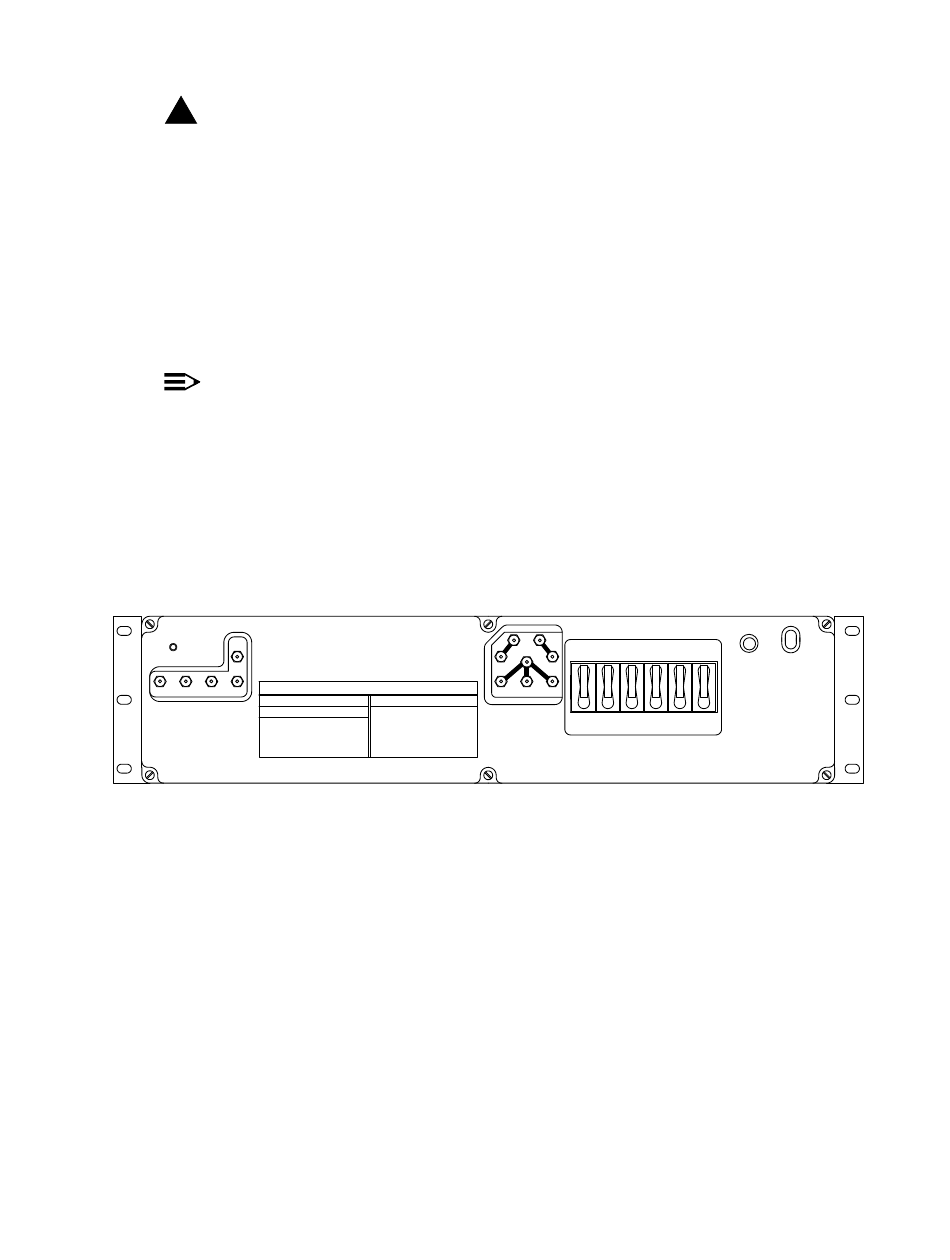

Figure 3 – Control & Distribution Panel
PC
PV
RR
PVR PCR
RC1 RC2 RC3
CB1 CB2 CB3 CB4 CB5
Power Up: DLP-535
Page 7 of 8
normal
bat on low volt
discharge disconnect
Control & distribution
CB6
ed-83114-30
