Sim Card - Webdyn WebdynSunPM User Manual

The concentrator has a female SMA connector available at the front of the product to connect
a modem antenna. The product is delivered with an angled SMA antenna taped to the back of
the box. It can be replaced with other compatible antennas.
If the WebdynSunPM concentrator is installed in a metal box or in a location that
does not have proper signal reception, the use of an offset antenna is strongly
recommended.
Be careful to use an antenna compatible with the connector and frequencies used.

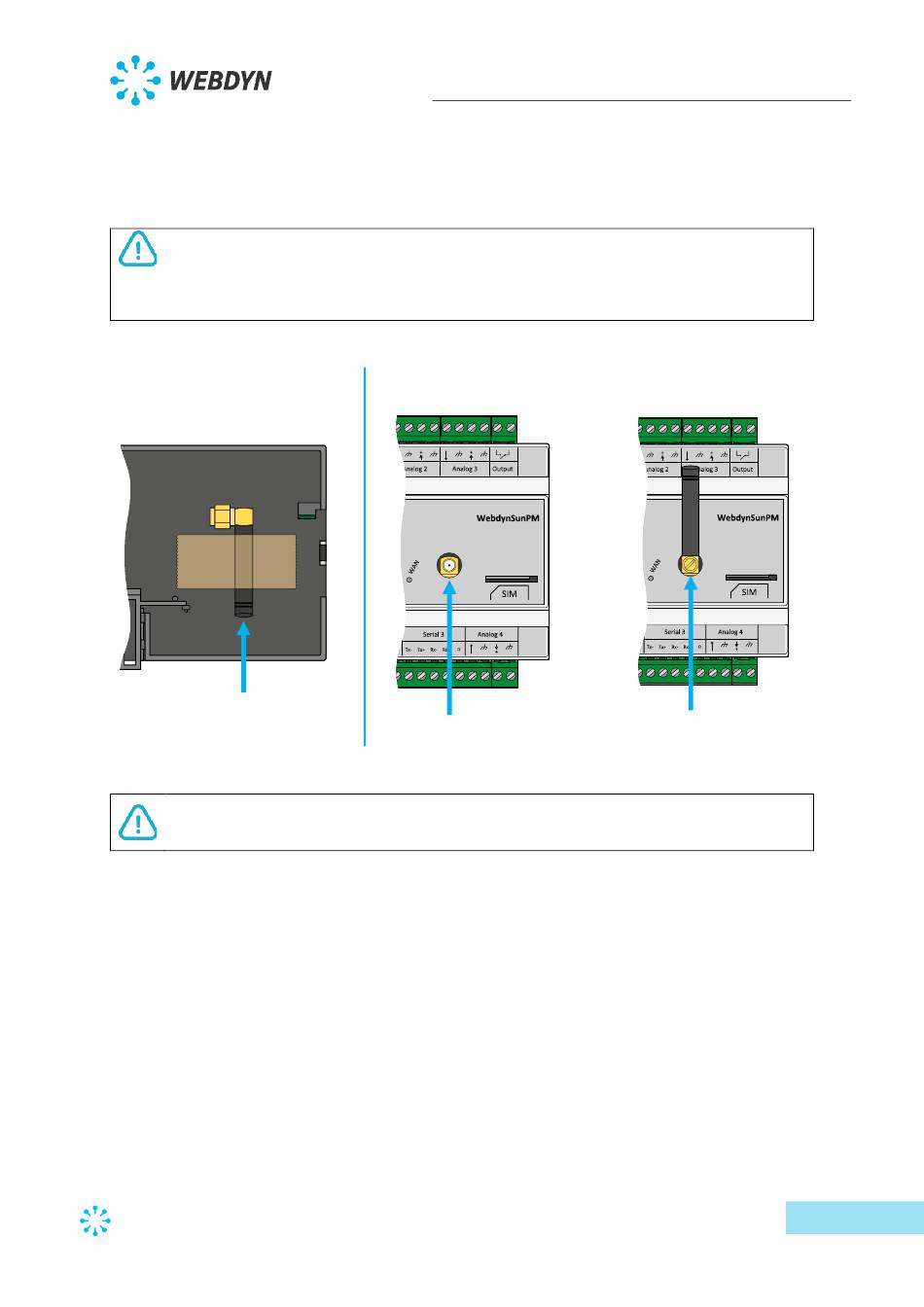

Top view
Angled SMA antenna for
the modem
End users must make sure their installation using remote antennas meets applicable
EMC standards.

2.4.2.2 SIM card

To use the 2G or 3G modem connection and allow the concentrator to communicate with the
remote server or servers, a mini SIM format SIM card must be inserted in the SIM card housing
on the front of the concentrator.
The concentrator is compatible with all market operators as well as with all mini SIM 2FF 25 x
15mm format SIM cards.
To guarantee proper WebdynSunPM operation, insert a SIM card with the following
specifications:
• Possibility of sending and receiving text messages (preferable but not essential),
• 2G or 3G communication included.
