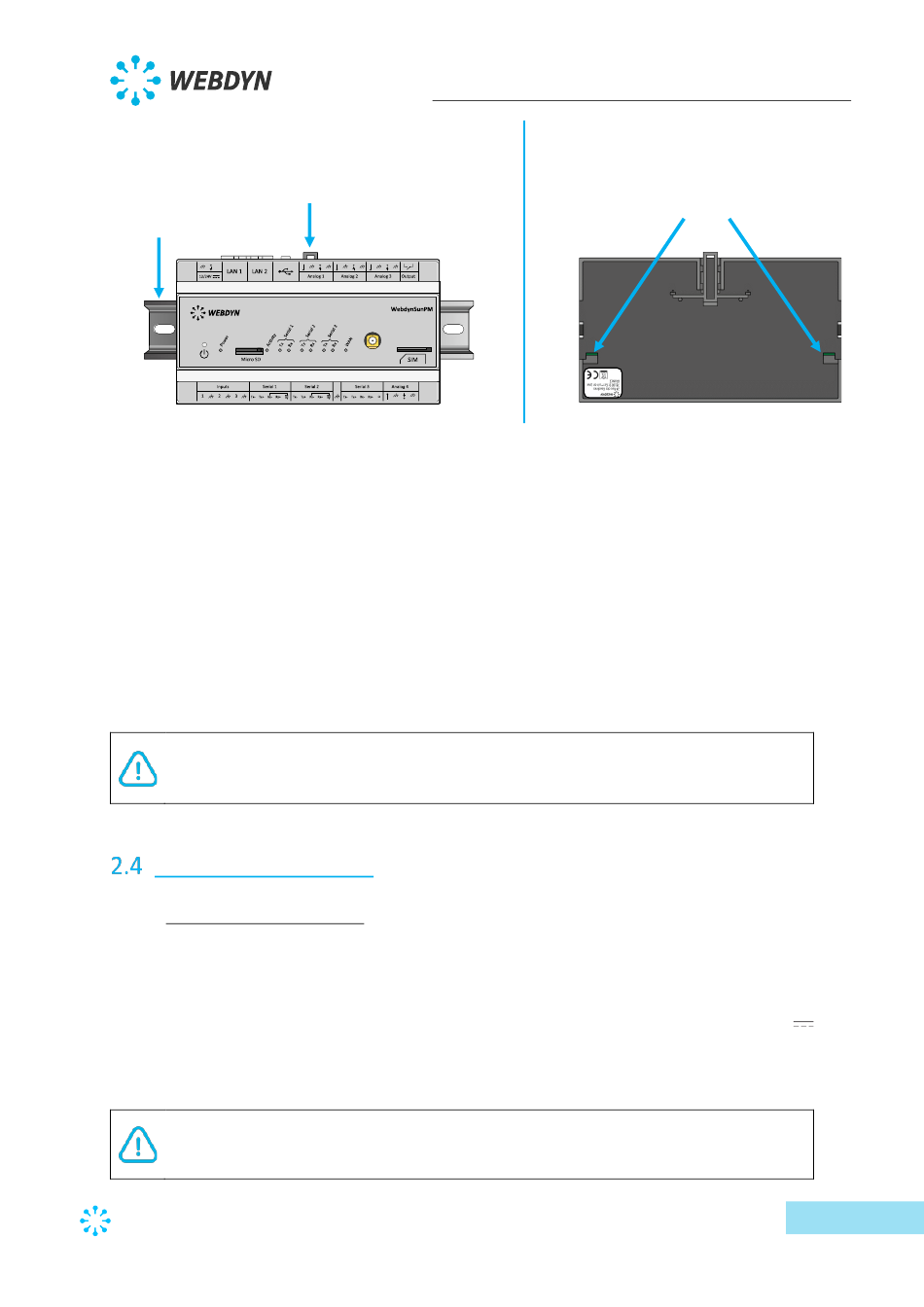

Top view
Locking lever
DIN rail
Follow the steps below to fix the concentrator to a DIN rail:
1. Tilt and position the concentrator's lower grooves (see underside view) onto the
bottom of the DIN rail.
2. Push the concentrator to pivot it upwards.
3. Push on the concentrator until it clicks into place.
Follow the steps below to remove the concentrator from a DIN rail:
1. Raise the locking lever (see top view) on the concentrator to be removed to the high
position. This opens the locking mechanism and makes it possible to remove the
concentrator.
2. Pivot the concentrator downwards.
Before fixing or removing the concentrator, make sure:
• To cut the power supply to the equipment.
• Remove the antenna taped to the back of the box.

Interface description

2.4.1 Product power supply

2.4.1.1 External power supply

The WebdynSunPM concentrator can be powered using 12V or 24V direct current. The power
supply is implemented using the 2 point unpluggable terminal block marked "12/24V"
located at the top left of the concentrator.
End users must use a CE certified power supply of less than 15 watts. The distance
between the power supply and the product must not exceed 3 metres. End users
must make sure their installation meets applicable EMC standards.
Version 2.05
préliminaire
USER MANUAL – WebdynSunPM
Underside view
Inner groove for DIN rail.
