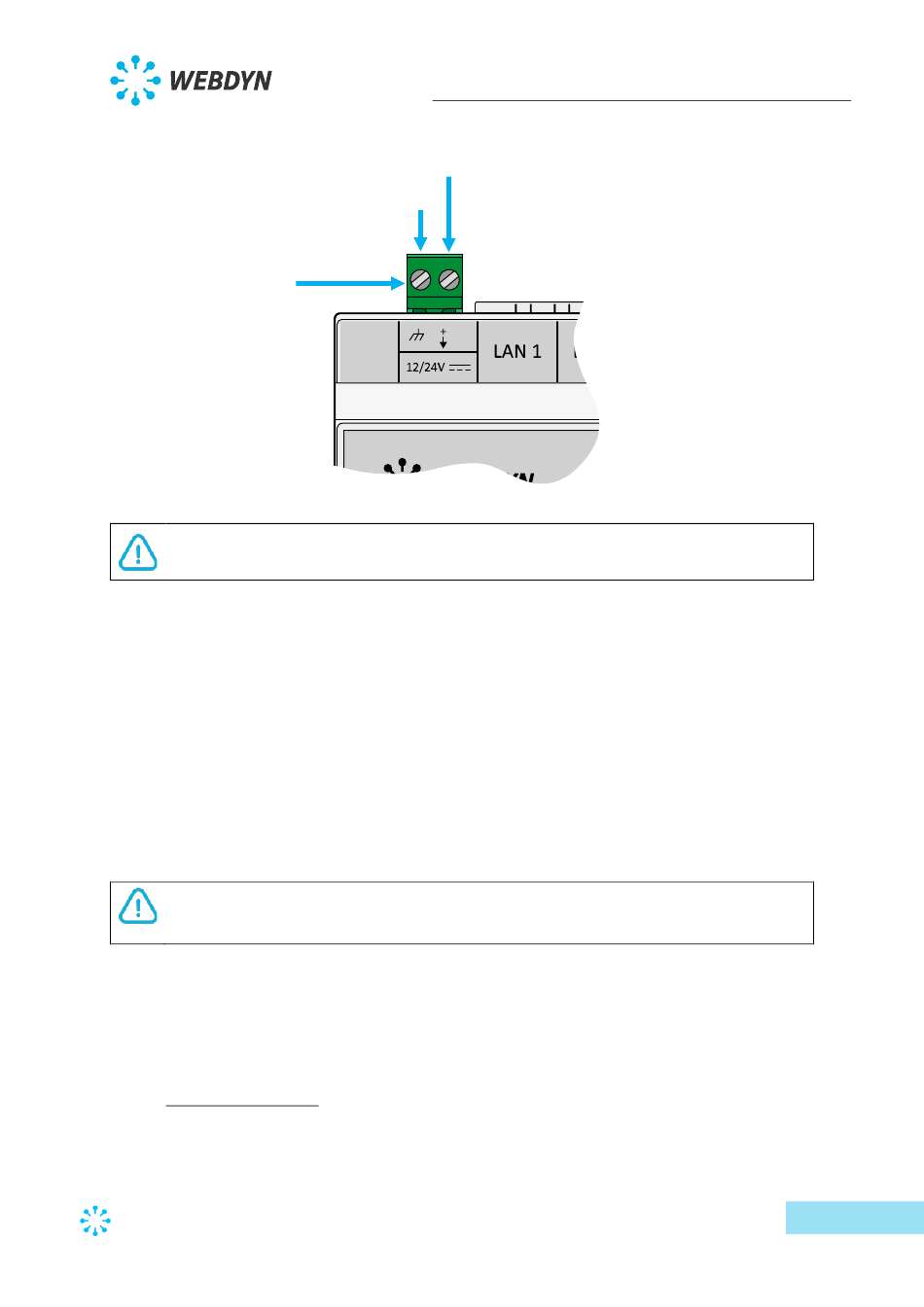

2-point terminal
block for the power
supply
Make sure the power supply wires are connected to the proper terminals.
Product power consumption varies depending on its configuration. Make sure the power
supply used can provide at least 15 Watts of power.

2.4.1.2 Battery

The WebdynSunPM concentrator has a battery that is used to send an alarm to notify of a
power failure fault and switch the product to safety mode until the power supply returns. The
battery recharges on the concentrator's external power supply.
The battery may not have time to recharge if the concentrator suffers too frequent
or long power cuts.
If the battery status does not allow for the immediate issue of the power loss alarm, it will be
sent when the concentrator reboots.

2.4.2 Cellular Network

The WebdynSunPM concentrator has a built-in 2G and 3G network compatible modem.

2.4.2.1 Antenna
