5
Installation
5.1
Mounting
The compact SiteDialer occupies only half the width of a standard rack unit. 19" rack ears are supplied
with the SiteDialer. The SiteDialer mounts in a 19" or 23" rack, and can be mounted on the right or left,
or rear mount locations, as shown below.

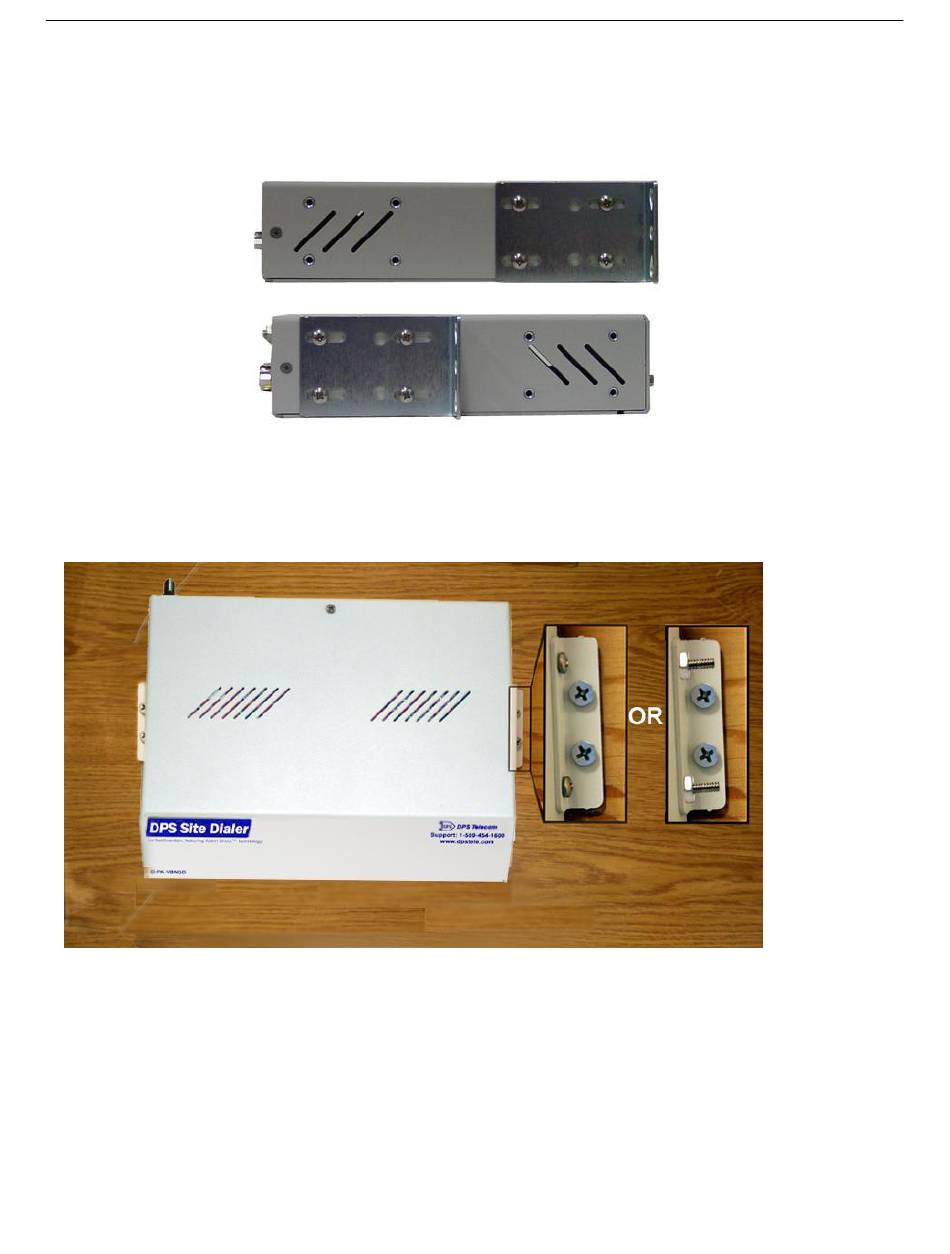

Fig. 5.1.2. Use the included wall mount bracket to mount the SiteDialer vertically on the wall.
Wall-Mounting Instructions
The rack ears can be rotated 90° for wall mounting or 180º for other mounting options (not shown).
1. Depending on your order options, you will can attach wall-mount flanges to both sides of the unit in
one of two ways:
a. Place the flange over the protruding screws and fasten it to the 3/8" hex nuts provided.
b. OR Fasten the flange to the SiteDialer with two of the 6/32 screws provided. (NOTE: Screws
longer than those provided may contact the internal components of the unit, adversely affecting its
normal operation.)
Fig 5.1.1. The SiteDialer can be flush or rear-mounted
7
