4
4
Installation
4.1
Tools Needed
To install the Remote Status Panel, you'll need the following tools:
Phillips No. 2 Screwdriver
4.2
Wall Mounting

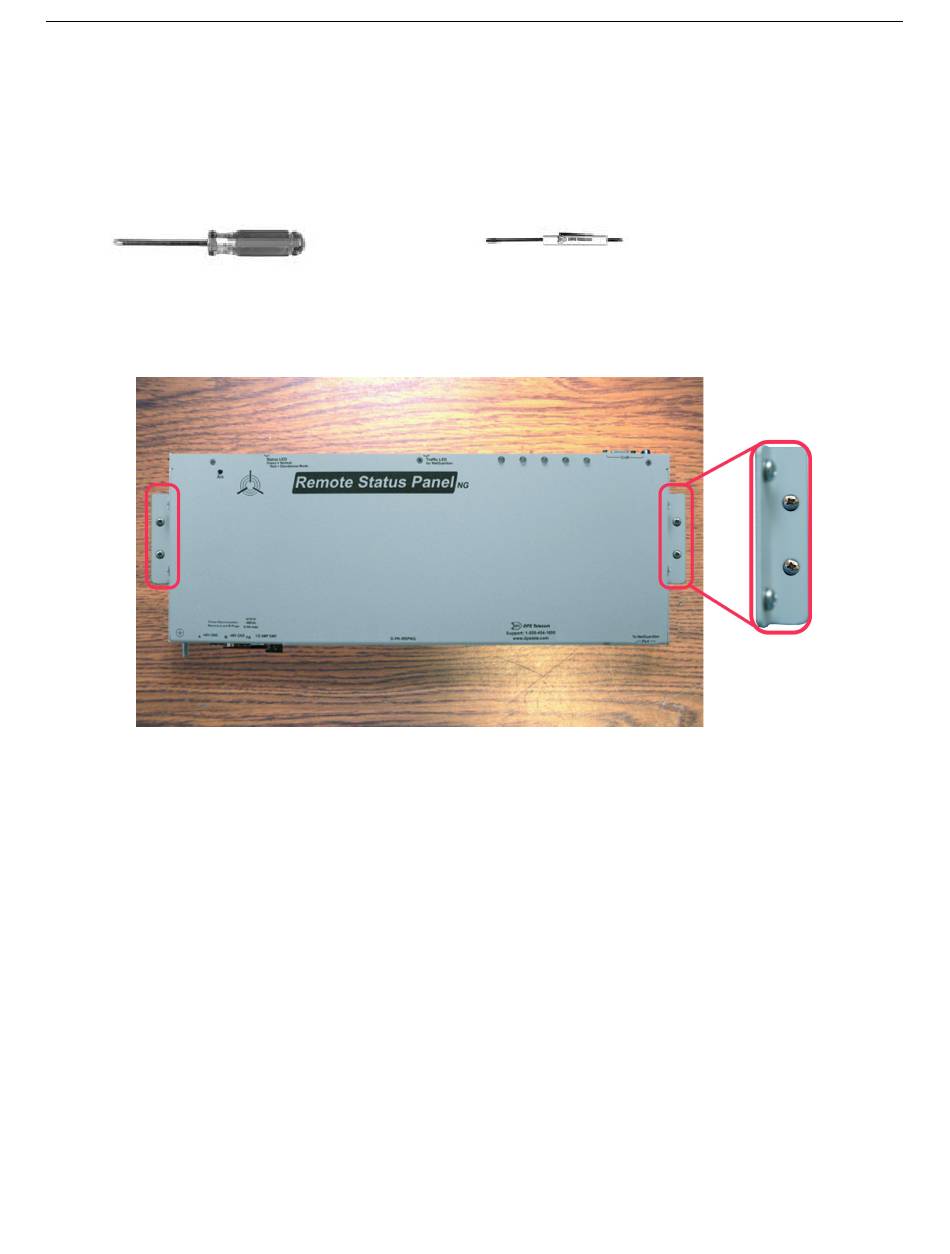

The Remote Status Panel is wall mounted using the 2 wall mount brackets supplied with the unit. Attach the
brackets in the wall mount locations shown here.
The Remote Status Panel can be flush or rear-mounted
Small Standard No. 2 Screwdriver
