8
2. After flanges have been attached to the SiteDialer, mount the unit in the desired location with two
screws through each flange.

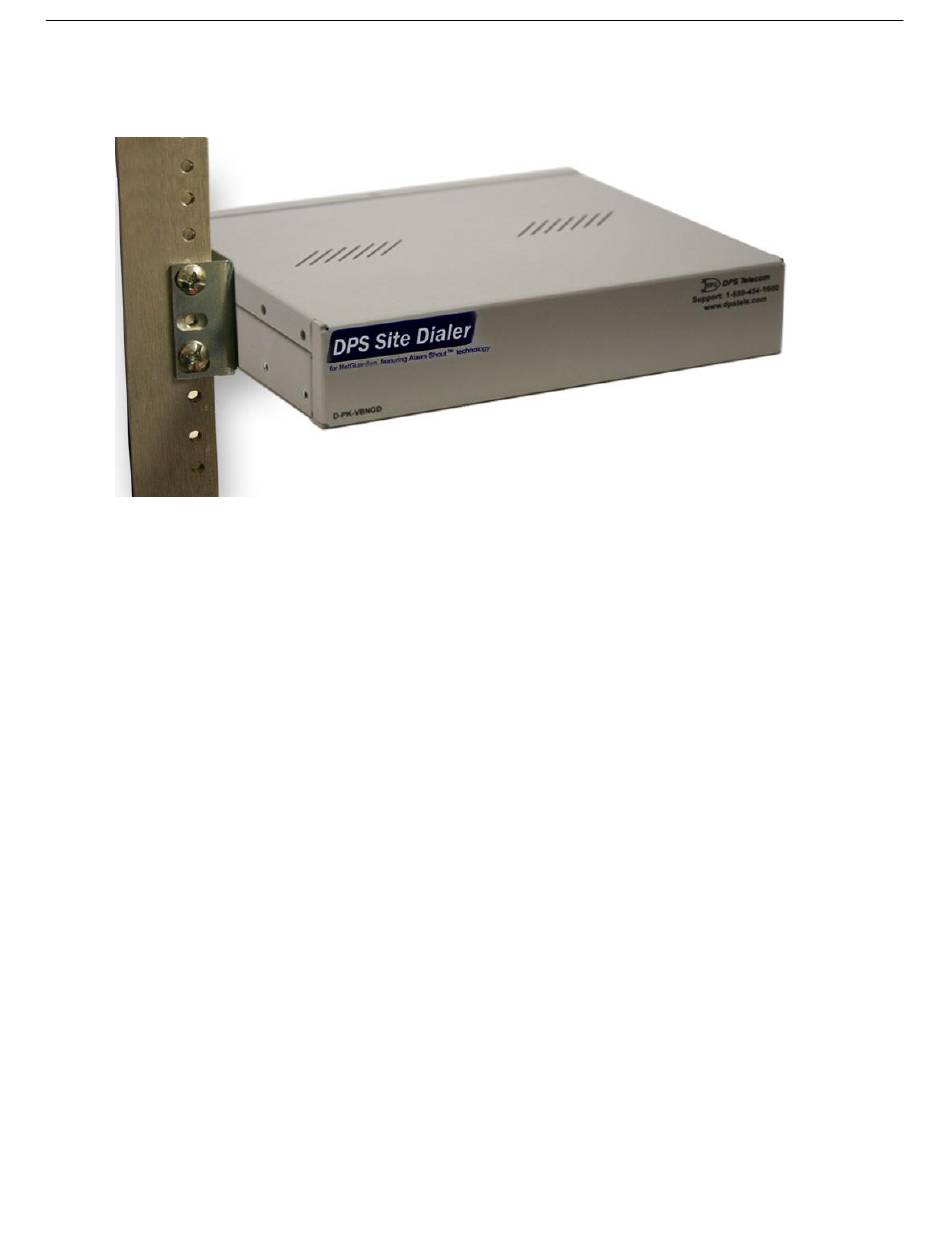

Fig. 5.1.3. The SiteDialer also mounts on your 19" or 23" equipment racks.
Rack-Mounting Instructions
The SiteDialer mounts onto one side of a 19" or 23" rack using the provided rack ear for either size. The
ear can be rotated 180 degrees during installation to adjust the position of the unit relative to the rack.
Attach the appropriate ear to the rack in the desired location.
