Quick Start: Assigning your SiteDialer's Ethernet
Settings
To incorporate the SiteDialer into your network, you must configure its ethernet port(s) via the unit's TTY
interface. To access the TTY interface, you will establish a either a serial craft port connection or a LAN
connection that mimics the SiteDialer's default network settings.
Once you save your SiteDialer's ethernet settings and reboot the unit, you can access it over LAN and
continue databasing it using the Windows-based SiteDialer Edit program.
For more information about the SiteDialer Edit application, see the appropriate user manual.
6.1

...via Craft Port

1. The simplest way to connect to the SiteDialer is over a physical cable connection between your
PC's COM port and the unit's craft port. Note: You must be connected via craft port or Telnet to
use the TTY interface. Make sure you are using the straight through (1 to 1) Male to Female DB9-
DB9 download cable provided with your SiteDialer to make a craft port connection.
To access HyperTerminal using Windows:
2. Click on the Start menu > select Programs > Accessories > Communications >
HyperTerminal.
3. At the Connection Description screen, enter a
name for this connection. You may also select an
icon. The name and icon do not affect your ability to
connect to the unit.

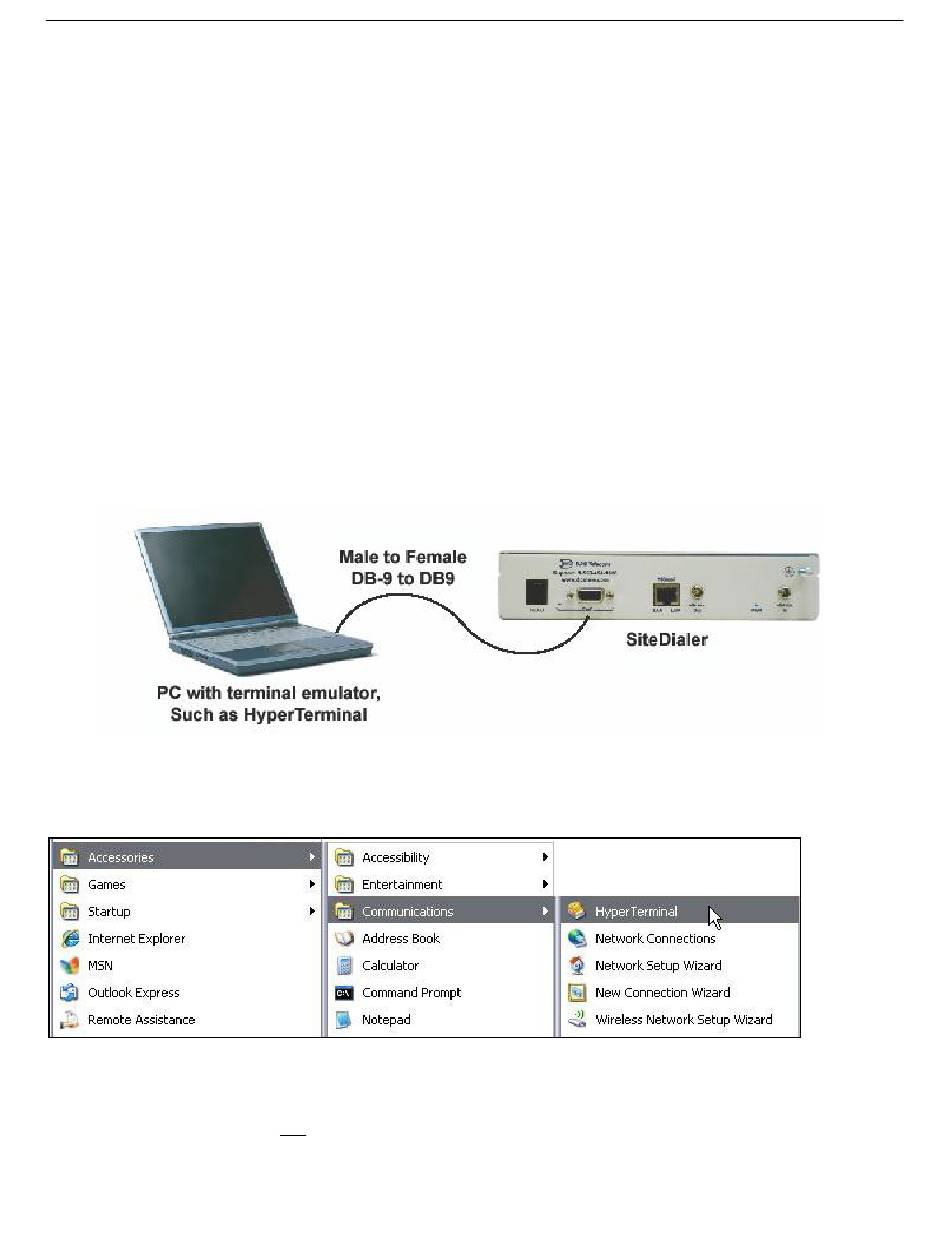

Fig. 7.1.1. Connection through Craft Port
Fig. 7.1.2. Open HyperTerminal Program
4. At the Connect To screen, select COM1
(the most commonly used) from the drop
down menu and click OK.
