5.2

SiteDialer Back Panel

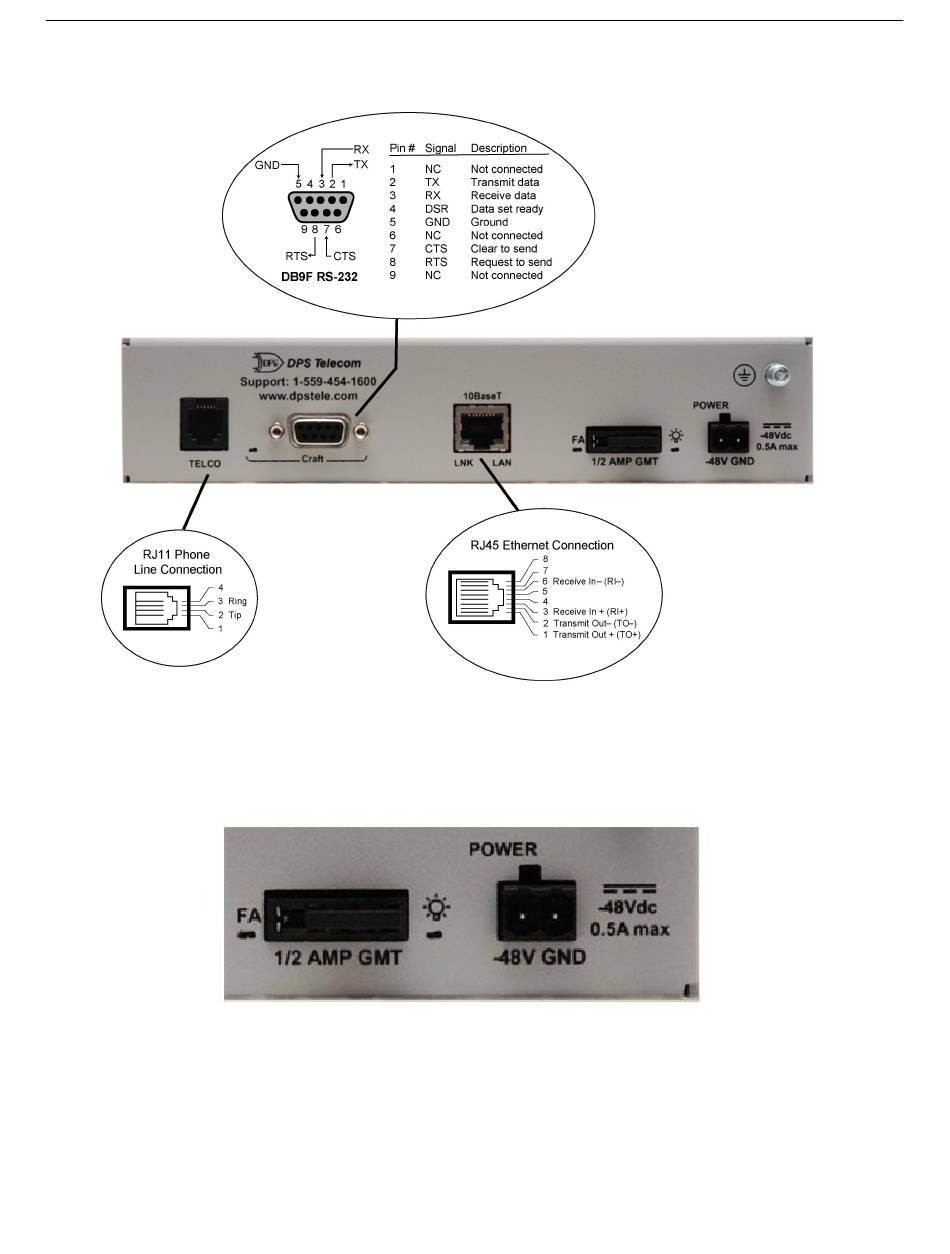

Fig. 5.2. Pinouts for the SiteDialer back panel connections

5.2.1

Power Connection

Fig. 5.2.1.1. Power connectors and fuse.

The SiteDialer has one screw terminal barrier plug power connectors, located on the right side of the

back panel.
