Hardware Installation
3.1
Site Preparation

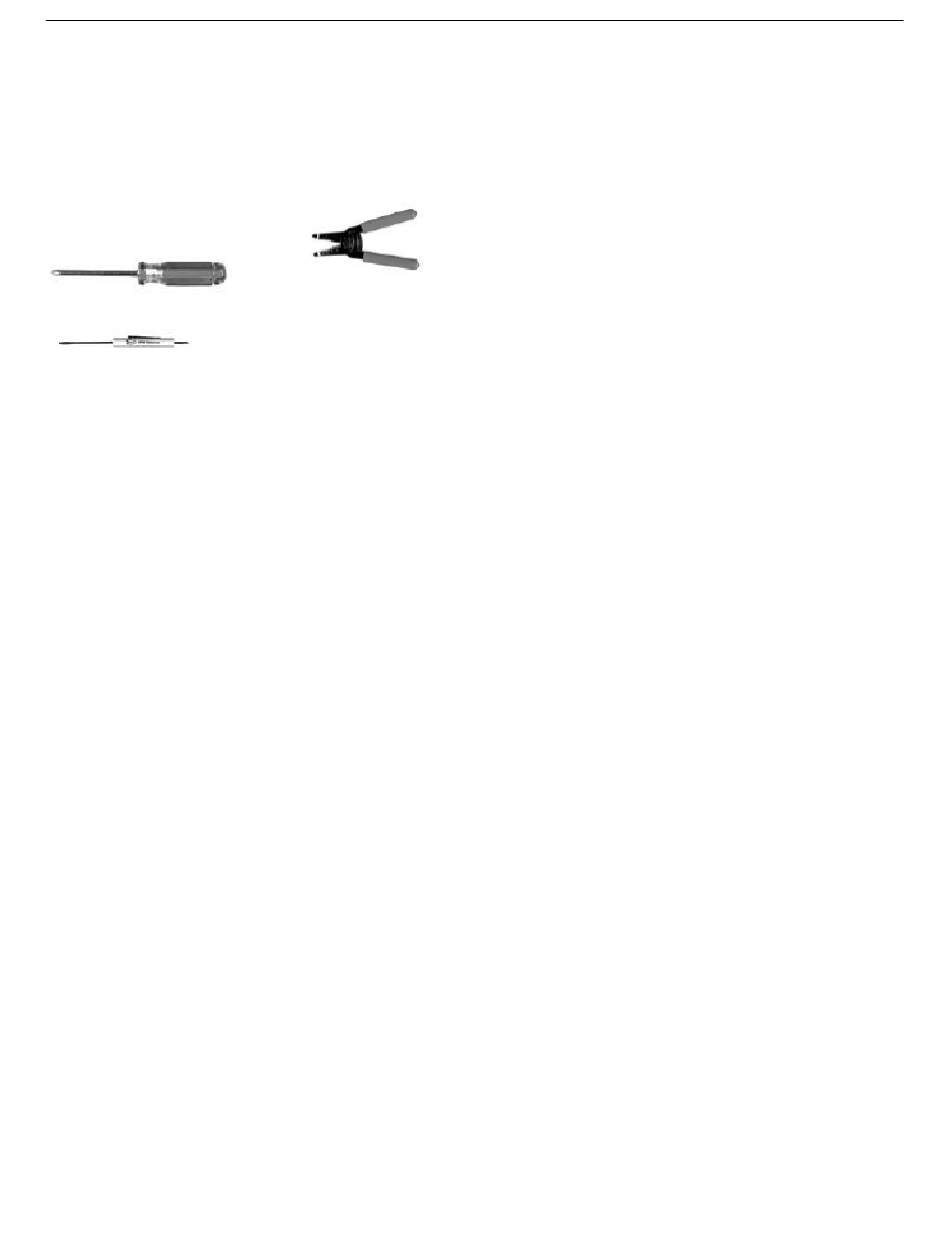

Tools needed:
Phillips screwdriver
Small standard No.2
screwdriver (1/16" for screw-lug
connectors)
Materials needed:
• 1/2" conduit
Precautions
• Pull GMT fuse before connecting ECU power feed.
• Always observe electrostatic discharge (ESD) precautions.
3.2
Installation Overview
1. Mount the ECU and the Keypad and/or Proxy Reader.
2. Connect power to the ECU.
3. Connect communication lines between the ECU, LAN, and Keypad and/or Proxy Reader.
4. Set the ECU IP address via TTY interface.
5. Customize ECU LAN settings via the Web Browser Interface
6. Provision T/Mon with the appropriate information. (See the BAS software module in the T/MonXM user
manual for more information)
