ADDENDUM: Aegis II Communication Driver Card
Aegis II
Industrial Communication Driver Card
"Com Module"

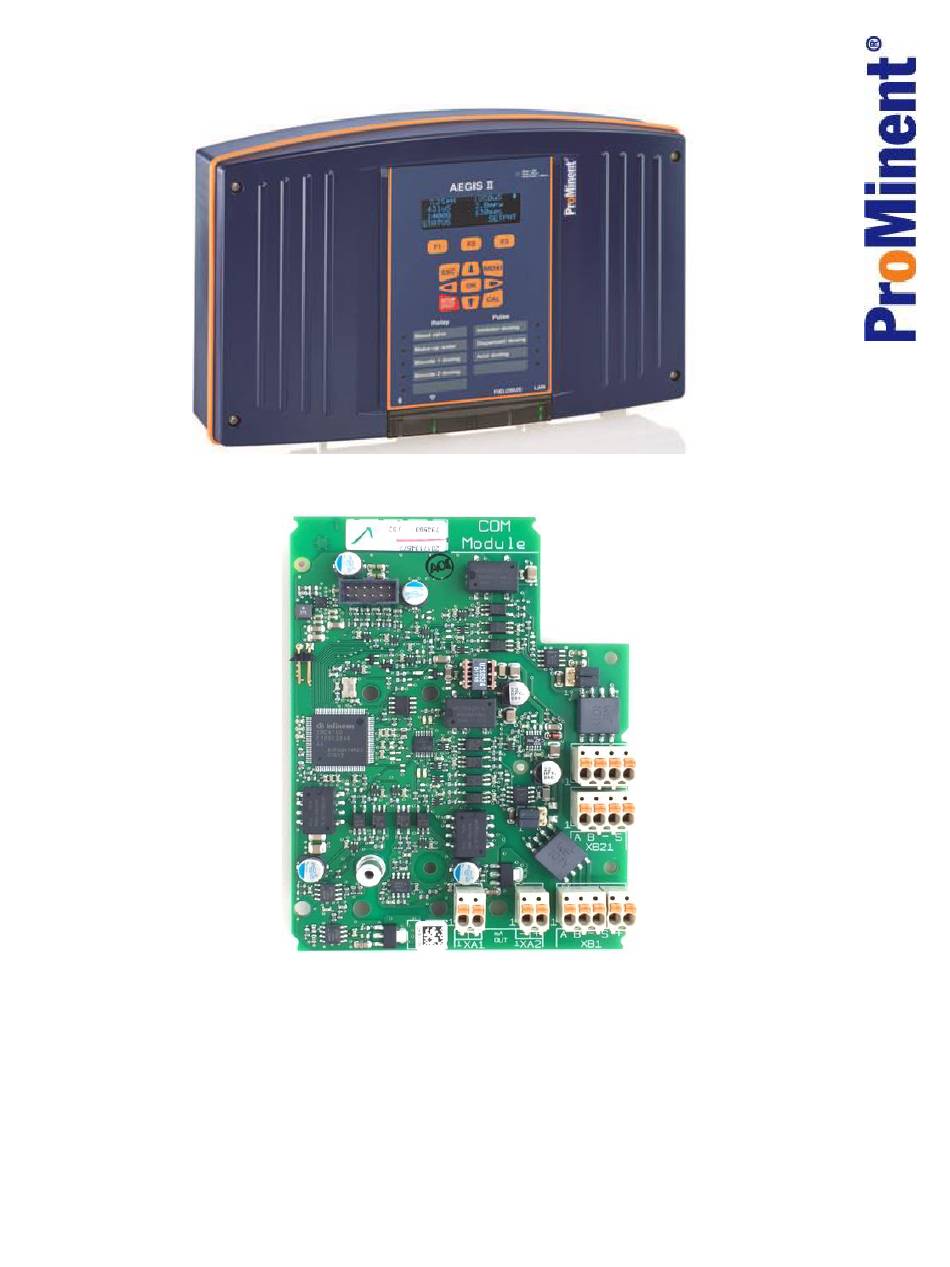

Communication Driver Card Part Number: 734593
This document contains general information regarding the implementation of the ProMinent Industrial
Communication Card, "Com Module" into the Aegis II Controllers.
Page 1 of 30
Revision D
Part Number 1079218

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aegis II and is the answer not in the manual?

Questions and answers

Related Manuals for ProMinent Aegis II

Summary of Contents for ProMinent Aegis II

  • Page 1 Aegis II Industrial Communication Driver Card “Com Module” Communication Driver Card Part Number: 734593 This document contains general information regarding the implementation of the ProMinent Industrial Communication Card, “Com Module” into the Aegis II Controllers. Page 1 of 30 Revision D...
  • Page 2 9. Gateway Enclosure kits 10. Replacement Parts Description The ProMinent Industrial Communication Driver card (Com Module) provides the Aegis II with the ability to interface with most industrial communication protocols thus providing the customer with live I/O values. The Com Module includes:...
  • Page 3 Gateway and our communication driver. Multiple Protocols The following chart list Gateways available through ProMinent. A link is provided in the event you need a Gateway manual. Other Gateways are available from electronics vendors. These gateway part numbers do not include complete kits.
  • Page 4 Com Module Installation From the factory, the Com Module will be installed in expansion slot 3. This card will not operate in expansion slots 1 or 2. A plastic screw secures the card in place. The Com module may or may not have an optional driver card attached.

  • Page 5: Component Function

    When a Com Module is added to expansion slot #3, the dual 4-20mA outputs acquire the identification letters I and J. These are the letter assignments for any card installed in this slot. If the dual 4-20mA input driver is installed onto the Com Module, it is represented by the letters K and L.
  • Page 6 Connect up to 120 communication driver card slaves to one master. The master can be the plant Modbus RTU network or any number of Gateways. Currently, ProMinent has six gateways in stock that provide conversion to 3 protocols; Modbus TCP (Ethernet), BACnet IP (Ethernet) and BACnet MSTP (Serial). These gateways are available with or without UL approval.
  • Page 7 Gateway devices require a separate DC power supply. See instructions accompanying the Gateway. The next few illustrations depict ADFweb brand, non-UL approved gateways which convert the Com Module Modbus RTU Slave to another Protocol. The connection to the Com card is via the Modbus Master serial port on the Gateway.
  • Page 8 ADFweb BACnet IP (Ethernet) Slave to Modbus Master. Not UL approved. (Description explanation: ‘BACnet IP Slave’ is the Gateway’s connection to the plant master via Ethernet. ‘Modbus Master’ describes the Gateway’s serial master to the communication card slave.) Gateway terminal to Com card: A+ to XB21 pin 1 (A), B - to pin 2 (B), Common (S) to pin 3 (Shown as a dash). To load Configuration please refers to manufacture instruction manual MN67671_ENG section UPDATE DEVICE:”...
  • Page 9 ADFweb BACnet MSTP Slave to Modbus Master. (Serial) Not UL approved. (Description explanation: ‘BACnet MSTP Slave’ is the Gateway’s connection to the plant master via Serial wiring. ‘Modbus Master’ describes the Gateway’s serial master to the communication card slave.) Gateway terminal to Com card: A+ to XB21 pin 1 (A), B - to pin 2 (B), Common (S) to pin 3 (Shown as a dash). To load Configuration please refers to manufacture instruction manual MN67671_ENG section UPDATE DEVICE:”...

  • Page 10: Daisy Chain Example

    Daisy Chain Example: Second controller with Comm Controller Modbus RTU Comm Module module To Customer Modbus-TCP Master Page 10 of 30...
  • Page 11 The RTA brand, UL approved models are shown here. Refer to manufacturer instructions for more detail. RTA Modbus TCP (Ethernet) Slave to Modbus Master. UL approved. (Description explanation: ‘Modbus TCP Slave’ is the Gateway’s connection to the plant master via Ethernet. ‘Modbus Master’...
  • Page 12 RTA BACnet IP (Ethernet) Slave to Modbus Master. UL approved. (Description explanation: ‘BACnet IP Slave’ is the Gateway’s connection to the plant master via Ethernet. ‘Modbus Master’ describes the Gateway’s serial master to the communication card slave.) Wiring the gateway terminal to Com card: +Tx to XB21 pin 1 (A), -Tx to pin 2 (B), Com to pin 3 (Shown as a dash). To load Configuration please refers to manufacture instruction manual 460MMBS-NNA1_Userguide.
  • Page 13 RTA BACnet MSTP (Serial) to Modbus Master. UL approved. (Description explanation: ‘BACnet MSTP Slave’ is the Gateway’s connection to the plant master via Serial wiring. ‘Modbus Master’ describes the Gateway’s serial master to the communication card slave.) Wiring the gateway terminal to Com card: +Tx to XB21 pin 1 (A), -Tx to pin 2 (B), Com to pin 3 (Shown as a dash). To load Configuration please refers to manufacture instruction manual 460MMBMS-NNA4_Userguide.

  • Page 14: Gateway Settings

    Function Code: Read-Holding-Register 0x03 (3) Note: In order for your customer to have access to all Modbus registers in the Aegis II controller, you will need to have a Modbus driver card with firmware version 1.0.23.0 or newer and Aegis II controller firmware 18.04.14.00 (2018/April/14) or newer.

  • Page 15: Analog Inputs/Outputs

    The Inputs and Outputs Analog Inputs/Outputs: Register Address Register Number Parameter Format (Type) Access Level Byte order info (Starting from 0) (Starting from 1) R= Read W = Write Actual Measure FLOAT32 BADC Value on ‘A’ input Actual Measure FLOAT32 BADC Value on ‘B’...

  • Page 16: Digital Inputs

    Digital Inputs: Register Address Register Number Parameter Format (Type) Access Level Byte order info (Starting from 0) (Starting from 1) R= Read Input ‘O’ FLOAT32 BADC Contact: Closed=1, Opened=0 Water meter/turbine: Volume Input ‘P’ FLOAT32 BADC Contact: Closed=1, Opened=0 Water meter/turbine: Volume Input ‘Q’...
  • Page 17 Alarms: Register Address Register Number Parameter Format (Type) Access Level Byte order info (Starting from 0) (Starting from 1) R= Read Input ‘A’, High Alarm FLOAT32 BADC Input ‘A’, Low Alarm FLOAT32 BADC Input ‘B’, High Alarm FLOAT32 BADC Input ‘B’, Low Alarm FLOAT32 BADC Input ‘C’, High Alarm...
  • Page 18 Setpoints: SETPOINTS ONLY WORK IF “SET FEED MODE” IS SELECTED AS Setpoints only work if “SET FEED MODE” is selected as a “SENSOR CONTROL” OR “WATER METER” Register Address Register Number Parameter Format (Type) Access Level Byte order info (Starting from 0) (Starting from 1) R= Read R 1 - high set point...
  • Page 19 S_off 0x0010 Actively Turned OFF by Interlock, Lockout, Alarmed (reference output states for cause) S_stopped 0x0020 HOA set to STOP // not applicable to Aegis II S_manual 0x0040 HOA set to MANUAL // not applicable to Aegis II S_disconn 0x0080...

  • Page 20: System State

    Output R1 to R5, P6 to P9 is blocking another relay C_oxidant 0x00004000 one of assist, pH lockout or alt. control events is active // not applicable to Aegis II C_delayed 0x00008000 User set delay on flow switch // not applicable to Aegis II...
  • Page 21 Gateway Enclosure Kits Kits include the gateway, a 24VDC power supply, serial terminations mounted in a Nema 4X enclosure. BACnet MSTP Converter Terminal Box Kit part number 1094290 includes the ADFweb (not UL approved) BACnet MSTP Slave to Modbus Master gateway, part number 1092945. See page 9 for gateway information. Kit part number 1094291 includes the RTA (UL approved) BACnet MSTP Slave to Modbus Master gateway, part number 1092946.
  • Page 22 MODBUS TCP Converter Terminal Box Kit part number 1094286 includes the ADFweb (not UL approved) Modbus TCP Slave to Modbus Master gateway, part number 1092941. See page 7 for gateway information. Kit part number 1094288 includes the RTA (UL approved) Modbus TCP to Modbus Master gateway, part number 1092940.
  • Page 23 BACnet IP Converter Terminal Box Kit part number 1094287 includes the ADFweb (not UL approved) BACnet IP Slave to Modbus Master gateway, part number 1092943. See page 8 for gateway information. Kit part number 1094289 includes the RTA (UL approved) BACnet IP Slave to Modbus Master gateway, part number 1092942.

  • Page 24: Replacement Parts

    Replacement Parts The following list includes all parts necessary to build a complete enclosure, including the power supply, but does not include the gateway. Gateway part numbers below. ProMinent Gateway part numbers PFC Part # Description 1092940 Modbus TCP Slave / Modbus Master – Converter UL Certified (RTA brand)

  • Page 25: Technical Support

    Technical Support If the communication link is not working, refer to this checklist. Try to swap the serial connection Are the wires connected to the correct terminals? Do the default settings listed on page 14 agree with the controller’s System Configure page? Do these settings agree with the Gateway or other Master settings? Addresses must not be the same If using a gateway, did you load a configuration into the gateway according to the manufacturer’s instruction?
  • Page 26 Communication Module Register Test TTL/RS485 USB dual function dual Test the Modbus registers via the Com Module on an Aegis II using a protection USB turn 485 module FT232 chip module. Converter Module Printer style USB cable You will need the converter module, a Printer USB cable and Fenix or similar software.
  • Page 27 Download Fenix Software. Use this link: https://sourceforge.net/projects/fenixmodbus/?source=typ_redirect Press the Green Download button. You may need IT permission to install the Fenix program on your company laptop. Check with your company IT department! Connect as shown. Use the Printer style USB cable to connect the converter to your PC.
  • Page 28 Fill in the project page. Press Save. Create a directory to store your project. Ex: C:\Users\peters\Documents\Controllers\Software\Fenix 3.0.8\Projects and supply a name. Page 28 of 30...
  • Page 29 Select Add Connection. Provide a name, choose Modbus Master RTU for driver name, and all settings as below. The COM port will depend on how your PC chooses this device. Use your Device Manager to look at the USB connections when you plug in the cable. Press OK. (Hint: Type ‘device manager’ in your search box) Right click on the Connection you created and select Add Device.
  • Page 30 Highlight the Connection (Office in my example) and use the start and stop icons to run/stop the data acquisition. Save your Project at this point. If you forget, all will be lost. Next session, select Open rather than New. ProMinent Fluid Controls, Inc. 136 Industry Drive Pittsburgh, PA 15275-1014 412.787.2484...
