9.) Remove 4 connecting Phillips screws from underneath the tray.
10.)Slide the tray upwards and remove the tray from the cart.
8-2-20-5 Cart Tray Installation Procedure
1) Install the tray on the cart.
2.) Reconnect 4 Phillips screws.
3.) Install the printer assembly.
•
2
EVISION

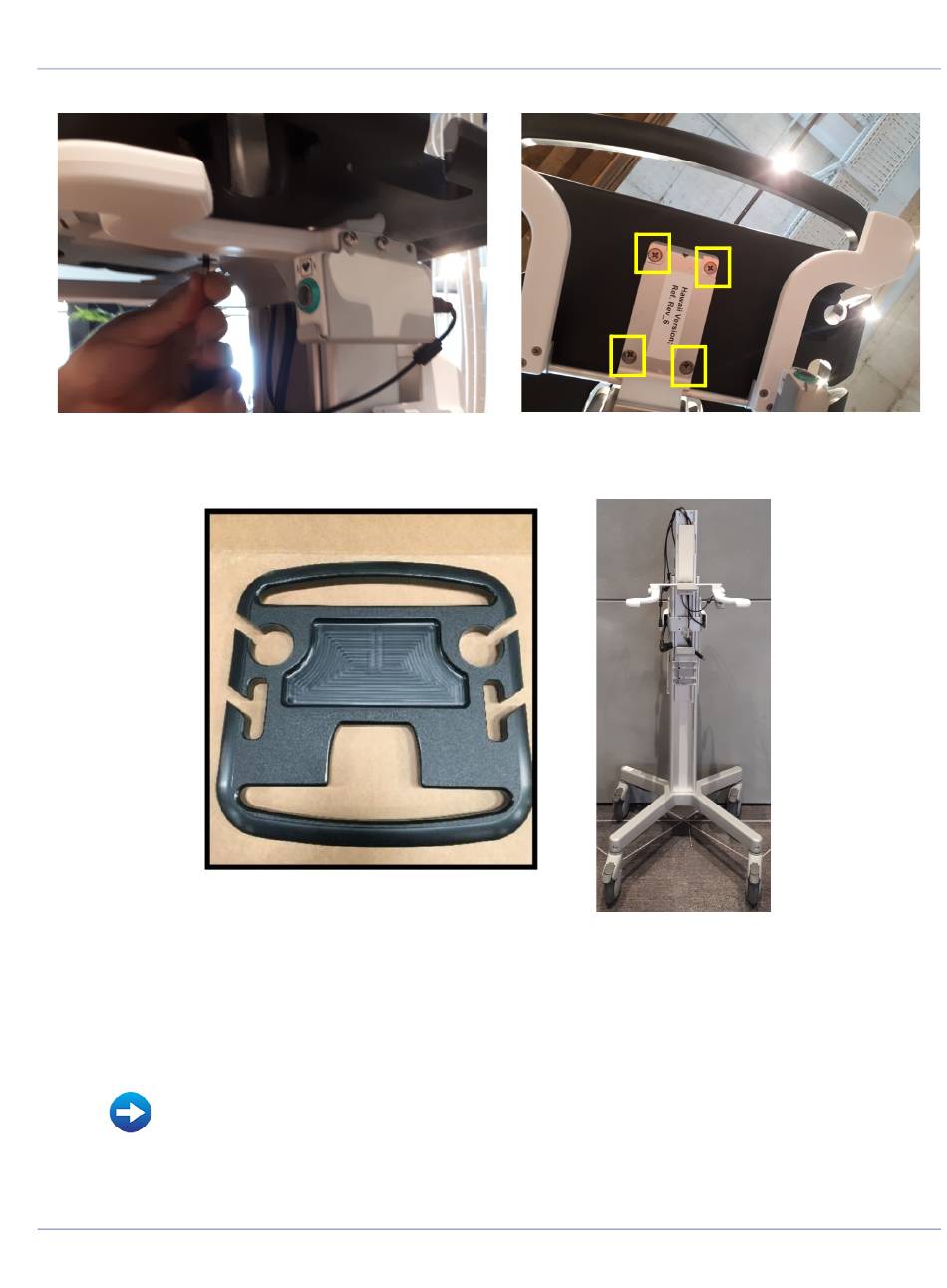

Figure 8-131 Disconnect Tray Screws
Figure 8-132 Remove Tray from Cart
Printer Assembly Installation Procedure
