Interpretation of Operating Screens

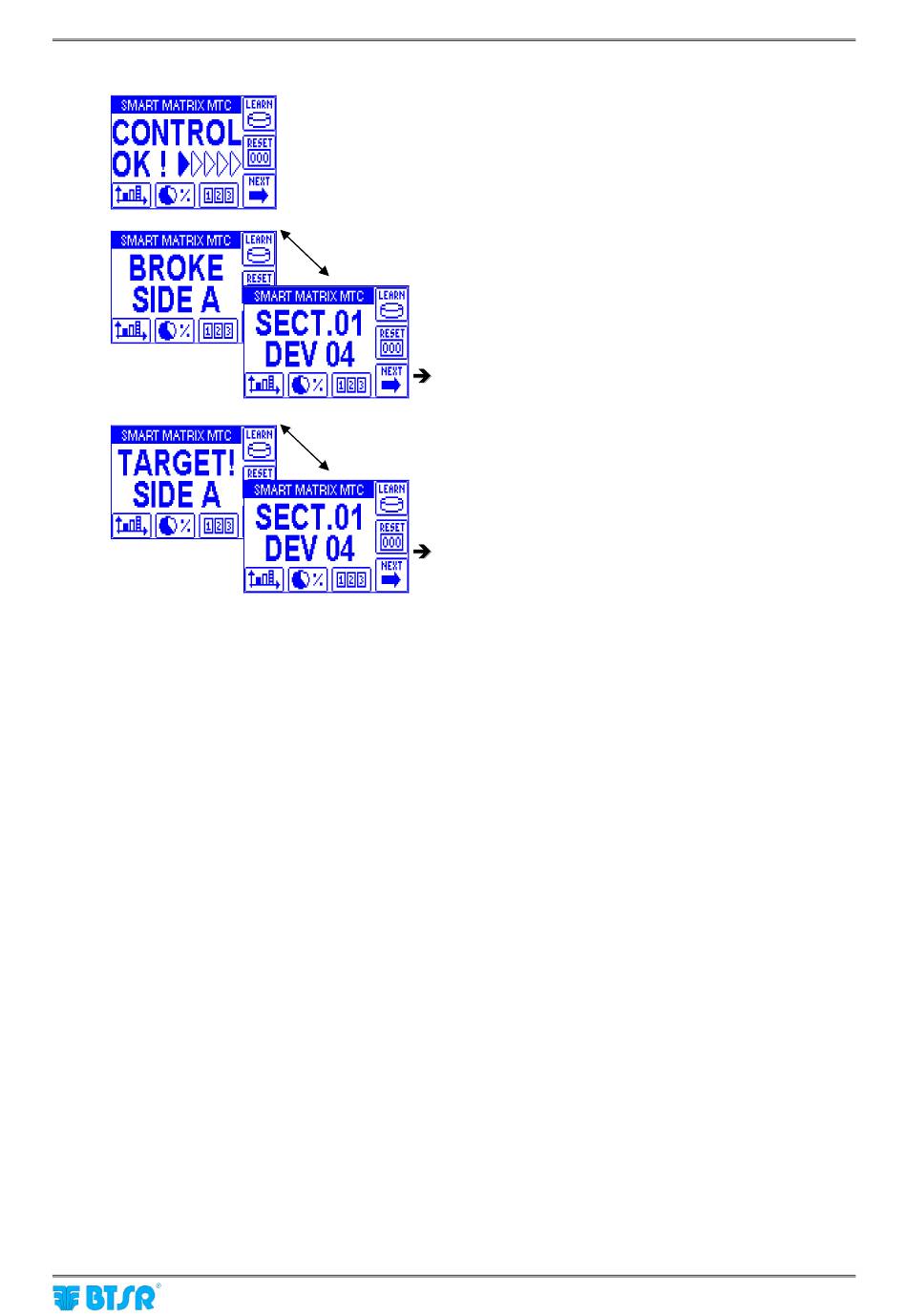

System working in Control status
No errors detected!
Broken yarn failure (BROKE) ) detected by sensor No
Alternating
04
(DEV
machine side No 1
Press to scroll the list of sensors in alarm
Target detected on sensor No 04
Alternating
section No 1 (SECT.01), machine side No 1
Press to scroll the list of sensors in alarm
SMART MATRIX MTC
SMART MATRIX MTC Operation
04) mounted on section No 1 (SECT.01),
(SIDE
A)
(DEV
04) mounted on
(SIDE
A)
2 - 7
