Unpack the Expansion Module Accessory Kit

Check that the Expansion Module kit contains the correct components.
• Back rails
• 10–32 clip nuts (used in racks with square holes)
• Assorted screws:
–
–
–
• Expansion interconnect cable with USB Type A connectors
• Label set (Module 2 through Module 10)
•

Hook and loop strap

• Pop-in rivet
• Hex key

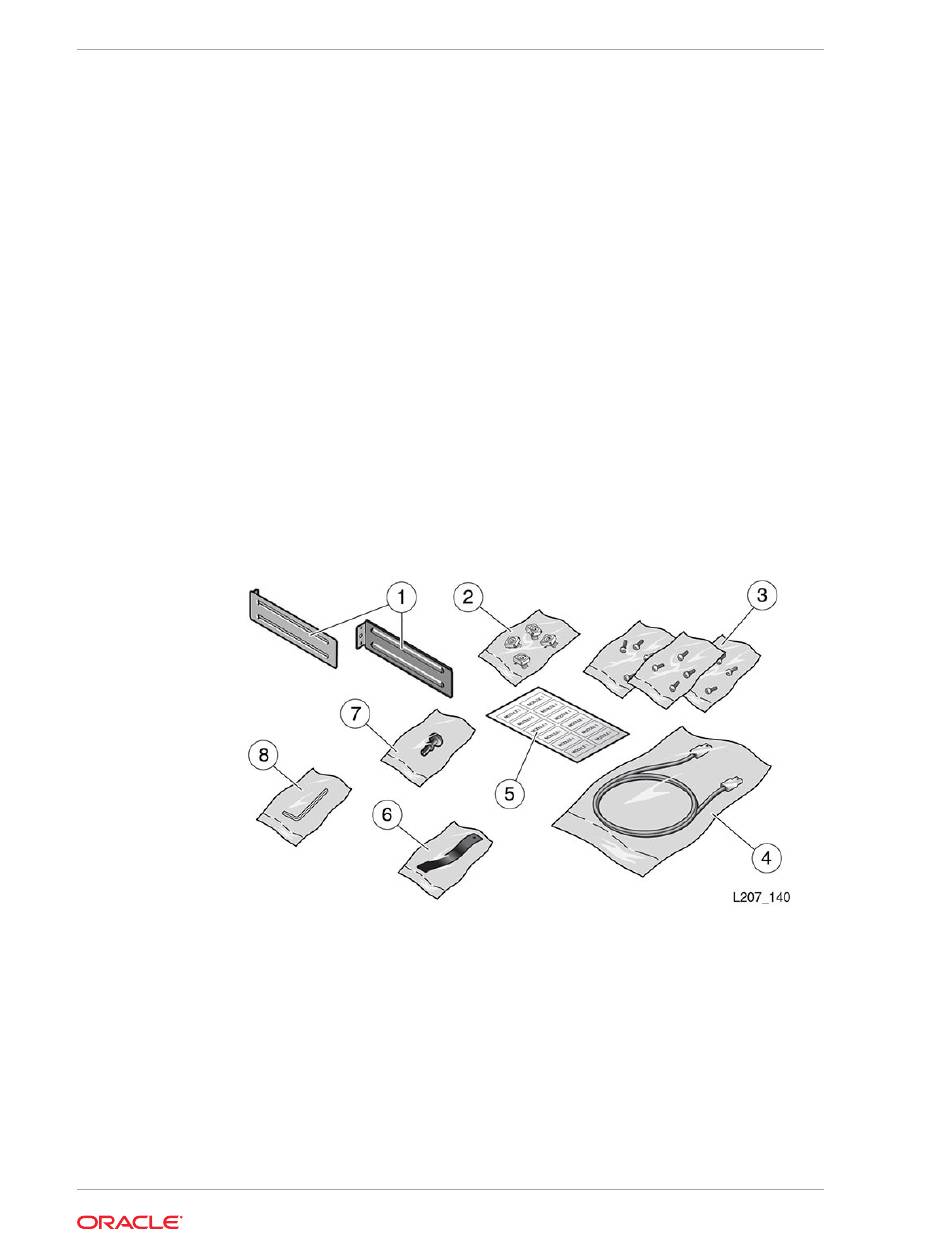

Figure 2-12
Illustration Legend:
1 - Back Rails
2 - Clip Nuts
3 - Screws (Assorted)
4 - Expansion Cable with USB Type A Connectors
5 - Module Labels
6 - Hook and Loop Strap
7 - Rivet
8 - Hex Key
10–32 X 5/8 screws (used with clip nuts and racks with 10-32 threaded holes)
M5 0.8 X 16 mm screws (used with M5 threaded hole racks)
M6 16 mm screws (used with M6 threaded hole racks)

Expansion Module Accessory Package Hardware
