Remove Operational Expansion Modules Below the Defective Module

To access the defective module, you must remove all modules below it.
WARNING:
Expansion modules weigh about 19.9 kg (43.9 pounds) with two cartridge
magazines, 30 tape cartridges, two tape drives, and two power supplies.
(Optional) Remove tape drives and power supplies to lighten the weight of the
1.
Expansion Module.
See
Remove the Phillips screws securing the Expansion Module to the front of the
2.
rack.
Grasp the module, pull it forward until the break in the flange is visible, lower the
3.
front of the module, pull it free from the module above it, and away from the rack.
Set the module down and away from the front of the rack.
4.
Remove the Phillips screws and rear rails from the module. Leave the clip nut in
5.
place.
See
Repeat until you have removed the all modules below the defective module.
6.

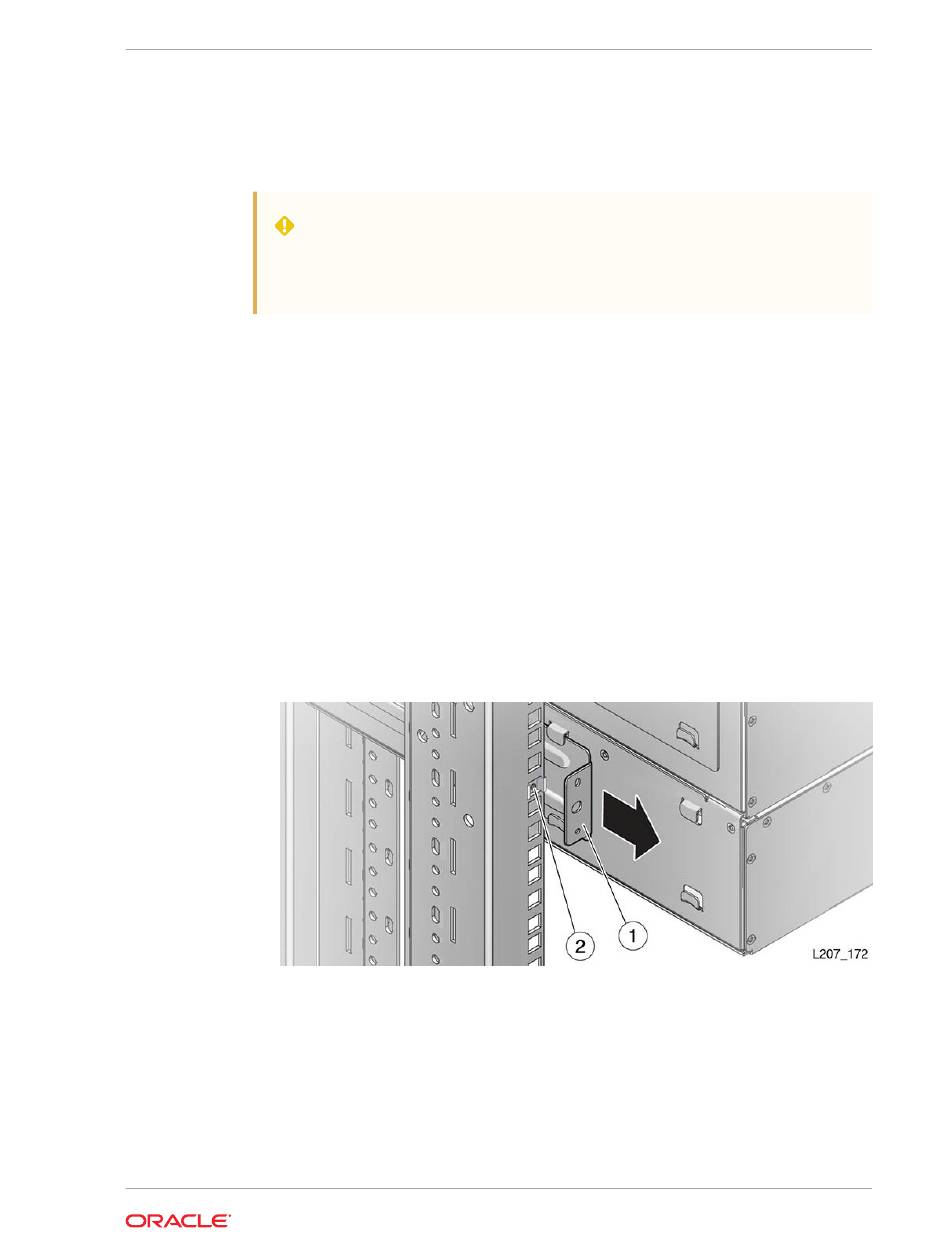

Figure 10-6
Illustration Legend:
1 - Rear Rail
2 - Clip Nut

Remove Components from the Defective Module

Save functional components to be reused in the replacement module.
Remove the Drive Tray and
Figure 10-6.
Module Rear Rail Removal
Expansion Module Chassis Removal and Replacement (FRU)
Remove the Power Supply.
