Remove The Front Control Panel; Rear View Of The Front Control Panel - Oracle SL150 Library Manual

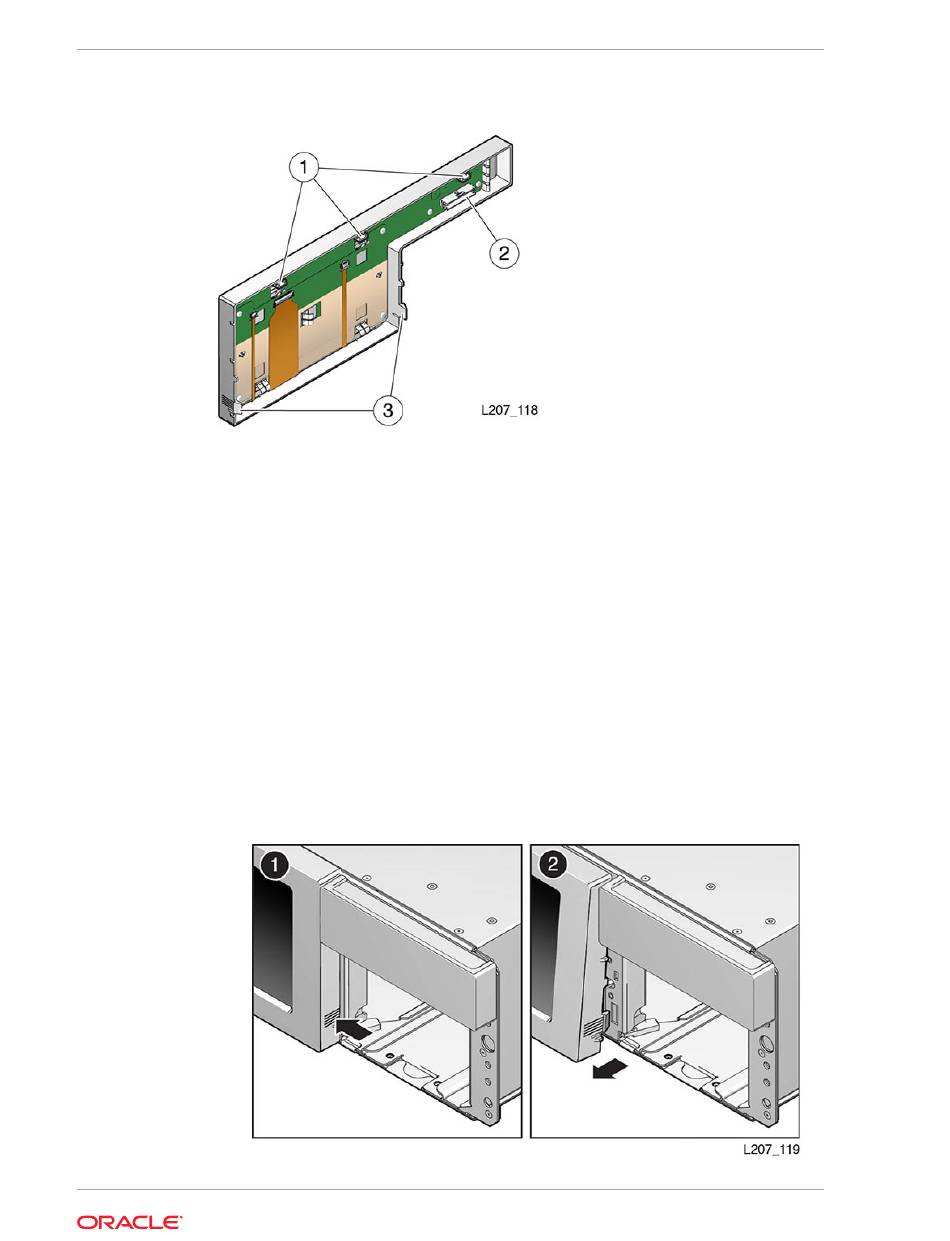

Figure 10-3
Illustration Legend:
1 - Tabs
2 - Jack
3 - Latches

Remove the Front Control Panel

The front control panel latches into the front of the Base Module. Use care when
removing the panel.
Power down the library (see
1.
Remove both cartridge magazines from the Base Module (see
2.
Remove the
Press the latch inside each magazine bay inner wall and pull the bottom edge of
3.
the panel away from the module until the panel unlatches (see image below).

Rear View of the Front Control Panel

Power Off the
Magazines).
Front Control Panel Removal and Replacement
Library).
Unlock and
Chapter 10
10-8
