Overland Storage PowerLoader User & Installation Manual page 80

F S C (FSC)
AULT YMPTOM ODES
B001
B002
B004
B005
B006
B007
B010
B011
B012
B013
B014
F001
F002
F003
F004
u
5-18 Troubleshooting

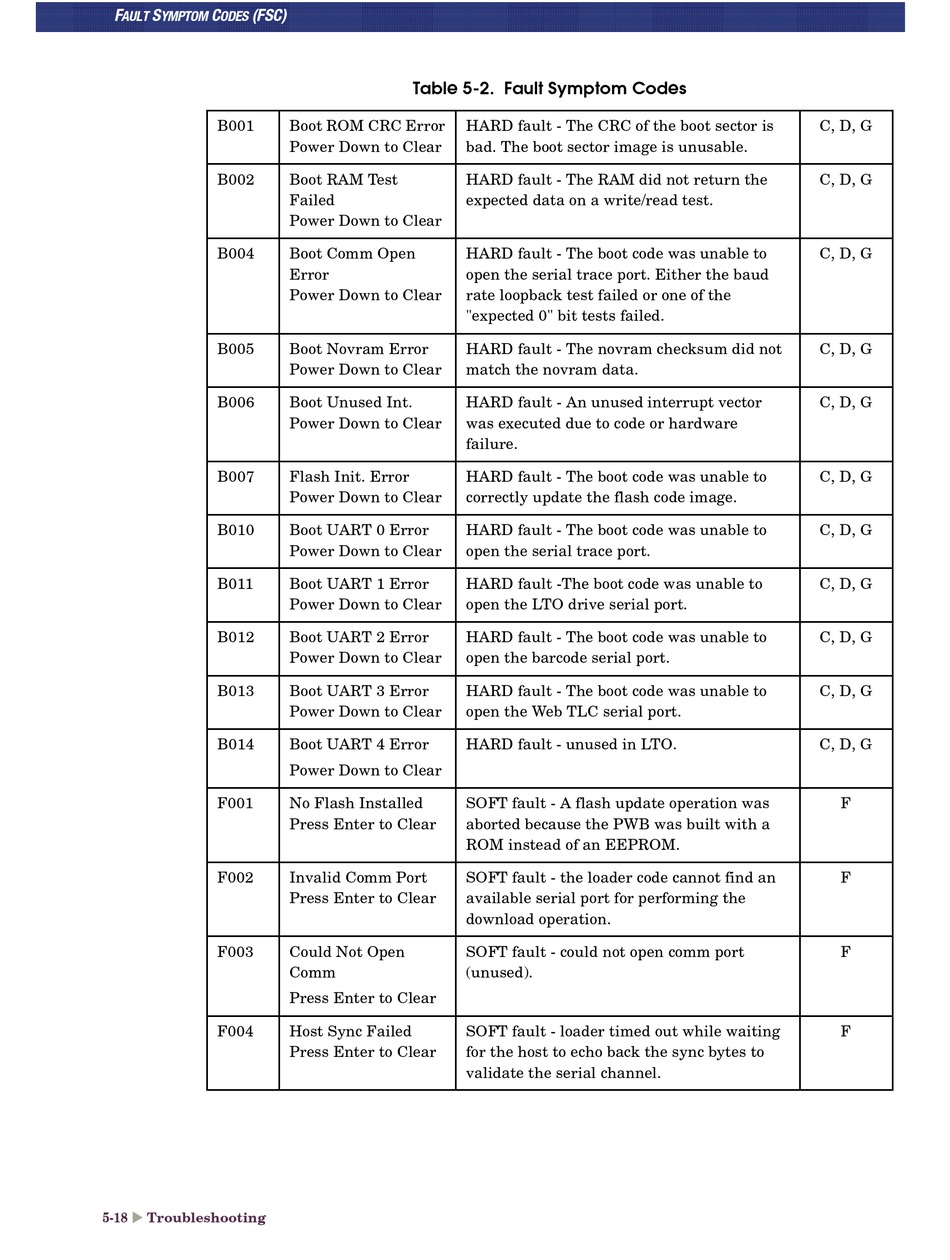

Table 5-2. Fault Symptom Codes
Boot ROM CRC Error HARD fault - The CRC of the boot sector is
Power Down to Clear bad. The boot sector image is unusable.
Boot RAM Test HARD fault - The RAM did not return the
Failed expected data on a write/read test.
Power Down to Clear
Boot Comm Open HARD fault - The boot code was unable to
Error open the serial trace port. Either the baud
Power Down to Clear rate loopback test failed or one of the
"expected 0" bit tests failed.
Boot Novram Error HARD fault - The novram checksum did not
Power Down to Clear match the novram data.
Boot Unused Int. HARD fault - An unused interrupt vector
Power Down to Clear was executed due to code or hardware
failure.
Flash Init. Error HARD fault - The boot code was unable to
Power Down to Clear correctly update the flash code image.
Boot UART 0 Error HARD fault - The boot code was unable to
Power Down to Clear open the serial trace port.
Boot UART 1 Error HARD fault -The boot code was unable to
Power Down to Clear open the LTO drive serial port.
Boot UART 2 Error HARD fault - The boot code was unable to
Power Down to Clear open the barcode serial port.
Boot UART 3 Error HARD fault - The boot code was unable to
Power Down to Clear open the Web TLC serial port.
Boot UART 4 Error HARD fault - unused in LTO.
Power Down to Clear
No Flash Installed SOFT fault - A flash update operation was
Press Enter to Clear aborted because the PWB was built with a
ROM instead of an EEPROM.
Invalid Comm Port SOFT fault - the loader code cannot find an
Press Enter to Clear available serial port for performing the
download operation.
Could Not Open SOFT fault - could not open comm port
Comm (unused).
Press Enter to Clear
Host Sync Failed SOFT fault - loader timed out while waiting
Press Enter to Clear for the host to echo back the sync bytes to
validate the serial channel.
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
F
F
F
F
