Control Panel - Overland Storage PowerLoader User & Installation Manual

Component
Magazine Door
Power Switch

Control Panel

Control Panel
Component
Display Panel
Table 1-2. Front Panel Controls and Indicators
Description
Used to gain access to the magazine.
Includes electronically controlled locks.
Access is gained via the Control Panel
menu.
Push button switch used to apply power
to the unit. Press to power on or off.
Includes LED Display Screen, Four LED
Indicators and Four Buttons.

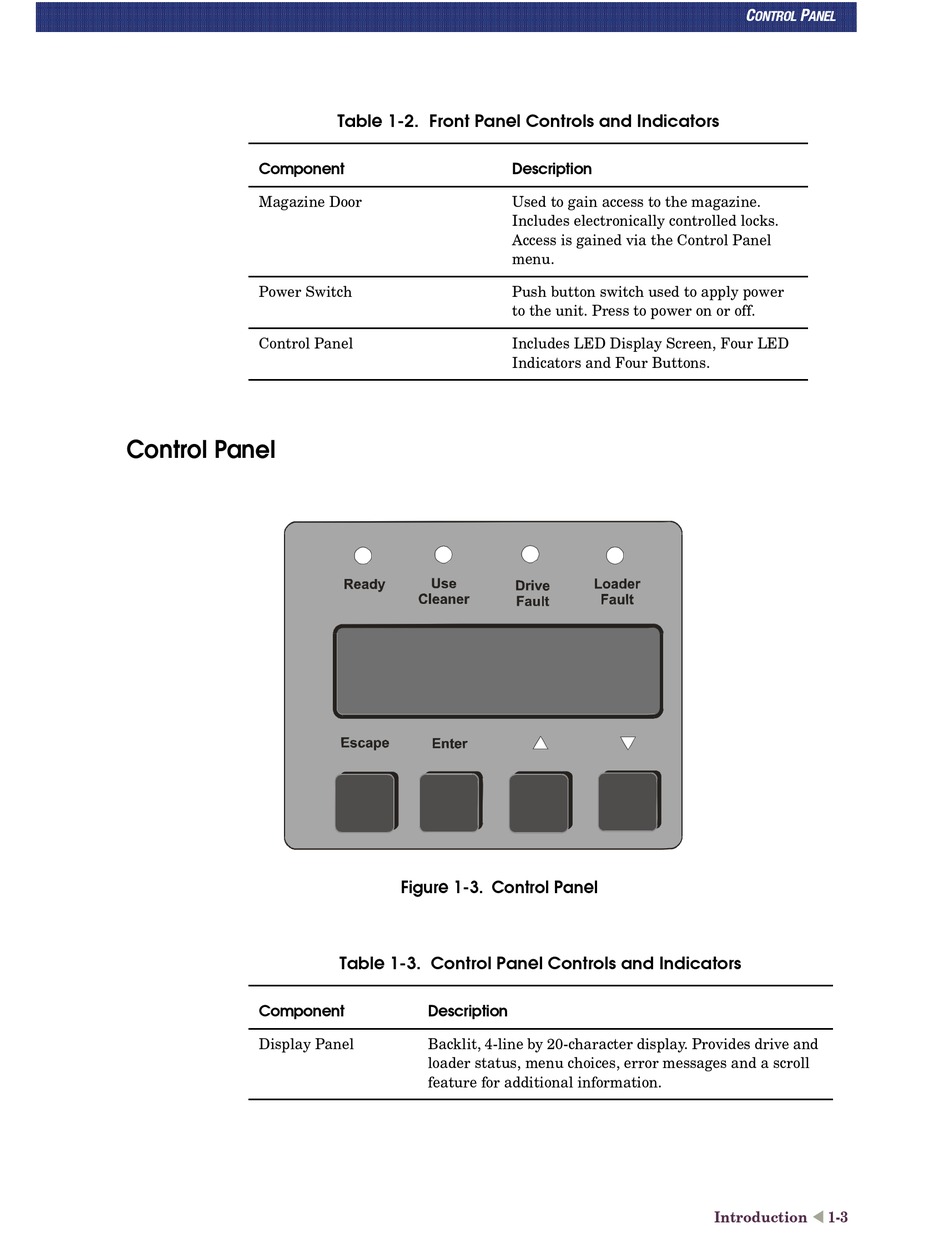

Figure 1-3. Control Panel
Table 1-3. Control Panel Controls and Indicators
Description
Backlit, 4-line by 20-character display. Provides drive and
loader status, menu choices, error messages and a scroll
feature for additional information.
