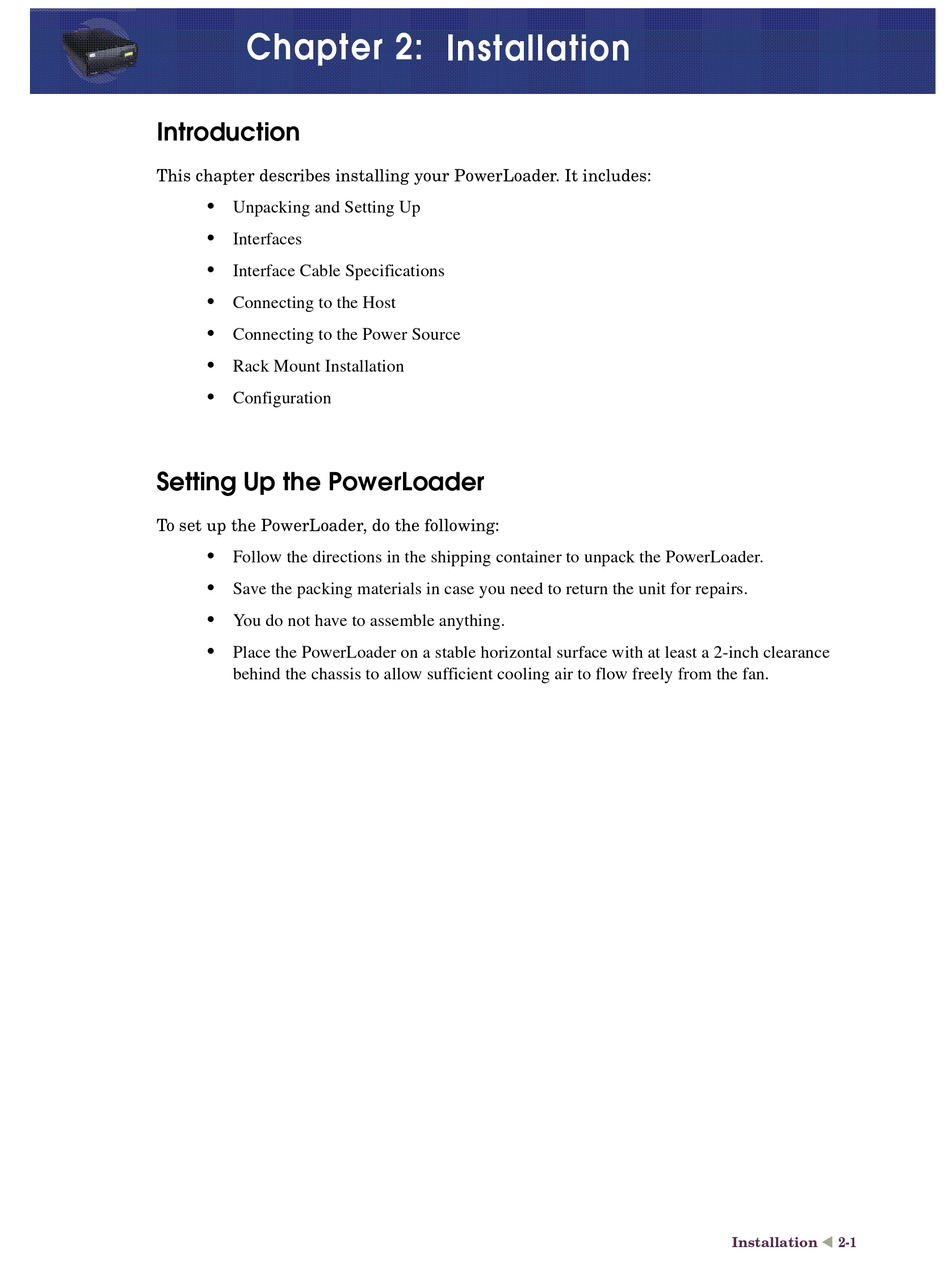

Chapter 2:

Introduction

This chapter describes installing your PowerLoader. It includes:
•
Unpacking and Setting Up
•
Interfaces
•
Interface Cable Specifications
•
Connecting to the Host
•
Connecting to the Power Source
•
Rack Mount Installation
•
Configuration

Setting Up the PowerLoader

To set up the PowerLoader, do the following:
•
Follow the directions in the shipping container to unpack the PowerLoader.
•
Save the packing materials in case you need to return the unit for repairs.
•
You do not have to assemble anything.
•
Place the PowerLoader on a stable horizontal surface with at least a 2-inch clearance
behind the chassis to allow sufficient cooling air to flow freely from the fan.
Installation
t
Installation 2-1
