6014 Invalid Com Blk Type
Enter to Reboot or
Power Down to Clear
6015 Ack Timeout - Out
Enter to Reboot or
Power Down to Clear
6016 Ack Timeout - In
Enter to Reboot or
Power Down to Clear
6017 Ack Invalid - Out
Enter to Reboot or
Power Down to Clear
6018 Ack Invalid - In
Enter to Reboot or
Power Down to Clear
6019 Comm Port Ack
Error
Enter to Reboot or
Power Down to Clear
6021 Slave RTS Still Set
Enter to Reboot or
Power Down to Clear
6022 Slave Addr Invalid
Enter to Reboot or
Power Down to Clear
6023 Slave Req Unknown
Enter to Reboot or
Power Down to Clear
6024 Slave Has No Pkts
Enter to Reboot or
Power Down to Clear
6025 Pkt ID Invalid
Enter to Reboot or
Power Down to Clear
6026 No Slaves to Flash
Press Enter to Clear
6027 Master Has No Flash
Press Enter to Clear

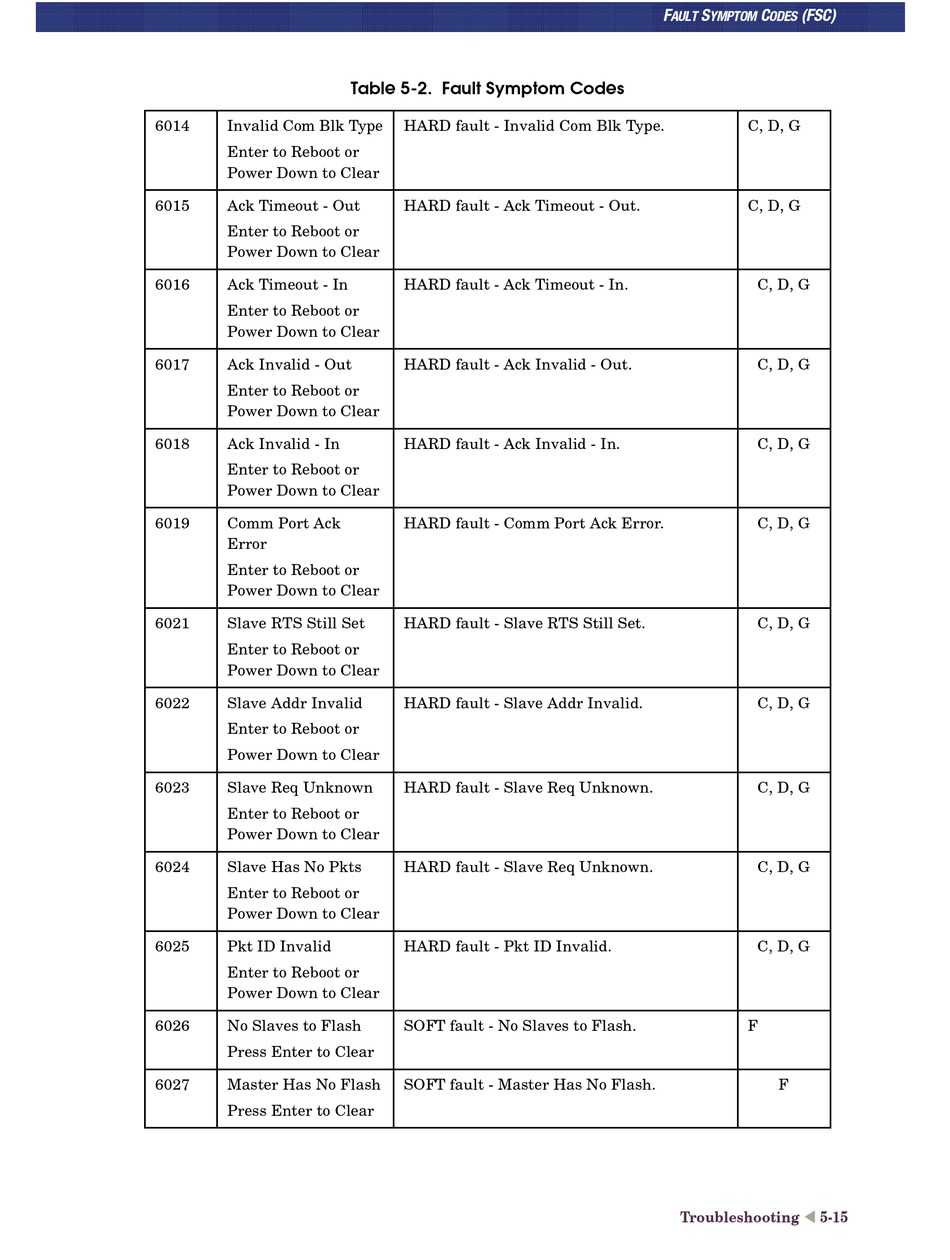

Table 5-2. Fault Symptom Codes
HARD fault - Invalid Com Blk Type.
HARD fault - Ack Timeout - Out.
HARD fault - Ack Timeout - In.
HARD fault - Ack Invalid - Out.
HARD fault - Ack Invalid - In.
HARD fault - Comm Port Ack Error.
HARD fault - Slave RTS Still Set.
HARD fault - Slave Addr Invalid.
HARD fault - Slave Req Unknown.
HARD fault - Slave Req Unknown.
HARD fault - Pkt ID Invalid.
SOFT fault - No Slaves to Flash.
SOFT fault - Master Has No Flash.
