F
EATURES
• Easy to operate, including loading cartridges and removing the magazine
• User-friendly interface Control Panel with display screen allows direct access to all
functions, including configuration, security, loading and unloading cartridges and
magazines, and locking and unlocking the front panel door
•
Embedded diagnostics for verification and memory testing at power-up and for user
and Customer Engineer troubleshooting

Features

The PowerLoader features the following:

Front Panel

u
1-2 Introduction
Table 1-1. PowerLoader Features
Feature/Component
Number of Drives
Interface
Data Buffer
Magazine
Control Panel
Door

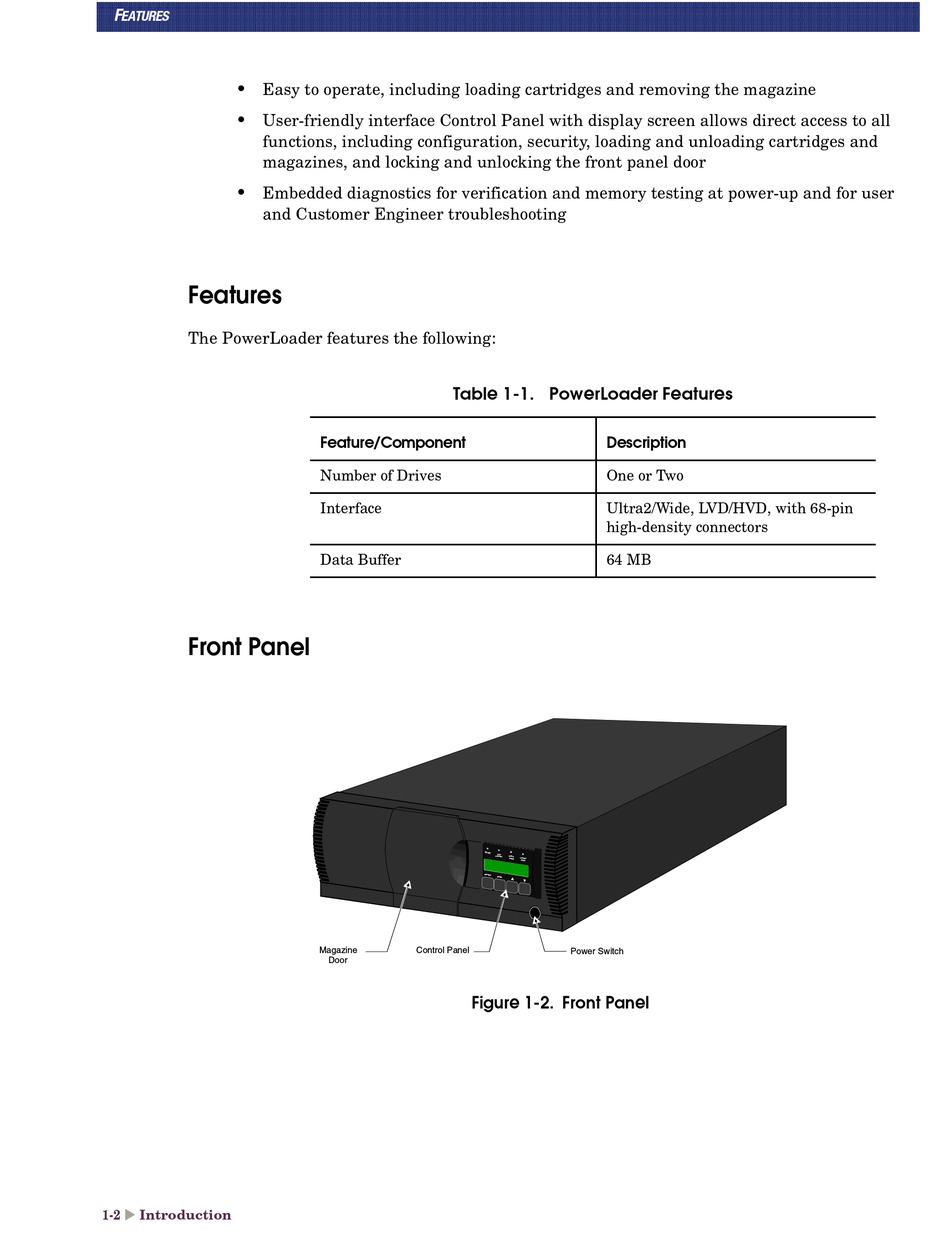

Figure 1-2. Front Panel
Description
One or Two
Ultra2/Wide, LVD/HVD, with 68-pin
high-density connectors
64 MB
Power Switch
