Installing the Rack Slides

Note: The left and right slides are alike, so there is no risk of confusing the parts on
reassembly.
1) Refer to Figure 2-9
PowerLoader pem enclosure by means of three screws through the inner slide.
2) Refer to Figure
a. Pull the outer slide toward the rear, along with the intermediate slide until the inner slide lock
engages the intermediate slide.
b. Continue to pull the outer slide towards the rear until the outer slide lock engages the intermediate
slide. Press down on the inner slide lock to permit the intermediate slide to continue to move
toward the rear. Continue to move the outer and intermediate slides toward the rear until they are
separated from the inner slide.
3) Place one of the inner slides against one side of the chassis so that the holes in the inner slide
are aligned with the holes in the chassis.
4) Install three M4 X 8mm Phillips head pem screws through the front, back and center holes in
the inner slide into the chassis.
5) Repeat steps 3 and 4 for the other slide on the other side of the chassis.

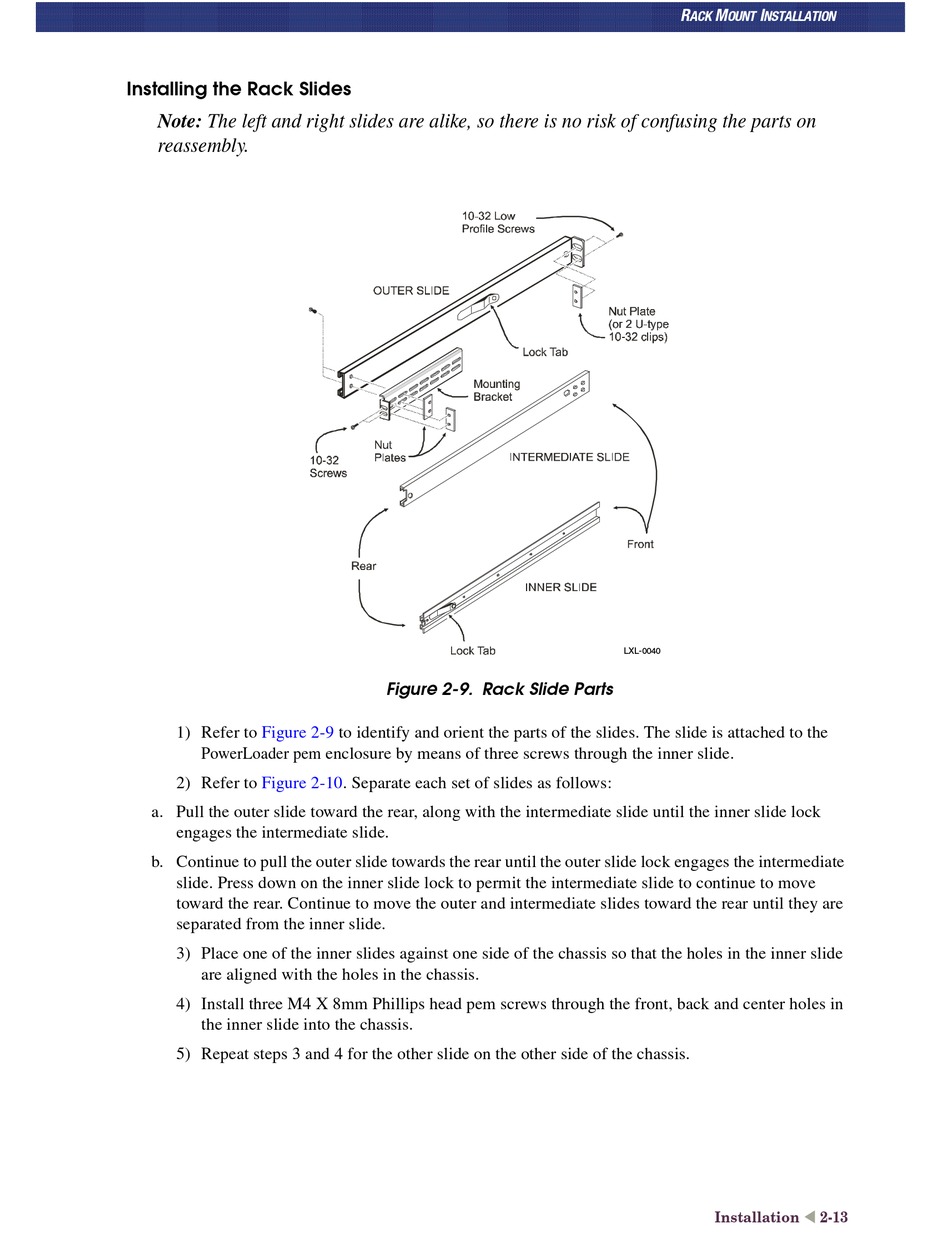

Figure 2-9. Rack Slide Parts
to identify and orient the parts of the slides. The slide is attached to the
2-10. Separate each set of slides as follows:
R M I
ACK OUNT NSTALLATION
LXL-0040
t
Installation 2-13
