I
NTERFACES

Interfaces

SCSI
TERMINATOR
SCSI
CONNECTOR

Interface Cable Specifications

All SCSI cables used with the PowerLoader should meet the following requirements:
•
Shielded or double-shielded, as required to meet EMI specifications
•
Impedance match with cable terminators of 132 ohms
•
Characteristic impedance between 90 and 132 ohms (required)
•
34-pair twisted-pair
u
2-2 Installation
DIAGNOSTIC
DIAGNOSTIC
CONNECTOR

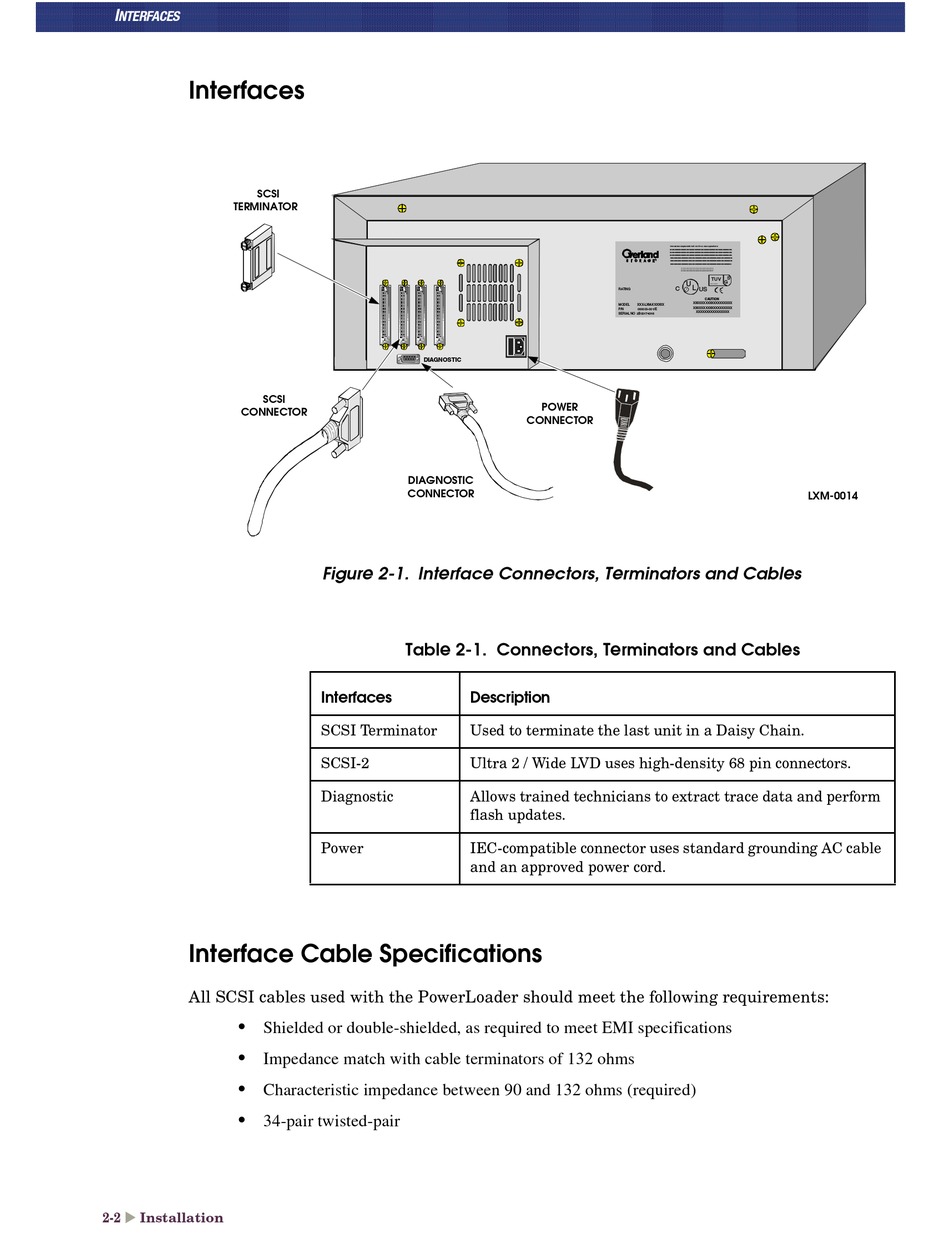

Figure 2-1. Interface Connectors, Terminators and Cables
Table 2-1. Connectors, Terminators and Cables
Interfaces Description
SCSI Terminator Used to terminate the last unit in a Daisy Chain.
SCSI-2 Ultra 2 / Wide LVD uses high-density 68 pin connectors.
Diagnostic Allows trained technicians to extract trace data and perform
flash updates.
Power IEC-compatible connector uses standard grounding AC cable
and an approved power cord.
T hi s dev ice c om p l i e s wi t h Par t 15 o f F CC ru l e s O per a t i on i s
xx xxx xxxxxxx xxxxxx xxx xxxxxx xxxxxxx xxx xxxxxx xxxxxxx xxx xxxxx xxxxxxx xxx
xx xxx xxxxxxx xxxxxx xxx xxxxxx xxxxxxx xxx xxxxxx xxxxxxx xxx xxxxx xxxxxxx xxx
xx xxx xxxxxxx xxxxxx xxx xxxxxx xxxxxxx xxx xxxxxx xxxxxxx xxx xxxxx xxxxxxx xxx
xxxx xxxx xxxx xxxxxxxx xxxx xxx xxxxxxxx xxxxx xxx xxxxxxxx xxxxx xxx xxxxxxx xx
xxxx xxxx xxxx xxxxxxxx xxxx xxx xxxxxxxx xxxxx xxx xxxxxxxx xxxxx xxx xxxxxxx xx
xxxx xxxx xxxx xxxxxxxx xxxx xxx xxxxxxxx xxxxx xxx xxxxxxxx xxxxx xxx xxxxxxx x
XXXX XXXXXXX XXXXXX XXXXXX X X XXXX X X XXXXXX X X XXXX X X XXXXXX X X XXXX X X XXXXXX XXX
XXXX XXXXXXX XXXXXX XXXXXX X X XXXX X X XXXXXX X X XXXX X X XXXXXX X X XXXX X X XXXXXX XXX
XXXX XXXXXXX XXXXXX XXXXXX X X XXXX X X XXXXXX X X XXXX X X XXXXXX X X XXXX X X XXXXXX XX
U
L
C US
RATING
R
CAUTION
XXXXXX XXXXXXXXXXXXX
MODEL XX X-LXM-X XXXXX
XXXXXX XXXXXXXXXXXXX
P/N 000000-001/E
XXXXXXXXXXXXXXXX
SERIAL NO 2B 00174316
POWER
CONNECTOR
S
TUV
G
PROD UCT SERV I C ES
LXM-0014
