Error
Enter to Reboot or
Power Down to Clear
2007 Door Fault
Press Enter to Clear
2008 Illegal Move
Press Enter to Clear
2009 Door Open
Press Enter to Clear
200A Menu Mode
Press Enter to Clear
200B Watch Dog Muzzled
Enter to Reboot or
Power Down to Clear
200C Cart Unaccessible
Press Enter to Clear
200D Drive In Error
Press Enter to Clear
200E No Magazine
Press Enter to Clear
200F Removal Prevented
Press Enter to Clear
2010 Ctl. Firmware Error
Enter to Reboot or
Power Down to Clear
2011 Ctl. Firmware Error
Enter to Reboot or
Power Down to Clear
2012 Ctl. Firmware Error
Enter to Reboot or
Power Down to Clear

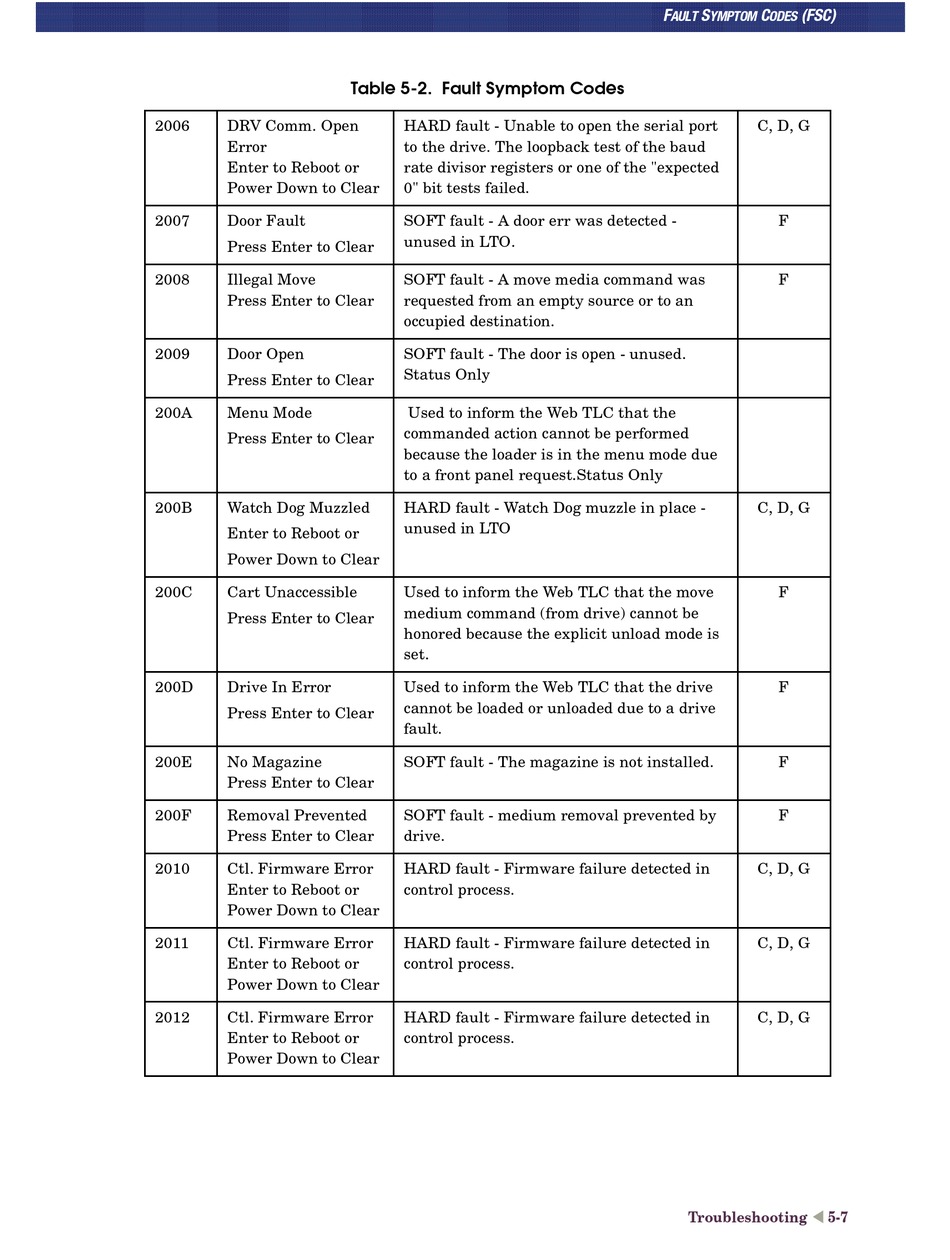

Table 5-2. Fault Symptom Codes
HARD fault - Unable to open the serial port
to the drive. The loopback test of the baud
rate divisor registers or one of the "expected
0" bit tests failed.
SOFT fault - A door err was detected -
unused in LTO.
SOFT fault - A move media command was
requested from an empty source or to an
occupied destination.
SOFT fault - The door is open - unused.
Status Only
Used to inform the Web TLC that the
commanded action cannot be performed
because the loader is in the menu mode due
to a front panel request.Status Only
HARD fault - Watch Dog muzzle in place -
unused in LTO
Used to inform the Web TLC that the move
medium command (from drive) cannot be
honored because the explicit unload mode is
set.
Used to inform the Web TLC that the drive
cannot be loaded or unloaded due to a drive
fault.
SOFT fault - The magazine is not installed.
SOFT fault - medium removal prevented by
drive.
HARD fault - Firmware failure detected in
control process.
HARD fault - Firmware failure detected in
control process.
HARD fault - Firmware failure detected in
control process.
F S C (FSC)
AULT YMPTOM ODES
C, D, G
F
F
C, D, G
F
F
F
F
C, D, G
C, D, G
C, D, G
t
