Installing the Panel Extensions
Refer to
Figure
Note: The left and right panel extensions are alike, so there is no risk of confusing the
parts on assembly.
1) Place a panel extension against one side of the chassis so that the holes in the panel extension
are aligned with the two holes in the chassis.
2) Install two M4 X 8mm Phillips head pem screws through the holes in the panel extension into
the chassis.
u
2-14
Installation

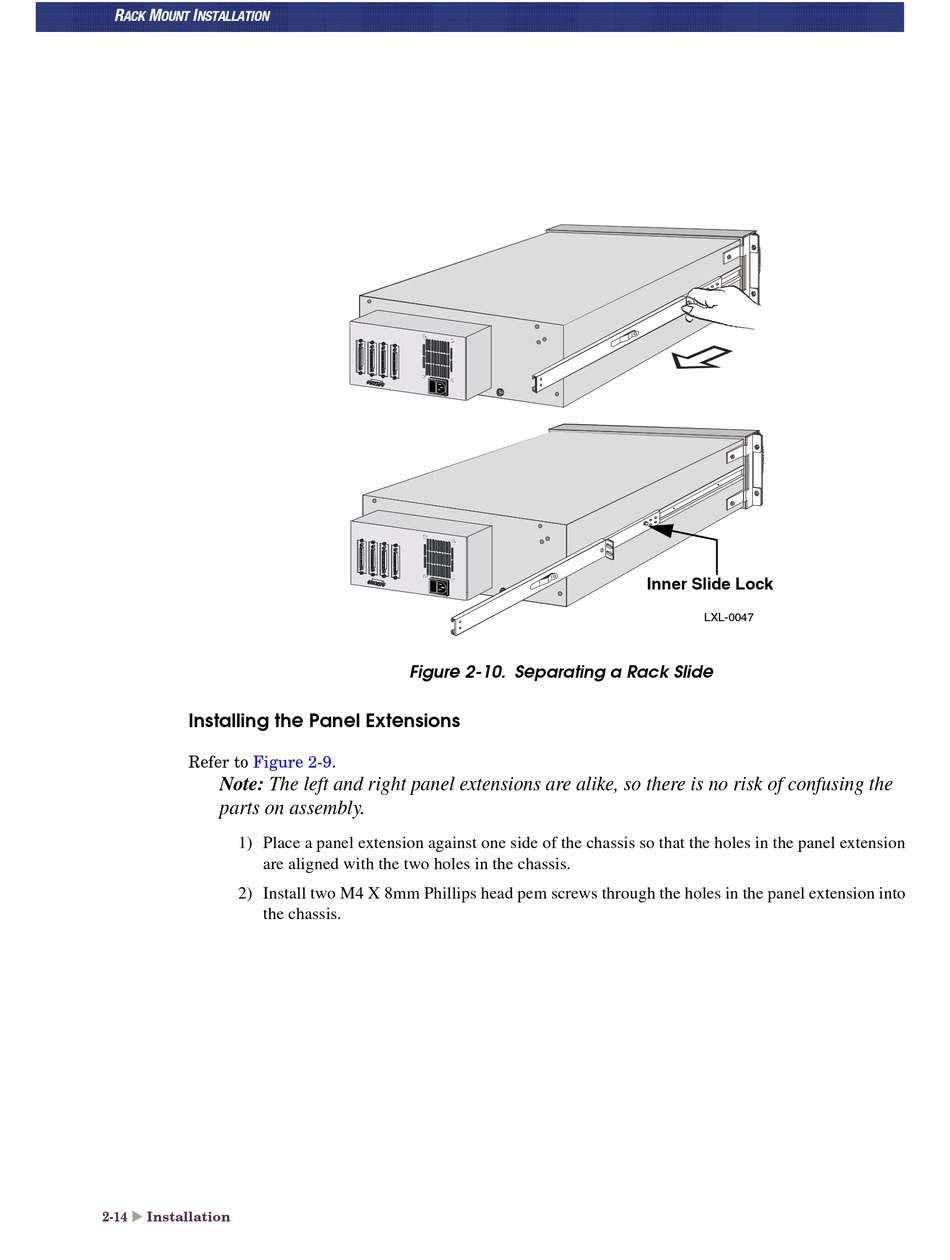

Figure 2-10. Separating a Rack Slide
2-9.
Inner Slide Lock
LXL-0047
