I
S
– T
L
NITIAL
CREEN
O
INE - The list on line 4 (the To line) includes all of the valid destination
choices, that is, the drive if it is empty, or all slots that are empty. You can't put a cartridge into
a slot or drive which already has one in it.
S
L
– T
L
INE - If you have selected the drive on the From screen, the To list can
CROLL
IST
O
include only slots. If you have selected a slot on the From screen, the To list can contain only the
drive.
If unloading the cartridge located in SDLT into slot 4 is desired, Press the Enter button to select
SDLT.

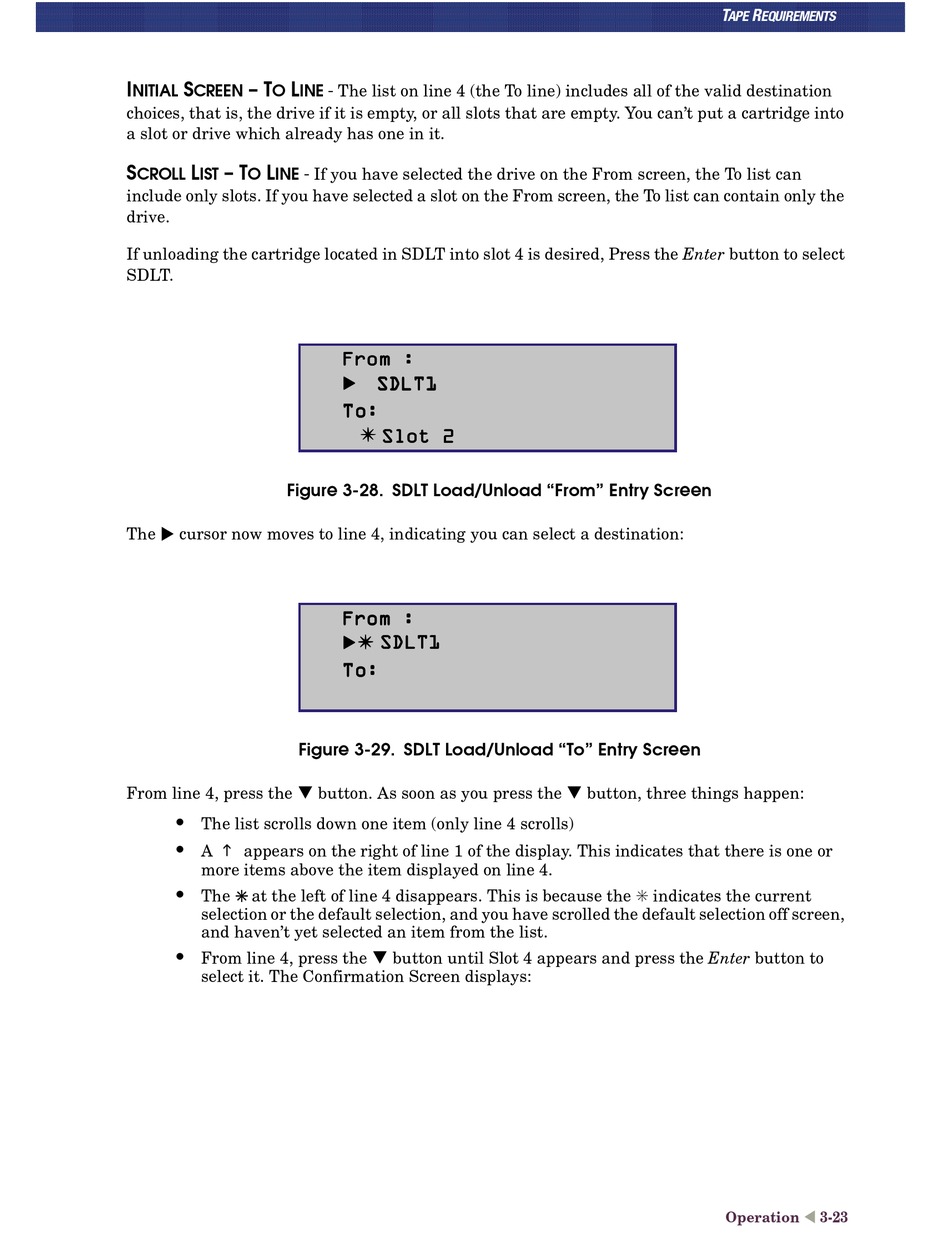

Figure 3-28. SDLT Load/Unload "From" Entry Screen
The u cursor now moves to line 4, indicating you can select a destination:
Figure 3-29. SDLT Load/Unload "To" Entry Screen
From line 4, press the q button. As soon as you press the q button, three things happen:
•
The list scrolls down one item (only line 4 scrolls)
A h appears on the right of line 1 of the display. This indicates that there is one or
•
more items above the item displayed on line 4.
The ✳ ✳ ✳ ✳ at the left of line 4 disappears. This is because the ✳ indicates the current
•
selection or the default selection, and you have scrolled the default selection off screen,
and haven't yet selected an item from the list.
From line 4, press the q button until Slot 4 appears and press the Enter button to
•
select it. The Confirmation Screen displays:
From :
From :
From :
From :
SDLT1
SDLT1
SDLT1
SDLT1
u u u u
To:
To:
To:
To:
✴ ✴ ✴ ✴ Slot 2
Slot 2
Slot 2
Slot 2
From :
From :
From :
From :
SDLT1
SDLT1
SDLT1
SDLT1
✴ ✴ ✴ ✴
u u u u
To:
To:
To:
To:
T
R
APE
EQUIREMENTS
t
Operation
3-23
