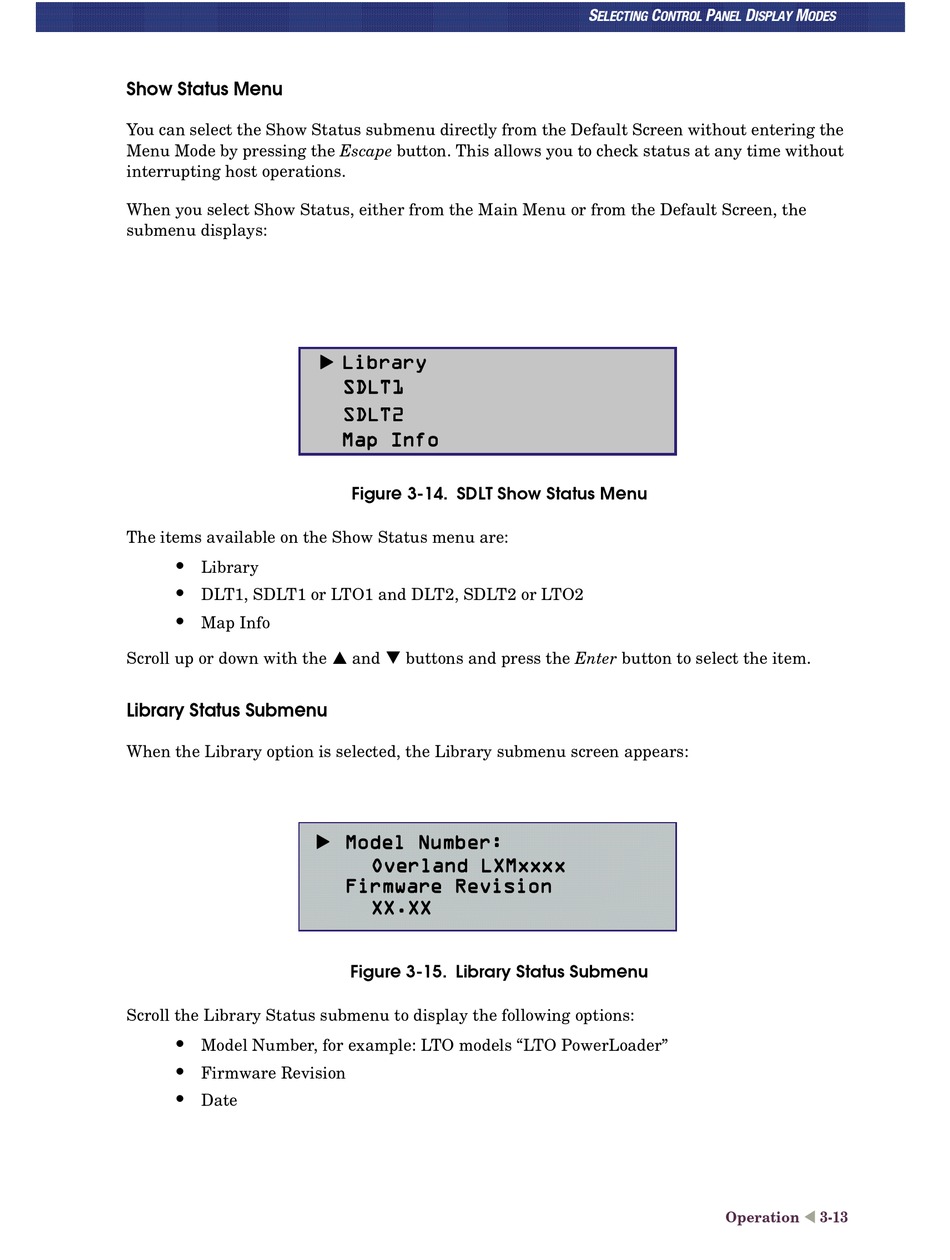

Show Status Menu

You can select the Show Status submenu directly from the Default Screen without entering the
Menu Mode by pressing the Escape button. This allows you to check status at any time without
interrupting host operations.
When you select Show Status, either from the Main Menu or from the Default Screen, the
submenu displays:
The items available on the Show Status menu are:
•
Library
•
DLT1, SDLT1 or LTO1 and DLT2, SDLT2 or LTO2
•
Map Info
Scroll up or down with the p and q buttons and press the Enter button to select the item.

Library Status Submenu

When the Library option is selected, the Library submenu screen appears:
Scroll the Library Status submenu to display the following options:
•
Model Number, for example: LTO models "LTO PowerLoader"
•
Firmware Revision
•
Date
Library Library
Library Library
u u u u
SDLT1 SDLT1 SDLT1 SDLT1
SDLT2 SDLT2
SDLT2 SDLT2
Map Info Map Info Map Info Map Info
Figure 3-14. SDLT Show Status Menu
Model Number: Model Number: Model Number: Model Number:
u u u u
Overland LXM Overland LXM Overland LXM Overland LXM
Firmware Revision Firmware Revision
Firmware Revision Firmware Revision
XX.XX XX.XX XX.XX XX.XX
Figure 3-15. Library Status Submenu
