5-4 Troubleshooting

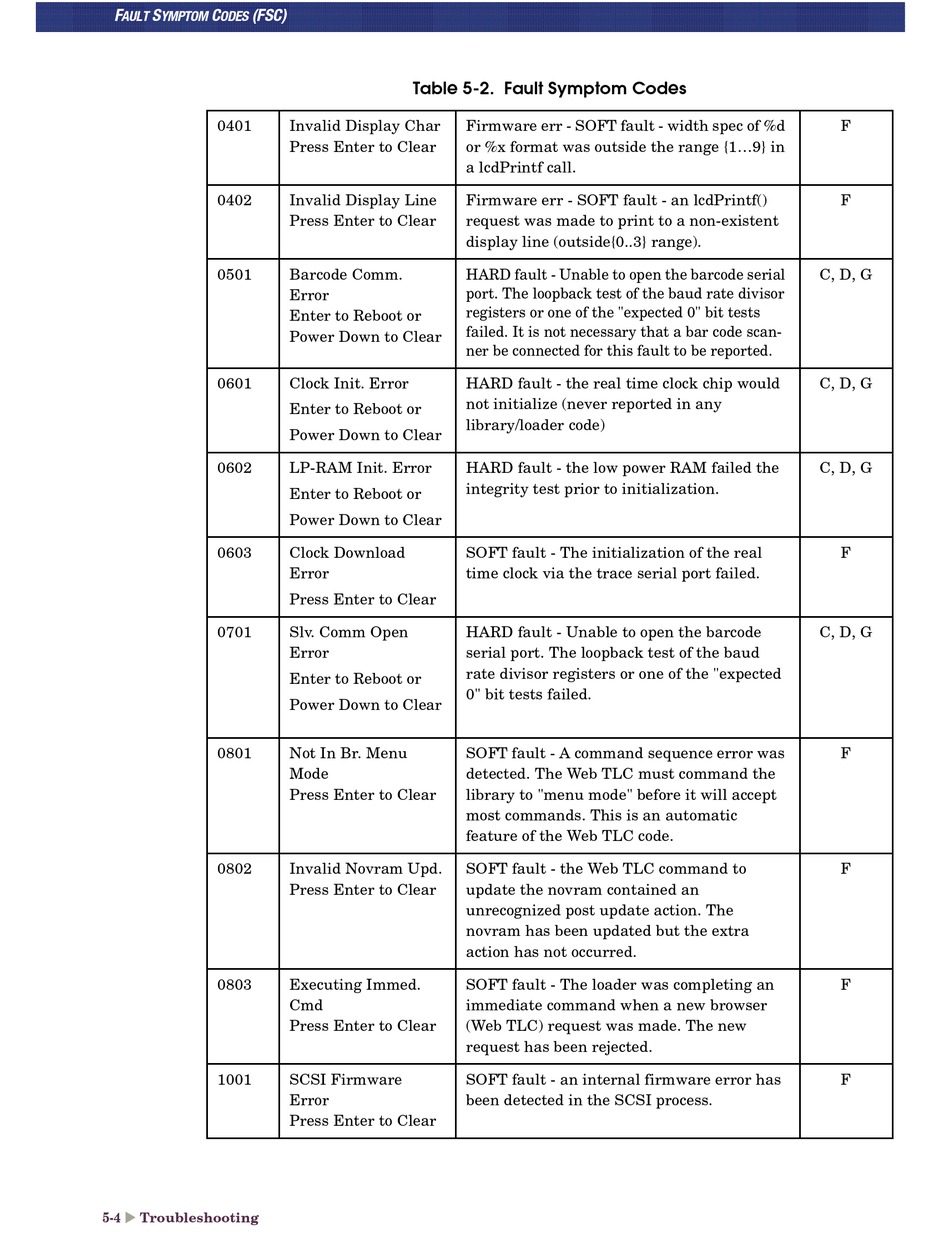

Table 5-2. Fault Symptom Codes
Invalid Display Char Firmware err - SOFT fault - width spec of %d
Press Enter to Clear or %x format was outside the range {1...9} in
a lcdPrintf call.
Invalid Display Line Firmware err - SOFT fault - an lcdPrintf()
Press Enter to Clear request was made to print to a non-existent
display line (outside{0..3} range).
Barcode Comm. HARD fault - Unable to open the barcode serial
port. The loopback test of the baud rate divisor
Error
registers or one of the "expected 0" bit tests
Enter to Reboot or
failed. It is not necessary that a bar code scan-
Power Down to Clear
ner be connected for this fault to be reported.
Clock Init. Error HARD fault - the real time clock chip would
not initialize (never reported in any
Enter to Reboot or
library/loader code)
Power Down to Clear
LP-RAM Init. Error HARD fault - the low power RAM failed the
integrity test prior to initialization.
Enter to Reboot or
Power Down to Clear
Clock Download SOFT fault - The initialization of the real
Error time clock via the trace serial port failed.
Press Enter to Clear
Slv. Comm Open HARD fault - Unable to open the barcode
Error serial port. The loopback test of the baud
rate divisor registers or one of the "expected
Enter to Reboot or
0" bit tests failed.
Power Down to Clear
Not In Br. Menu SOFT fault - A command sequence error was
Mode detected. The Web TLC must command the
Press Enter to Clear library to "menu mode" before it will accept
most commands. This is an automatic
feature of the Web TLC code.
Invalid Novram Upd. SOFT fault - the Web TLC command to
Press Enter to Clear update the novram contained an
unrecognized post update action. The
novram has been updated but the extra
action has not occurred.
Executing Immed. SOFT fault - The loader was completing an
Cmd immediate command when a new browser
Press Enter to Clear (Web TLC) request was made. The new
request has been rejected.
SCSI Firmware SOFT fault - an internal firmware error has
Error been detected in the SCSI process.
Press Enter to Clear
