F P
RONT ANEL
The display's second line displays possible status conditions of the library robotics:
•
Loader Idle
•
Fetch
•
Stow
•
Diag Active
•
Diag Complete
•
Taking Inventory
•
Elevator Home
•
Checking Drive
•
Orphaned Cartridge
•
Trapped Cartridge
•
Scanning Labels.
The fourth line represents a map of the magazine. A 15 (DLT/SDLT) or 17 slot (LTO) magazine
is shown. The number 1 shows the location of slot 1 (the front slot) in the map. The number at
the far right shows the location of the rear slot in the map. Where a rectangle appears on this
line, it indicates that a cartridge is present in the corresponding slot of the magazine. An
underline indicates there is no cartridge present in that slot.

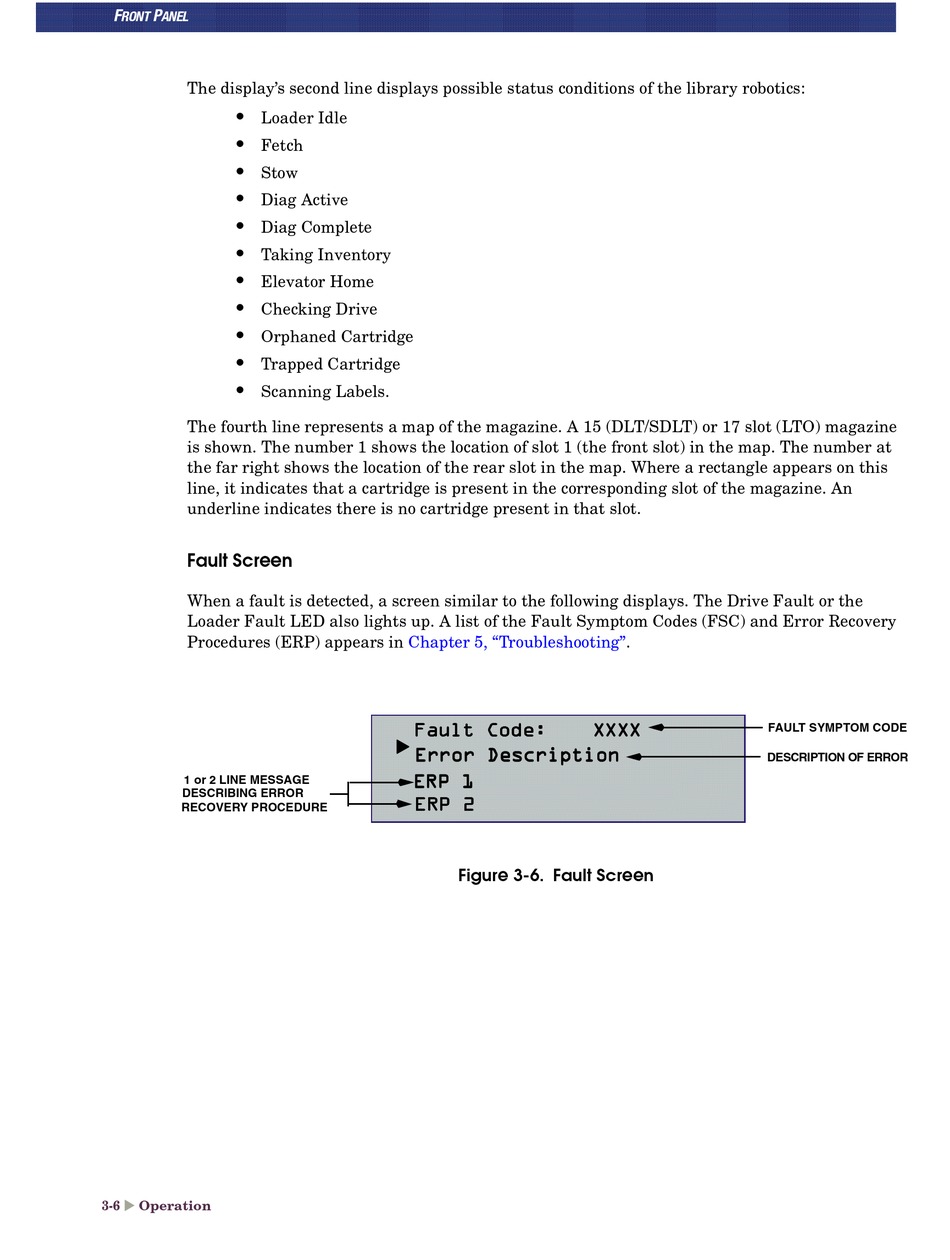

Fault Screen

When a fault is detected, a screen similar to the following displays. The Drive Fault or the
Loader Fault LED also lights up. A list of the Fault Symptom Codes (FSC) and Error Recovery
Procedures (ERP) appears in
1 or 2 LINE MESSAGE
DESCRIBING ERROR
RECOVERY PROCEDURE
u
3-6 Operation
Chapter 5, "Troubleshooting".
Fault Code: Fault Code:
Fault Code: Fault Code:
u u u u
Error Description Error Description Error Description Error Description
ERP 1 ERP 1
ERP 1 ERP 1
ERP 2 ERP 2
ERP 2 ERP 2
Figure 3-6. Fault Screen
XXXX XXXX
XXXX XXXX
FAULT SYMPTOM CODE
DESCRIPTION OF ERROR
