Map Info Submenu

When you select Map Info, a screen similar to the following displays. The location of the
element being reported appears on line 1 in place of the word location.
Lines 1, 2, 3, and 4 of this screen are scrollable in unison. For each scroll position, line 1
displays one of the following locations:
•
DLT1, SDLT1 or LTO1
•
DLT2, SDLT2 or LTO2
•
Slot1
•
Slot2
•
Slot3
•
Slot4
•
Slot5
•
Slot6
•
Slot7
•
Slot8
•
Slot9
•
Slot10
•
Slot11
•
Slot12
•
Slot13
•
Slot14
•
Slot15
•
Slot16 (LTO only)
•
Slot17 (LTO only)
If you have reserved slots to comply with your host software license, a smaller number of slots
are displayed.
Dependent upon the absence or presence of a cartridge in the element being reported, line 2
indicates either Empty or Occupied.
u
3-16 Operation
M
ODES
Location Location Location Location
u u u u
Element Status Element Status Element Status Element Status
Label Status Label Status
Label Status Label Status
XXXX XXXX
XXXX XXXX

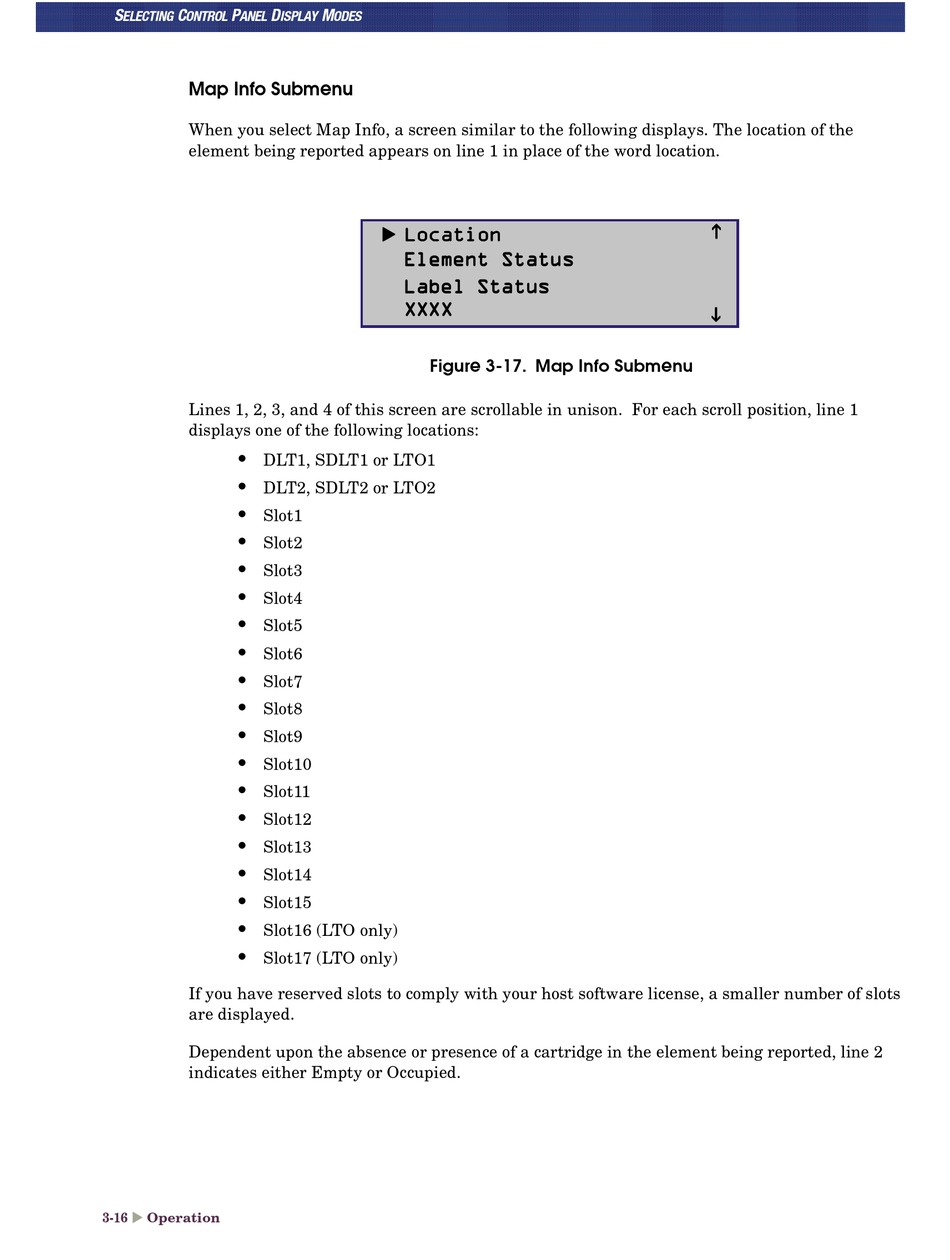

Figure 3-17. Map Info Submenu
