3) Repeat steps 1 and 2 for the other side of the chassis.

Installing the PowerLoader in the Rack

Refer to Figure 2-9 for parts identification.
1) Locate the screw holes in the front and rear rails of the cabinet or equipment rack where the is
to be installed.
2) Loosely assemble a mounting bracket to each outer slide, using two 10-32 screws with
washers and a nut plate for each. Select slots in the mounting brackets so the length of the
assembly equals the distance between the front and rear rails of the rack.
3) Fasten each outer slide behind the front rail of the rack using two 10-32 screws with washers
and one nut plate.
4) Fasten each of the mounting brackets to the front of the rear rail of the rack using two 10-32
screws and one nut plate.
5) Tighten the screws installed in step 4.
6) If they are not already locked, pull the intermediate slides toward the front (out of the rack) so
that they lock in the extended position.
Note: This step should be performed by two people. In front of the rack, lift the unit to its
installed height. Engage the inner slides mounted on the PowerLoader with the
intermediate slides protruding from the rack, and slide the PowerLoader toward the rack
until the inner slide lock engages the intermediate slide. This leaves the entire
PowerLoader protruding from the rack, locked in position, supported by slides.
7) Press inward (toward the chassis) on each of the inner slide locks to permit the intermediate
slides to move toward the rack.
8) Slide the PowerLoader in and out several times, ensuring that the inner and outer slide locks
engage, and that the PowerLoader chassis does not bind against the slides.

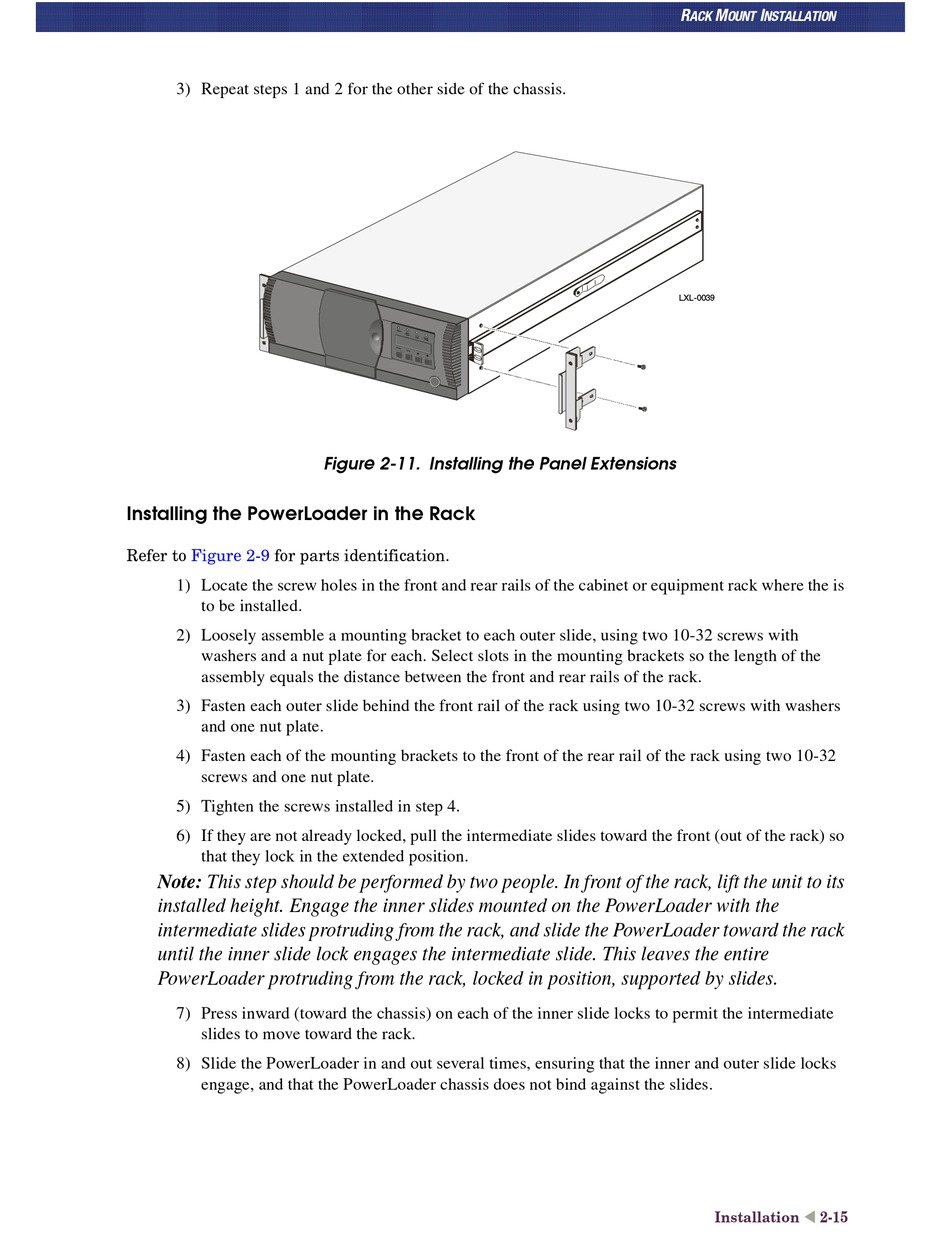

Figure 2-11. Installing the Panel Extensions
R M I
ACK OUNT NSTALLATION
LXL-0039
t
Installation 2-15
