I R C
NSERTING AND EMOVING ARTRIDGES
.
If you are still unable to open the magazine door, see

"Emergency Magazine Removal"

LXL-0027

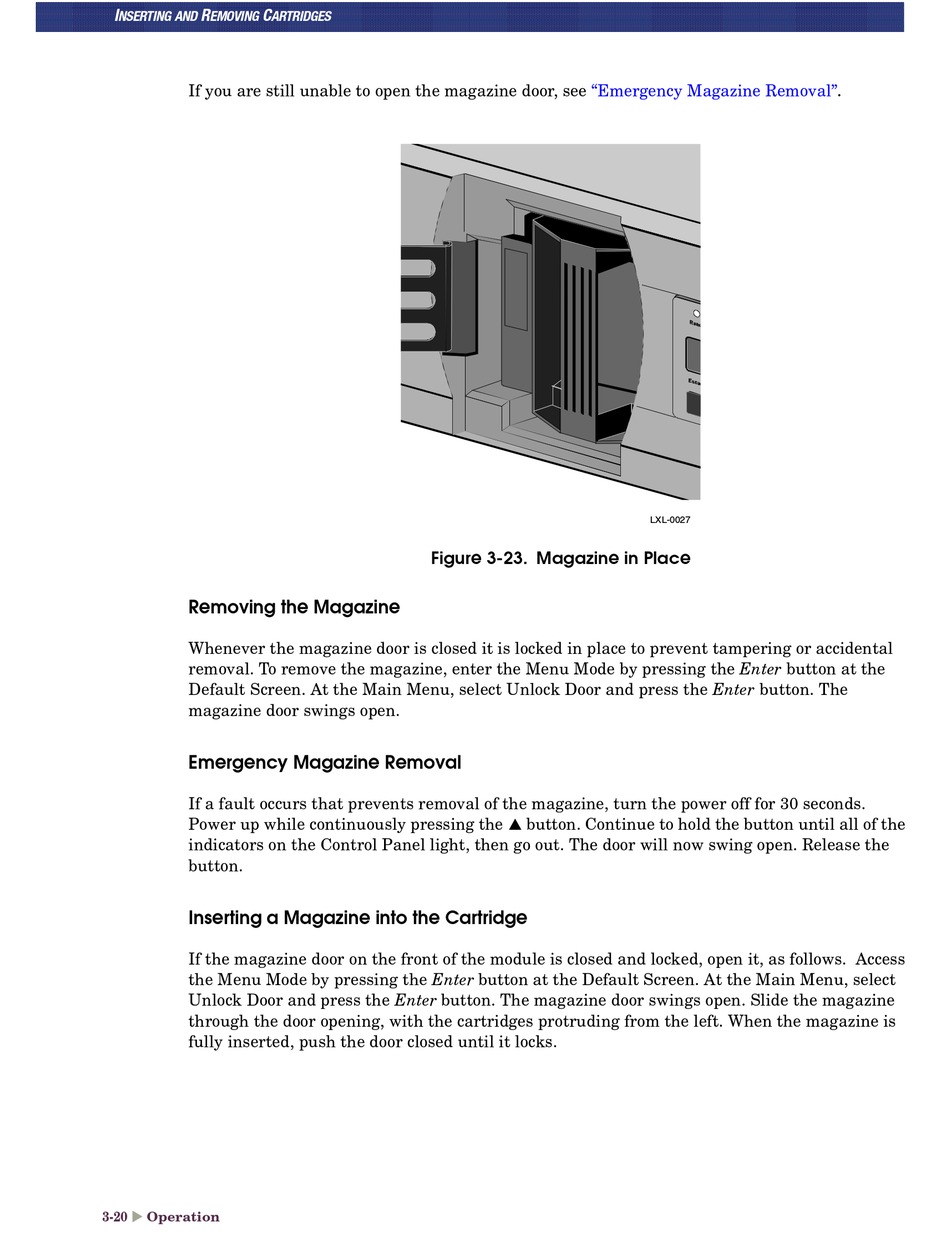

Figure 3-23. Magazine in Place

Removing the Magazine

Whenever the magazine door is closed it is locked in place to prevent tampering or accidental
removal. To remove the magazine, enter the Menu Mode by pressing the Enter button at the
Default Screen. At the Main Menu, select Unlock Door and press the Enter button. The
magazine door swings open.
Emergency Magazine Removal
If a fault occurs that prevents removal of the magazine, turn the power off for 30 seconds.
p
Power up while continuously pressing the button. Continue to hold the button until all of the
indicators on the Control Panel light, then go out. The door will now swing open. Release the
button.

Inserting a Magazine into the Cartridge

If the magazine door on the front of the module is closed and locked, open it, as follows. Access
the Menu Mode by pressing the Enter button at the Default Screen. At the Main Menu, select
Unlock Door and press the Enter button. The magazine door swings open. Slide the magazine
through the door opening, with the cartridges protruding from the left. When the magazine is
fully inserted, push the door closed until it locks.
u
3-20 Operation
