3012 Slot Stow Failed
Enter to Reboot or
Power Down to Clear
3013 Drive Fetch Failed
Enter to Reboot or
Power Down to Clear
3014 Drive Stow Failed
Enter to Reboot or
Power Down to Clear
3015 Drive Timeout
Enter to Reboot or
Power Down to Clear
3020 Undefined Config
Enter to Reboot or
Power Down to Clear
3021 No Cartridge
Enter to Reboot or
Power Down to Clear
3040 Motor Firmware
Error
Enter to Reboot or
Power Down to Clear
3100 Picker Jammed
Enter to Reboot or
Power Down to Clear
3200 Shuttle Jammed
Enter to Reboot or
Power Down to Clear
3300 Elevator Jammed
Enter to Reboot or
Power Down to Clear
4001 Rom CRC Error
Enter to Reboot or
Power Down to Clear
4002 Ram Test Failed
Enter to Reboot or
Power Down to Clear
4003 Xilinx Progr. Error
Enter to Reboot or
Power Down to Clear

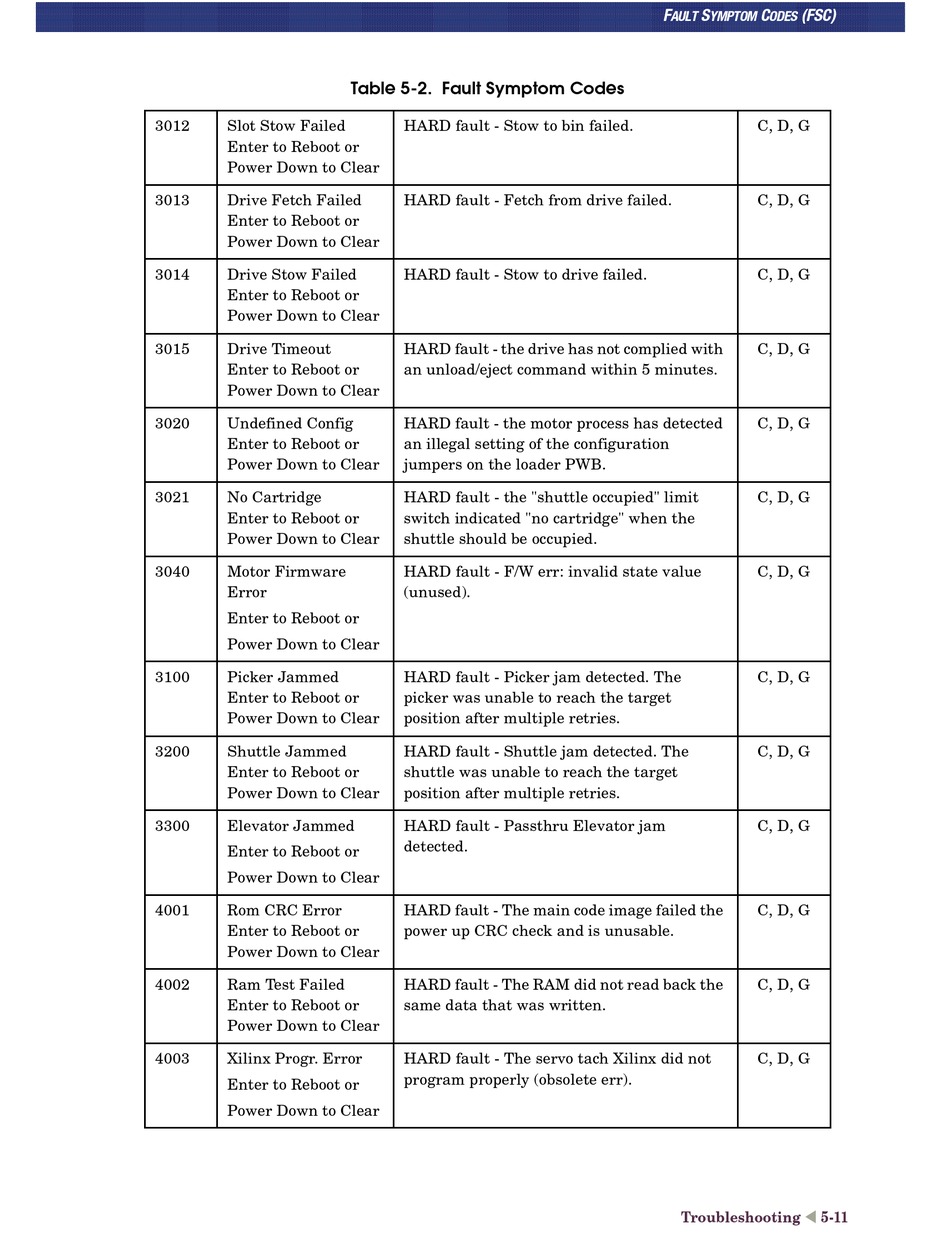

Table 5-2. Fault Symptom Codes
HARD fault - Stow to bin failed.
HARD fault - Fetch from drive failed.
HARD fault - Stow to drive failed.
HARD fault - the drive has not complied with
an unload/eject command within 5 minutes.
HARD fault - the motor process has detected
an illegal setting of the configuration
jumpers on the loader PWB.
HARD fault - the "shuttle occupied" limit
switch indicated "no cartridge" when the
shuttle should be occupied.
HARD fault - F/W err: invalid state value
(unused).
HARD fault - Picker jam detected. The
picker was unable to reach the target
position after multiple retries.
HARD fault - Shuttle jam detected. The
shuttle was unable to reach the target
position after multiple retries.
HARD fault - Passthru Elevator jam
detected.
HARD fault - The main code image failed the
power up CRC check and is unusable.
HARD fault - The RAM did not read back the
same data that was written.
HARD fault - The servo tach Xilinx did not
program properly (obsolete err).
F S C (FSC)
AULT YMPTOM ODES
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
C, D, G
t
Troubleshooting 5-11
