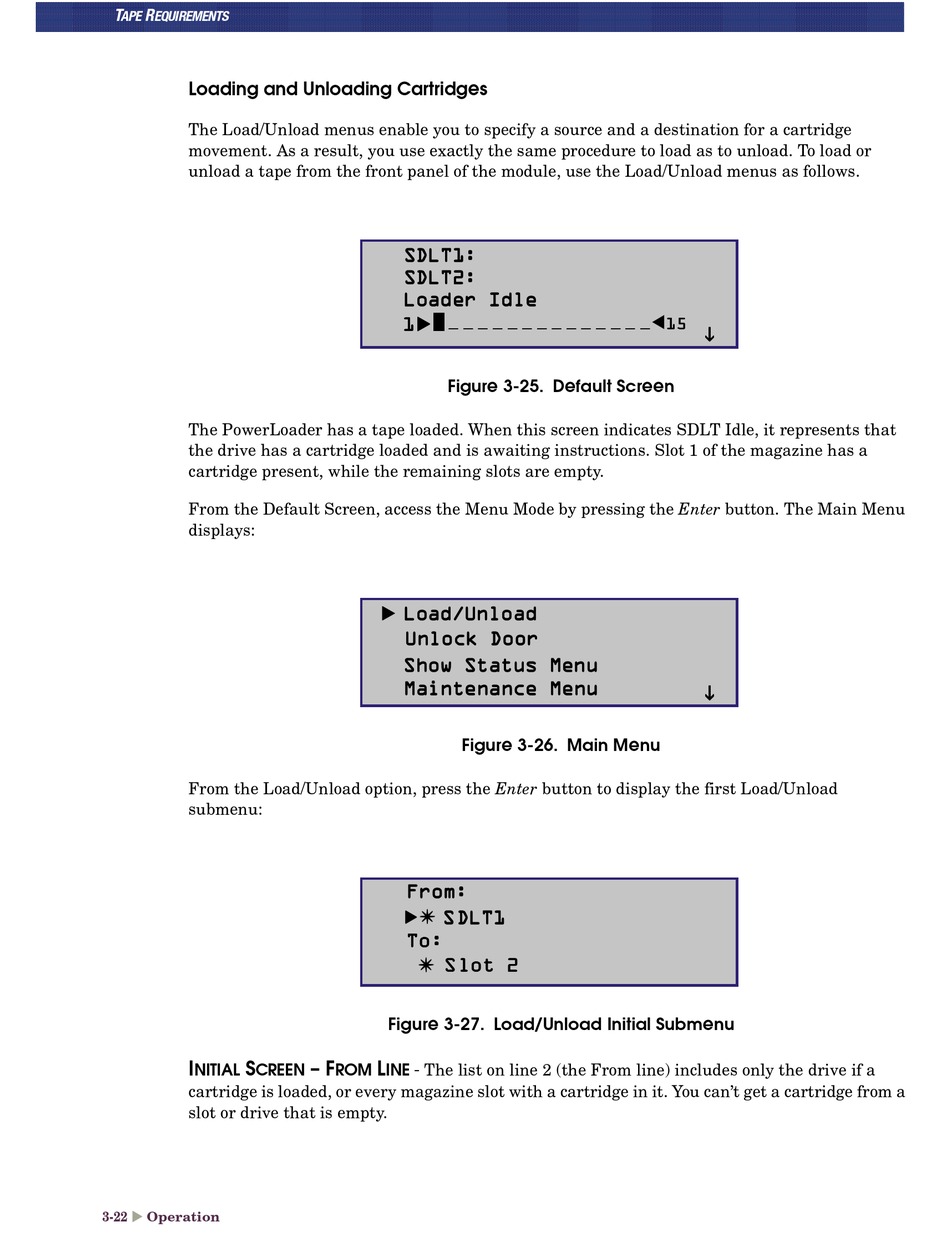

Loading and Unloading Cartridges

The Load/Unload menus enable you to specify a source and a destination for a cartridge
movement. As a result, you use exactly the same procedure to load as to unload. To load or
unload a tape from the front panel of the module, use the Load/Unload menus as follows.
The PowerLoader has a tape loaded. When this screen indicates SDLT Idle, it represents that
the drive has a cartridge loaded and is awaiting instructions. Slot 1 of the magazine has a
cartridge present, while the remaining slots are empty.
From the Default Screen, access the Menu Mode by pressing the Enter button. The Main Menu
displays:
From the Load/Unload option, press the Enter button to display the first Load/Unload
submenu:
I S
NITIAL CREEN
cartridge is loaded, or every magazine slot with a cartridge in it. You can't get a cartridge from a
slot or drive that is empty.
