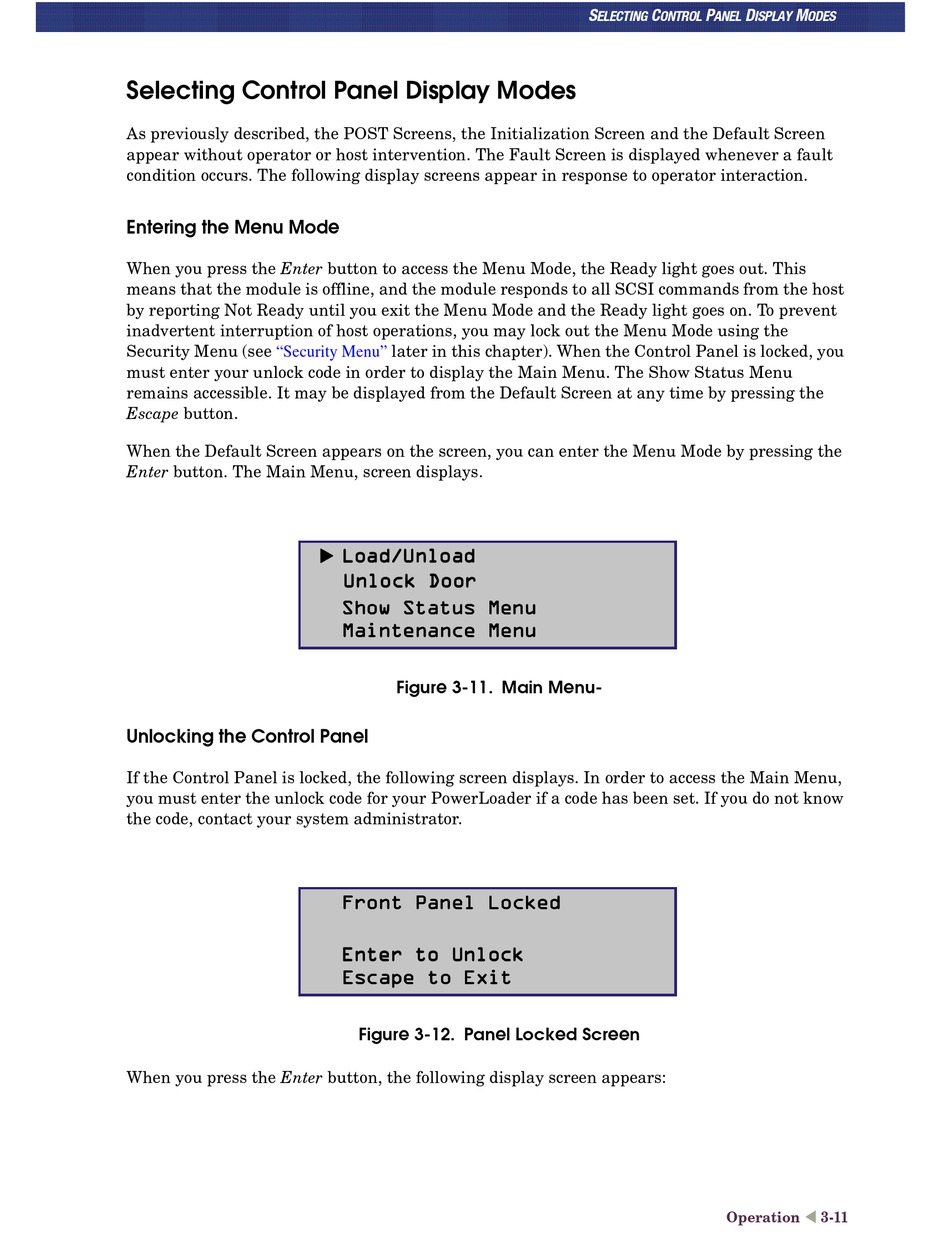

Selecting Control Panel Display Modes

As previously described, the POST Screens, the Initialization Screen and the Default Screen
appear without operator or host intervention. The Fault Screen is displayed whenever a fault
condition occurs. The following display screens appear in response to operator interaction.

Entering the Menu Mode

When you press the Enter button to access the Menu Mode, the Ready light goes out. This
means that the module is offline, and the module responds to all SCSI commands from the host
by reporting Not Ready until you exit the Menu Mode and the Ready light goes on. To prevent
inadvertent interruption of host operations, you may lock out the Menu Mode using the
Security Menu (see "Security Menu"
must enter your unlock code in order to display the Main Menu. The Show Status Menu
remains accessible. It may be displayed from the Default Screen at any time by pressing the
Escape button.
When the Default Screen appears on the screen, you can enter the Menu Mode by pressing the
Enter button. The Main Menu, screen displays.

Unlocking the Control Panel

If the Control Panel is locked, the following screen displays. In order to access the Main Menu,
you must enter the unlock code for your PowerLoader if a code has been set. If you do not know
the code, contact your system administrator.
When you press the Enter button, the following display screen appears:
later in this chapter). When the Control Panel is locked, you
Load/Unload Load/Unload Load/Unload Load/Unload
u u u u
Unlock Door Unlock Door
Unlock Door Unlock Door
Show Status Menu Show Status Menu
Show Status Menu Show Status Menu
Maintenance Menu Maintenance Menu Maintenance Menu Maintenance Menu
Figure 3-11. Main Menu-
Front Panel Locked Front Panel Locked Front Panel Locked Front Panel Locked
Enter to Unlock Enter to Unlock
Enter to Unlock Enter to Unlock
Escape to Eit Escape to Eit Escape to Eit Escape to Eit
Figure 3-12. Panel Locked Screen
S C P D
ELECTING ONTROL ANEL ISPLAY
Operation
M
ODES
t
3-11
