Device description

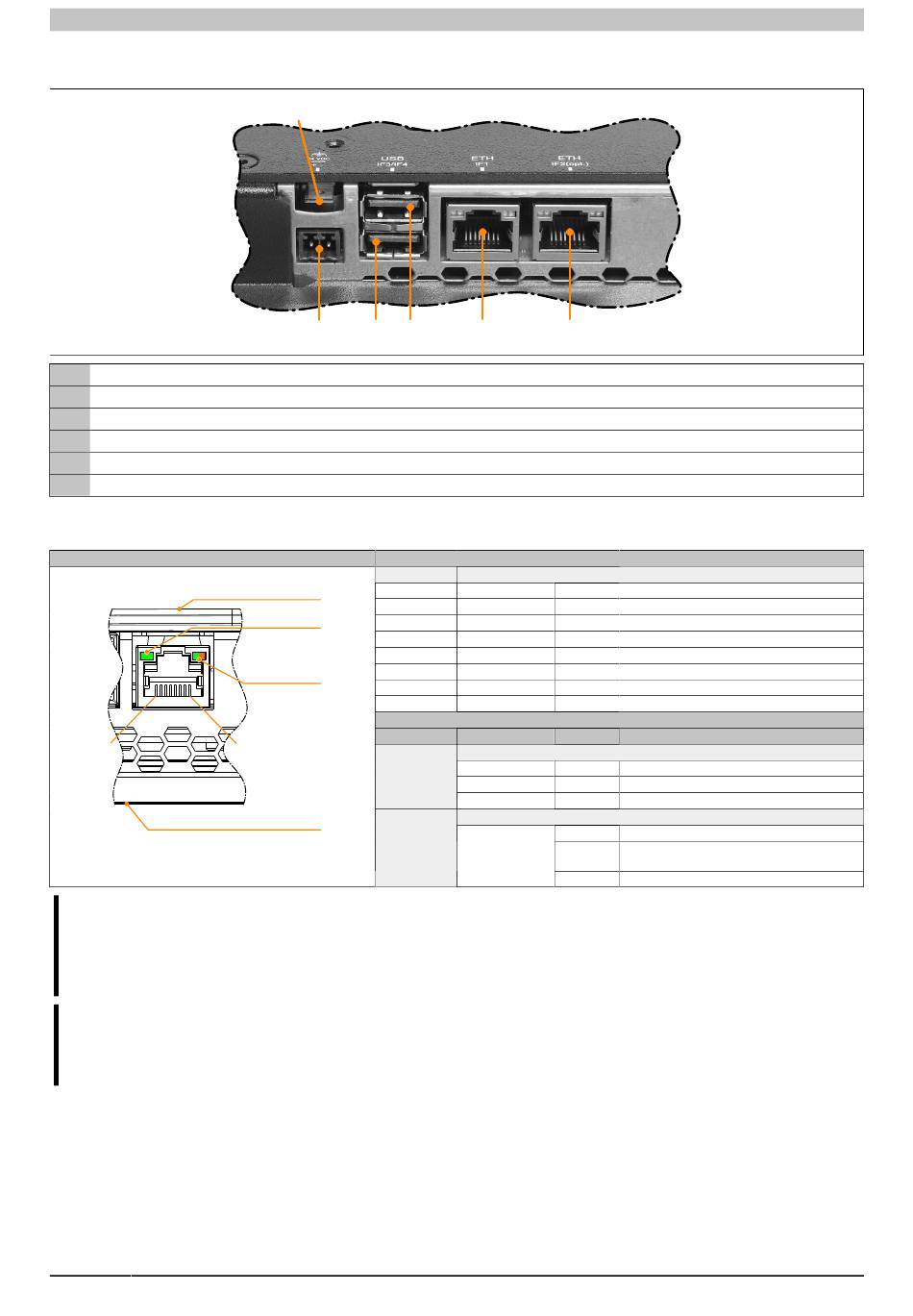

4.7 Connection elements

1 Grounding clip
2 Power supply
3 USB interface IF3
4 USB interface IF4
5 Ethernet interface IF1
6 Ethernet interface IF2 (depending on Power Panel variant)

4.7.1 Ethernet interface

Figure
8
Front (touch screen)
Shielded RJ45
(10BASE-T/100BASE-TX/1000BASE-T)
Danger!
External circuits connected to the device must be electrically isolated from the low voltage mains or
from lethal voltages using reinforced or double insulation and must meet the requirements for SELV/
PELV circuits.
Information:
For all Ethernet connections, only connections within a building are permitted, taking into account
maximum lengths.
26
①
② ③ ④
Terminal
Back
LNK/ACT
SPEED
LED
1
SPEED
LNK/ACT
⑤ ⑥
Ethernet
1 D1+ Data 1+
2 D1- Data 1-
3 D2+ Data 2+
4 D3+ Data 3+
5 D3- Data 3-
6 D2- Data 2-
7 D4+ Data 4+
8 D4- Data 4-
Diagnostic LEDs
Color Status
Transfer rate
Orange On
Green On
Orange + Green Off
Link/Activity
Green On
Blinking
Off
Pinout
Description
1000 Mbit/s
100 Mbit/s
10 Mbit/s
Link established to Ethernet network.
Link established to Ethernet network and Eth-
ernet activity taking place on bus.
No link established to Ethernet network.
