Multitest 0.5dV, 1dV & 2.5dV
Service and Repair Manual

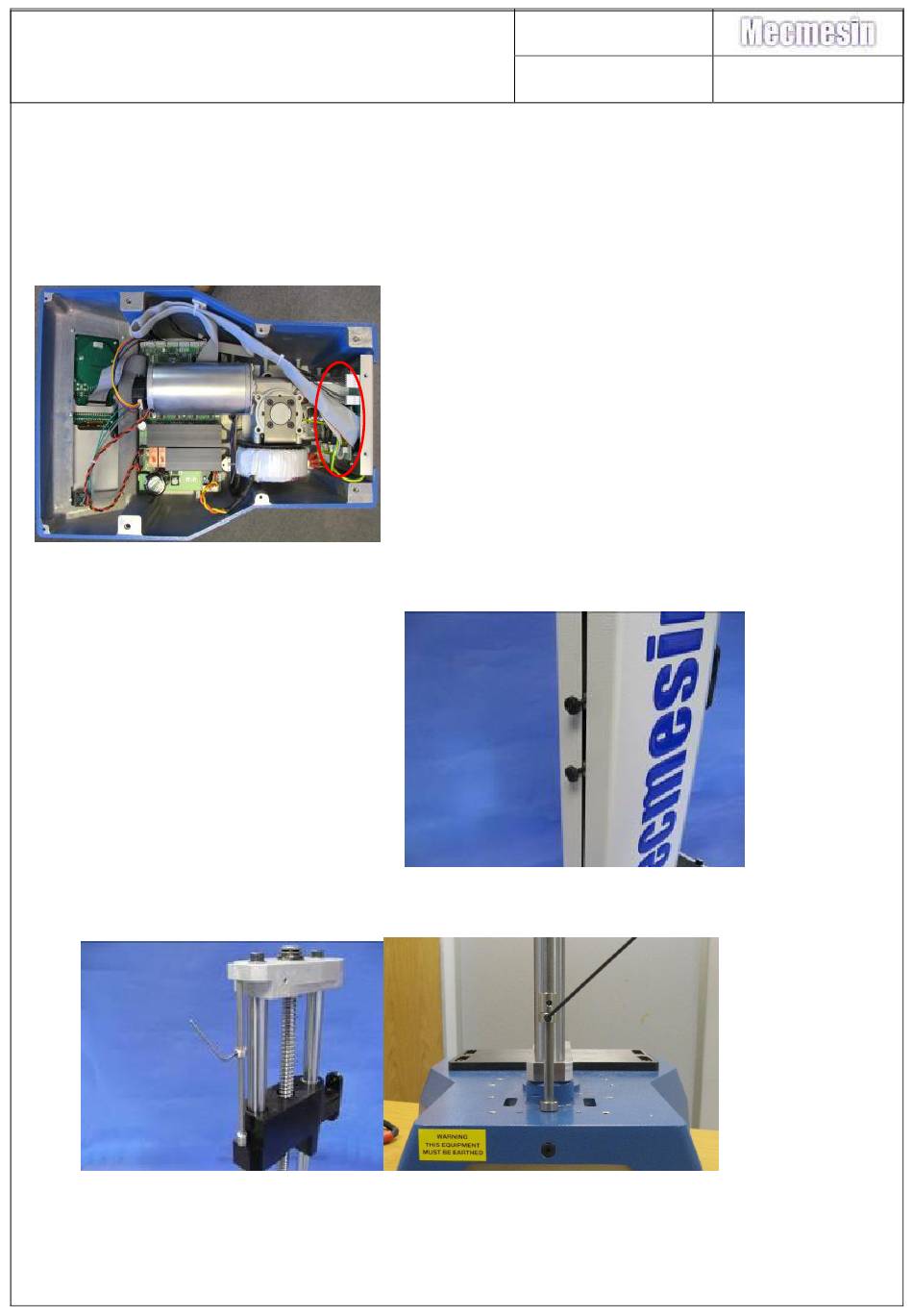

15. Limit Switch Assembly Replacement

NOTE:
71.
Remove the base plate as per 4, Instructions 1 to 5
73.
Partially remove the rear panel as per Section 7 and lay clear of the limit switch
74.
Remove knoblets from the two
adjustable limit switch collets
75.
Remove the shroud as per Section 12.
76.
Slacken grub screws retaining top and bottom fixed collets (note the relative positions of all
four collets)
General anti-static precautions should be observed.
72.
Number 022-780
Issue Number: 02
Locate the limit switch as identified in the
photograph
Page 20 of 32
