Front Panel Replacement - Mecmesin Multitest 0.5dV Service And Repair Manual

Multitest 0.5dV, 1dV & 2.5dV
Service and Repair Manual

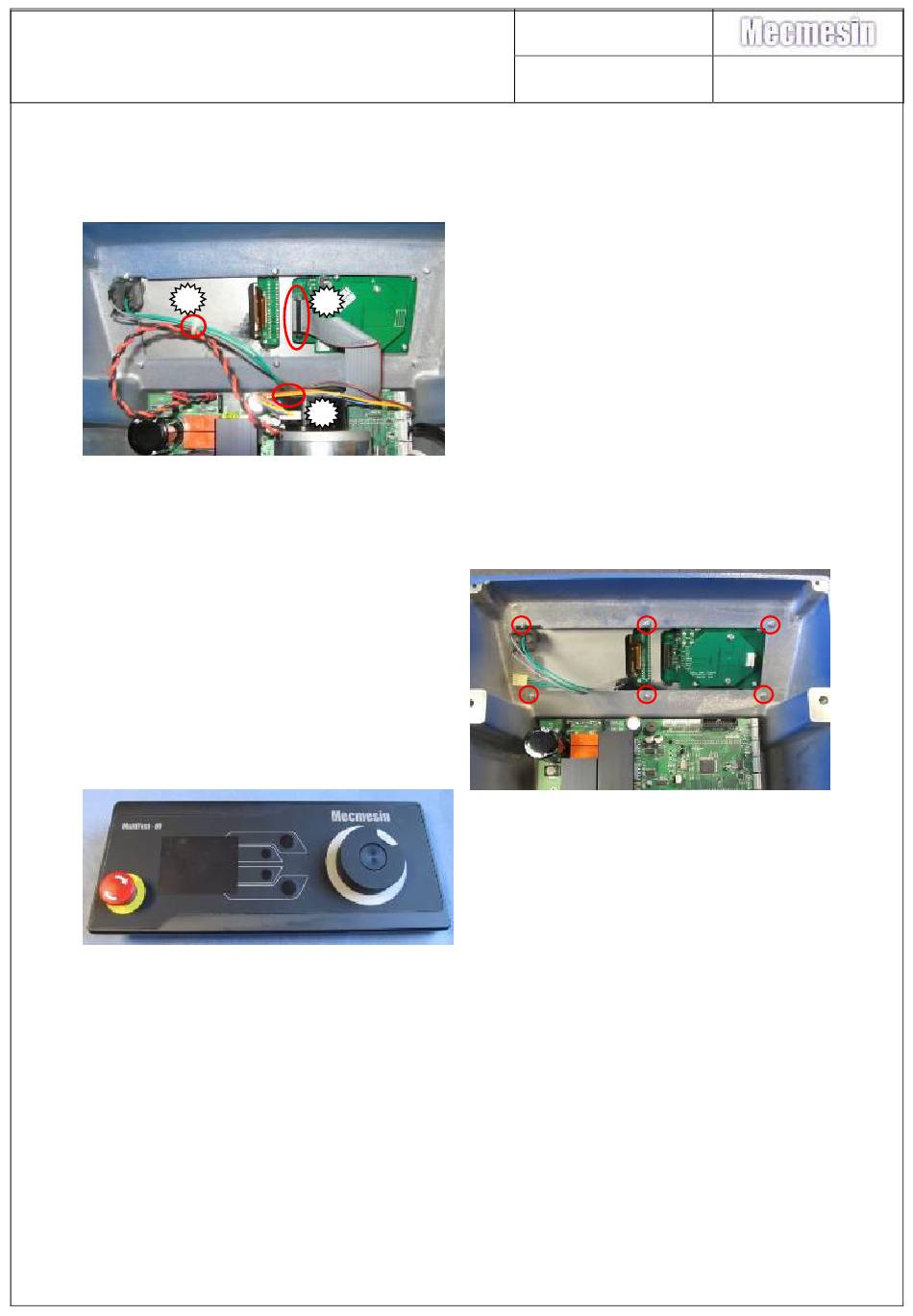

10. Front Panel Replacement

43.
Remove the base plate as per 4, Instructions 1 to 5
43
47.
Remove the 6-off M3 x 16 pan head
screws (420-478).
Note: When refitting the front panel, ensure that the self-adhesive EMC gasket
material is not disturbed. Replace damaged sections or the entire gasket if
necessary.
45
44
Refitting of the Front Panel
is the reverse of the above procedure
Number 022-780
Issue Number: 02
General anti-static precautions
NOTE:
should be observed.
44.
Cut any cable ties securing the
looms together.
45.
Disconnect the Emergency Stop
loom (352-188) from the
Emergency Stop button on the front
panel to E-STOP (x8) on the VIC
board
46.
Disconnect the DV 20 way front
panel loom from the front panel.
48.
The front panel may now be
removed from the base casing.
Page 13 of 32
