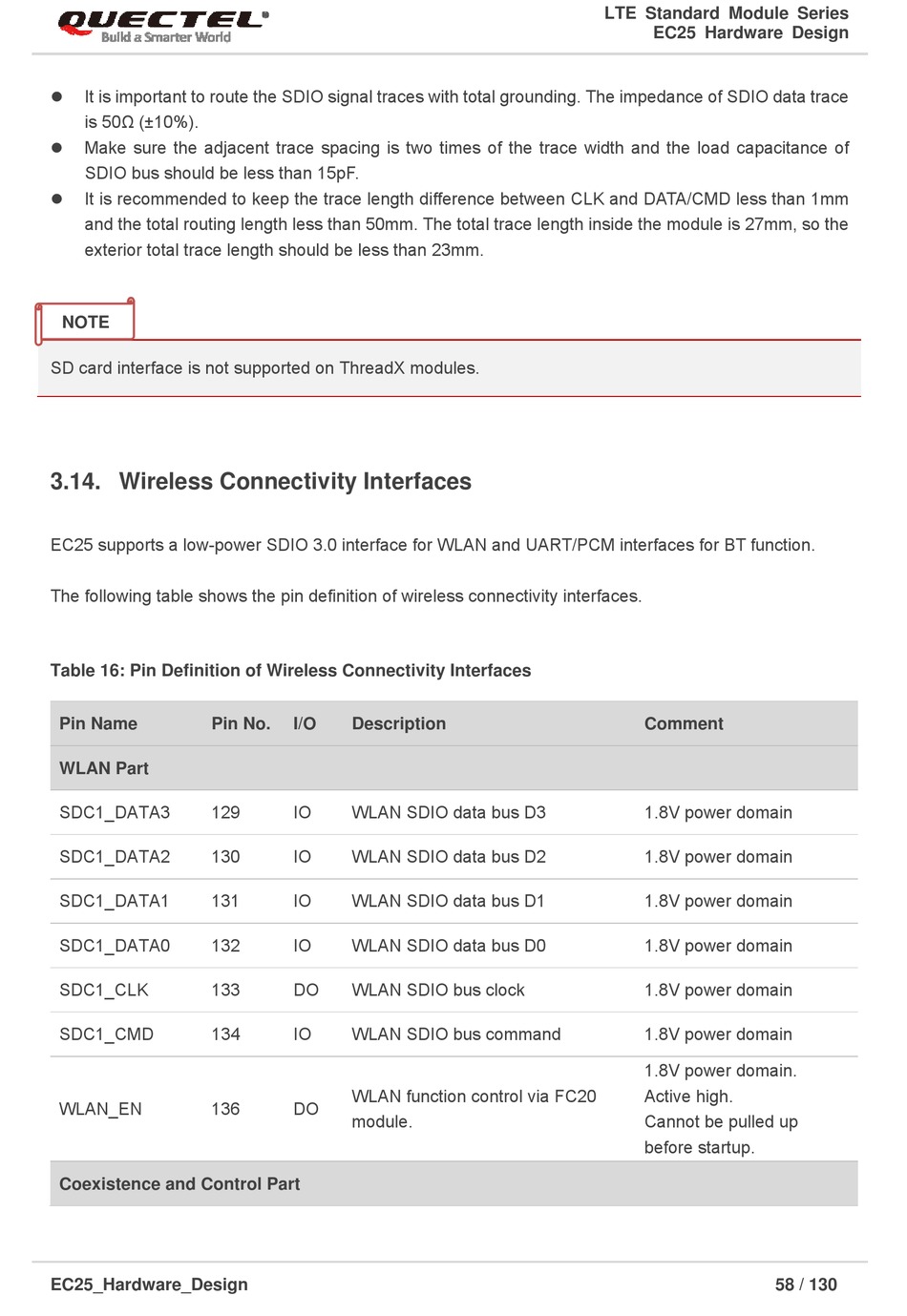

 It is important to route the SDIO signal traces with total grounding. The impedance of SDIO data trace
is 50Ω (±10%).
 Make sure the adjacent trace spacing is two times of the trace width and the load capacitance of
SDIO bus should be less than 15pF.
 It is recommended to keep the trace length difference between CLK and DATA/CMD less than 1mm
and the total routing length less than 50mm. The total trace length inside the module is 27mm, so the
exterior total trace length should be less than 23mm.

NOTE
SD card interface is not supported on ThreadX modules.

3.14. Wireless Connectivity Interfaces

EC25 supports a low-power SDIO 3.0 interface for WLAN and UART/PCM interfaces for BT function.
The following table shows the pin definition of wireless connectivity interfaces.
Table 16: Pin Definition of Wireless Connectivity Interfaces
Pin Name Pin No.
WLAN Part
SDC1_DATA3 129
SDC1_DATA2 130
SDC1_DATA1 131
SDC1_DATA0 132
SDC1_CLK 133
SDC1_CMD 134
WLAN_EN 136
Coexistence and Control Part
EC25_Hardware_Design
I/O Description
IO WLAN SDIO data bus D3
IO WLAN SDIO data bus D2
IO WLAN SDIO data bus D1
IO WLAN SDIO data bus D0
DO WLAN SDIO bus clock
IO WLAN SDIO bus command
WLAN function control via FC20
DO
module.
LTE Standard Module Series
EC25 Hardware Design
Comment
1.8V power domain
1.8V power domain
1.8V power domain
1.8V power domain
1.8V power domain
1.8V power domain
1.8V power domain.
Active high.
Cannot be pulled up
before startup.
