Quectel EC25-AUX Hardware Design page 54

VDD_EXT
RI
DCD
CTS
RTS
DTR
TXD
RXD
Please visit http://www.ti.com for more information.
Another example with transistor translation circuit is shown as below. The circuit design of dotted line
section can refer to the design of solid line section, in terms of both module's input and output circuit
designs, but please pay attention to the direction of connection.
NOTE
Transistor circuit solution is not suitable for applications with high baud rates exceeding 460Kbps.
EC25_Hardware_Design
VCCA
0.1uF
120K
OE
A1
A2
A3
A4
A5
A6
A7
51K
A8

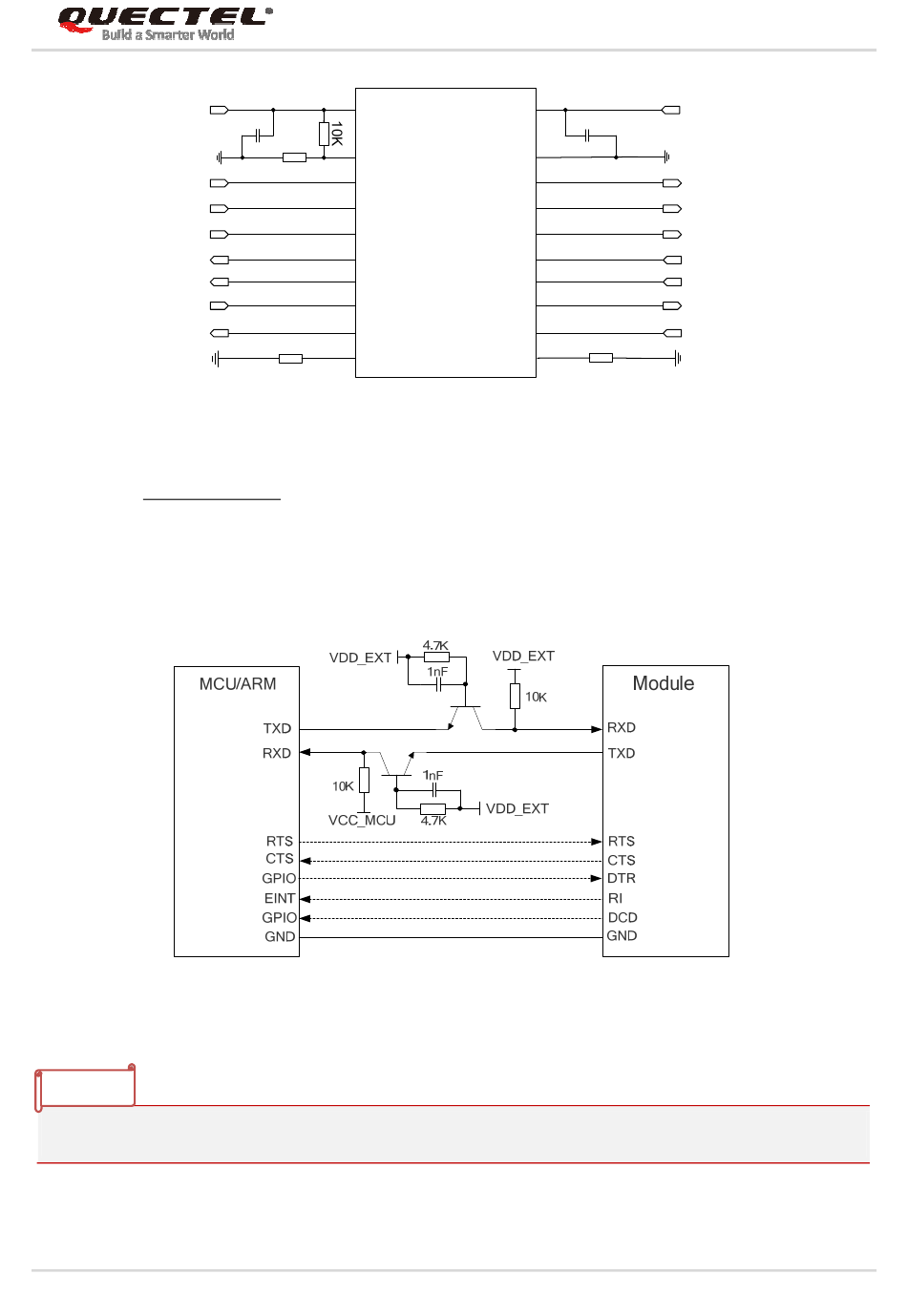

Figure 20: Reference Circuit with Translator Chip
Figure 21: Reference Circuit with Transistor Circuit
VCCB
0.1uF
GND
B1
B2
Translator
B3
B4
B5
B6
B7
B8
LTE Standard Module Series
EC25 Hardware Design
VDD_MCU
RI_MCU
DCD_MCU
CTS_MCU
RTS_MCU
DTR_MCU
TXD_MCU
RXD_MCU
51K
53 / 130
