NOTES
1. Please make sure that VBAT is stable before pulling down PWRKEY pin. It is recommended that the
time between powering up VBAT and pulling down PWRKEY pin is no less than 30ms.
2. PWRKEY can be pulled down directly to GND with a recommended 10KΩ resistor if module needs to
be powered on automatically and shutdown is not needed.

3.7.2. Turn off Module

The following procedures can be used to turn off the module:
 Normal power-off procedure: Turn off the module using the PWRKEY pin.
 Normal power-off procedure: Turn off the module using AT+QPOWD command.

3.7.2.1. Turn off Module Using the PWRKEY Pin

Driving the PWRKEY pin to a low level voltage for at least 650ms, the module will execute power-off
procedure after the PWRKEY is released. The power-off scenario is illustrated in the following figure.
VBA T
PWRKEY
STATUS
(OD)
Module
Status

3.7.2.2. Turn off Module Using AT Command

It is also a safe way to use AT+QPOWD command to turn off the module, which is similar to turning off the
module via PWRKEY pin.
Please refer to document [2] for details about AT+QPOWD command.
EC25_Hardware_Design
≥
650ms
RUNNING

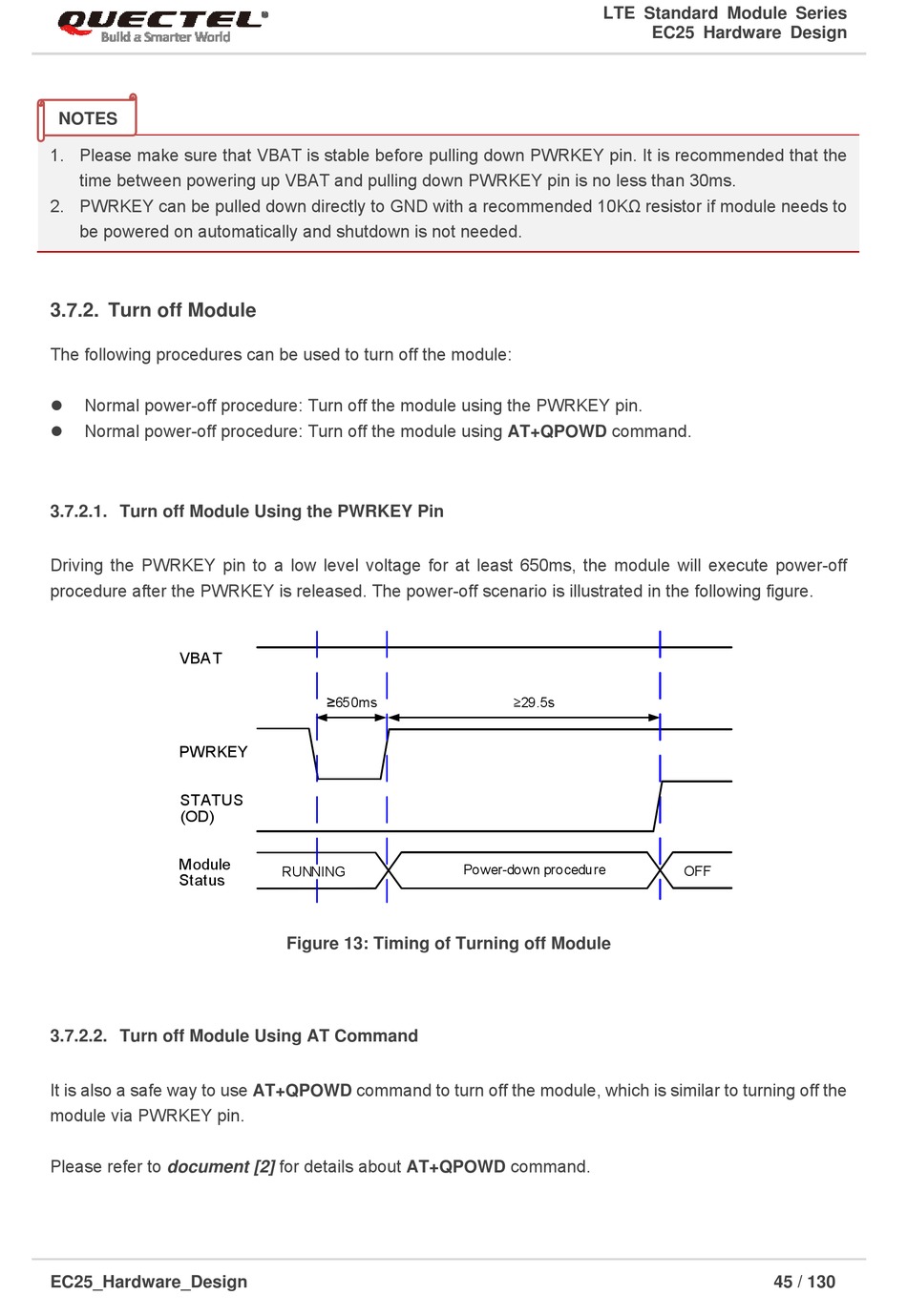

Figure 13: Timing of Turning off Module
