7.2. Recommended Footprint
NOTES
1.
The keepout area should not be designed.
2.
For easy maintenance of the module, please keep about 3mm between the module and other
components in the
EC25_Hardware_Design

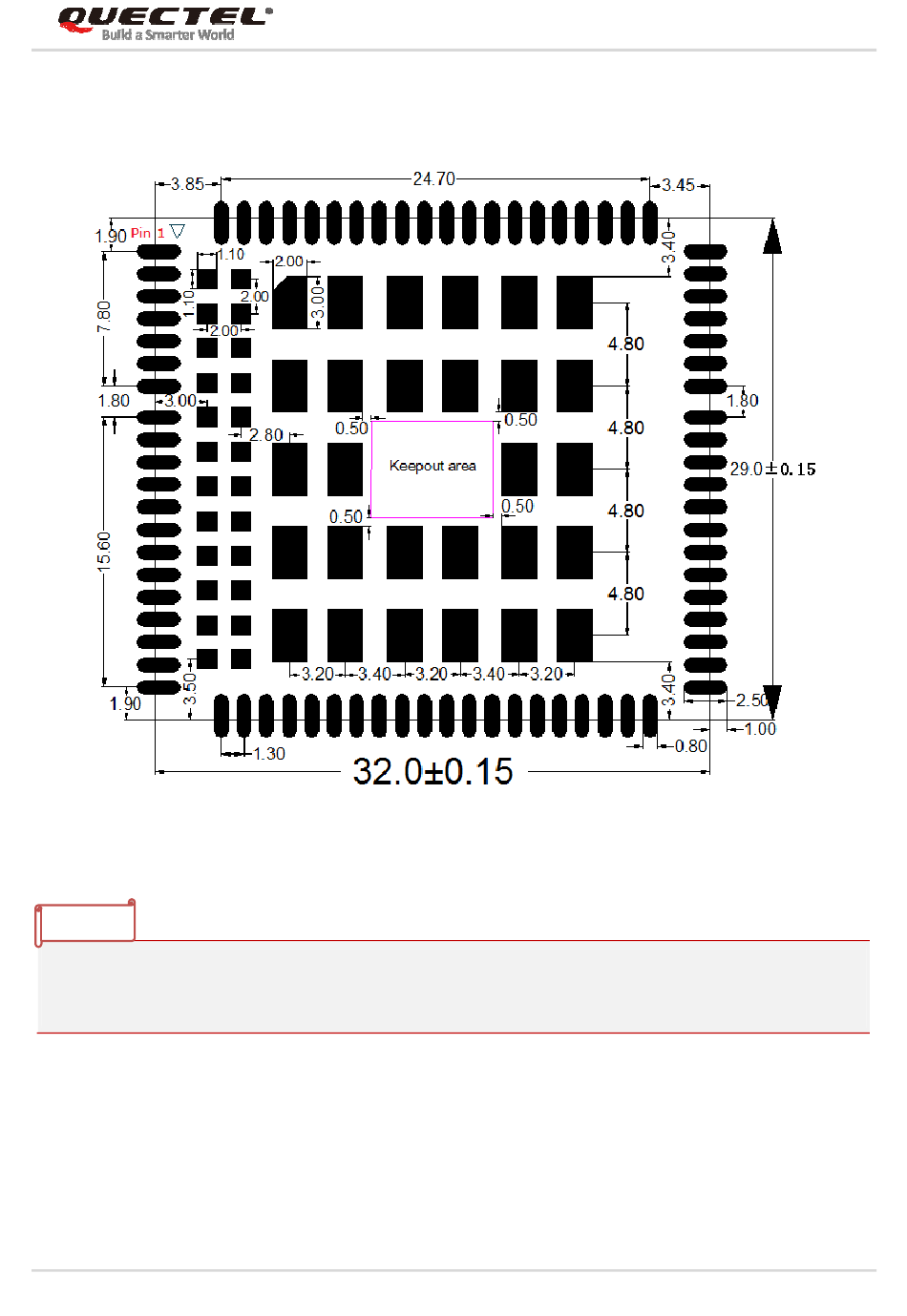

Figure 46: Recommended Footprint (Top View)
host PCB.
LTE Standard Module Series
EC25 Hardware Design
118 / 130
