Quectel EC25-AUX Hardware Design page 118

LTE Standard Module Series
EC25 Hardware Design
32.0 ＋ /-0.15
1.90
1.30 3.85
Pin 1
1.30
1.1
1.1
2.0
5.96
2.0
3.0
2.0
0.87
3.0 1.8
1.8
1.15
2.8
2.15
4.82
1.05
1.6
6.8
1.7
0.8
3.2 3.4 3.2 3.4 3.2
4.37
2.49
1.9
2.4 1.5
3.45

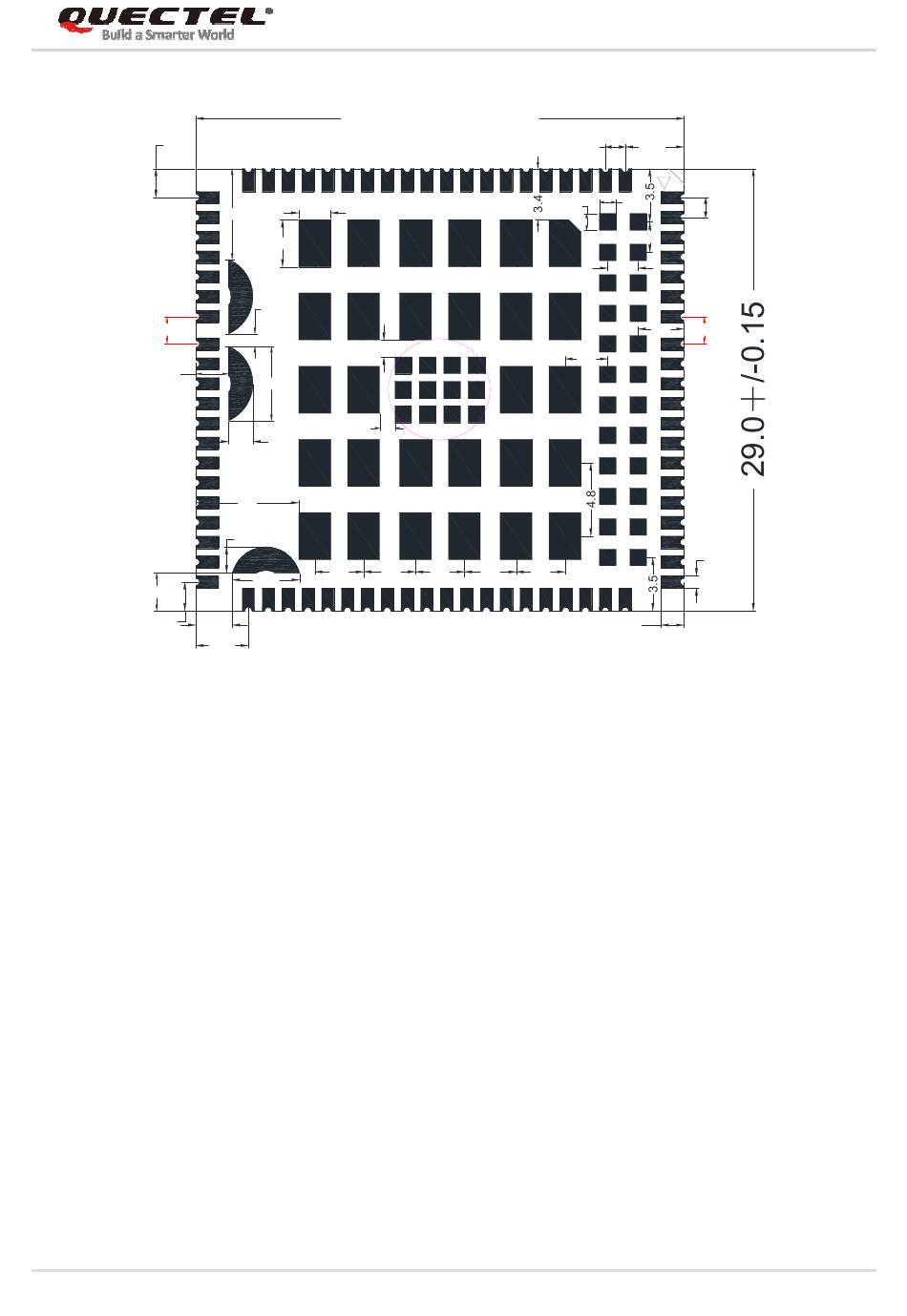

Figure 45: Module Bottom Dimensions (Bottom View)
