Hardware:
The W_DISABLE# pin is pulled up by default. Driving it to low level will let the module enter airplane
mode.
Software:
AT+CFUN command provides the choice of the functionality level through setting <fun> into 0, 1 or 4.
 AT+CFUN=0: Minimum functionality mode. Both (U)SIM and RF functions are disabled.
 AT+CFUN=1: Full functionality mode (by default).
 AT+CFUN=4: Airplane mode. RF function is disabled.
NOTES
1. The W_DISABLE# control function is disabled in firmware by default. It can be enabled by
AT+QCFG="airplanecontrol" command, and this command is under development.
2. The execution of AT+CFUN command will not affect GNSS function.

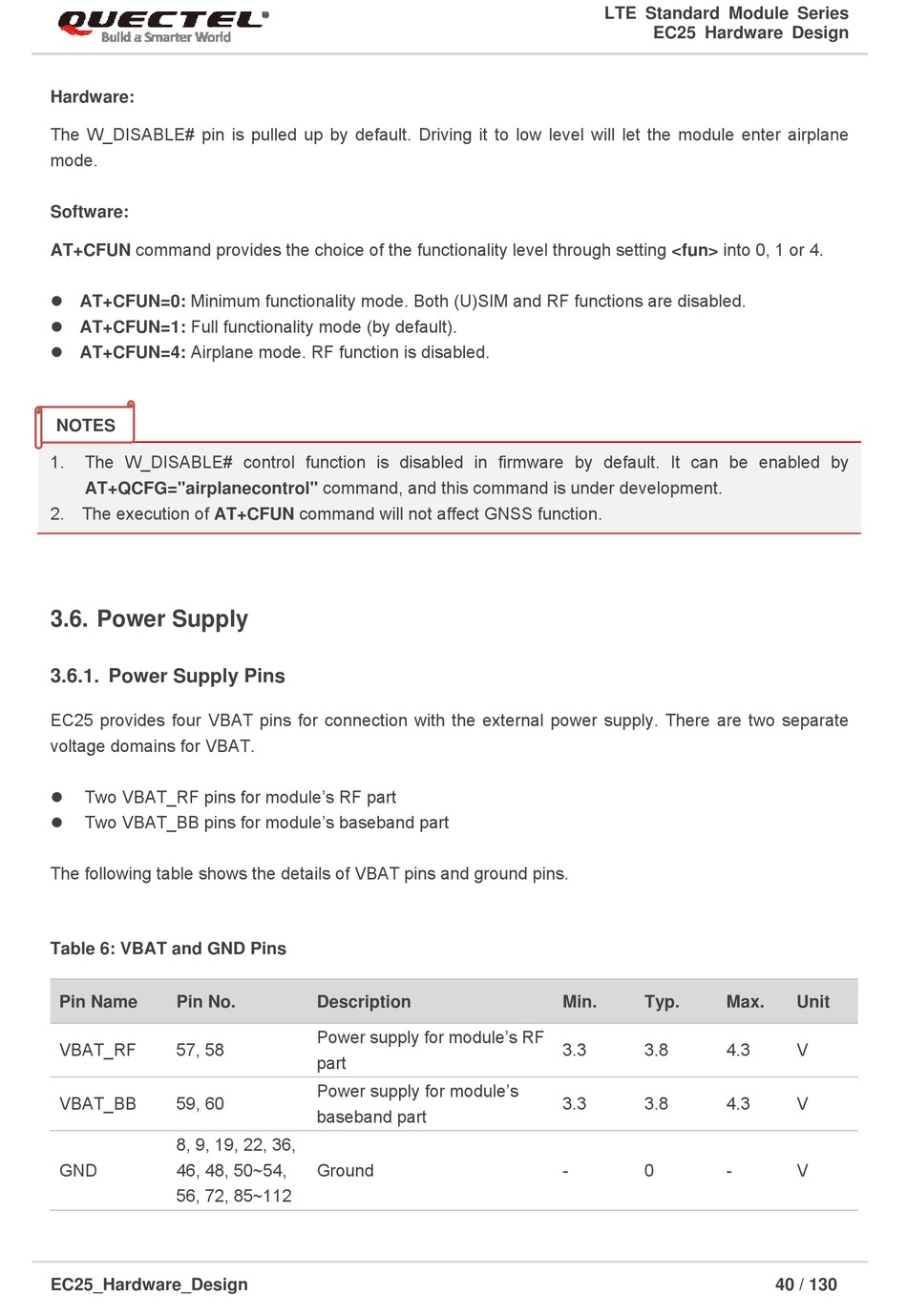

3.6. Power Supply

3.6.1. Power Supply Pins

EC25 provides four VBAT pins for connection with the external power supply. There are two separate
voltage domains for VBAT.
 Two VBAT_RF pins for module's RF part
 Two VBAT_BB pins for module's baseband part
The following table shows the details of VBAT pins and ground pins.
Table 6: VBAT and GND Pins
Pin Name Pin No.
VBAT_RF 57, 58
VBAT_BB 59, 60
8, 9, 19, 22, 36,
GND 46, 48, 50~54,
56, 72, 85~112
EC25_Hardware_Design
Description
Power supply for module's RF
part
Power supply for module's
baseband part
Ground
LTE Standard Module Series
EC25 Hardware Design
Min. Typ. Max.
3.3 3.8 4.3
3.3 3.8 4.3
- 0 -
Unit
V
V
V
40 / 130
