RZ/G1E SODIMM Development Platform Hardware User Guide
Pin
Pin Name
No
22 D4
23 D1
24 D0
¹ VI1 and MSIOF1 are shared the same SODIMM Edge pins. Hence either one interface only can be connected to the
SODIMM Edge in the RZ/G1E SOM.
2.7

Additional Features

2.7.1 Reset Switch

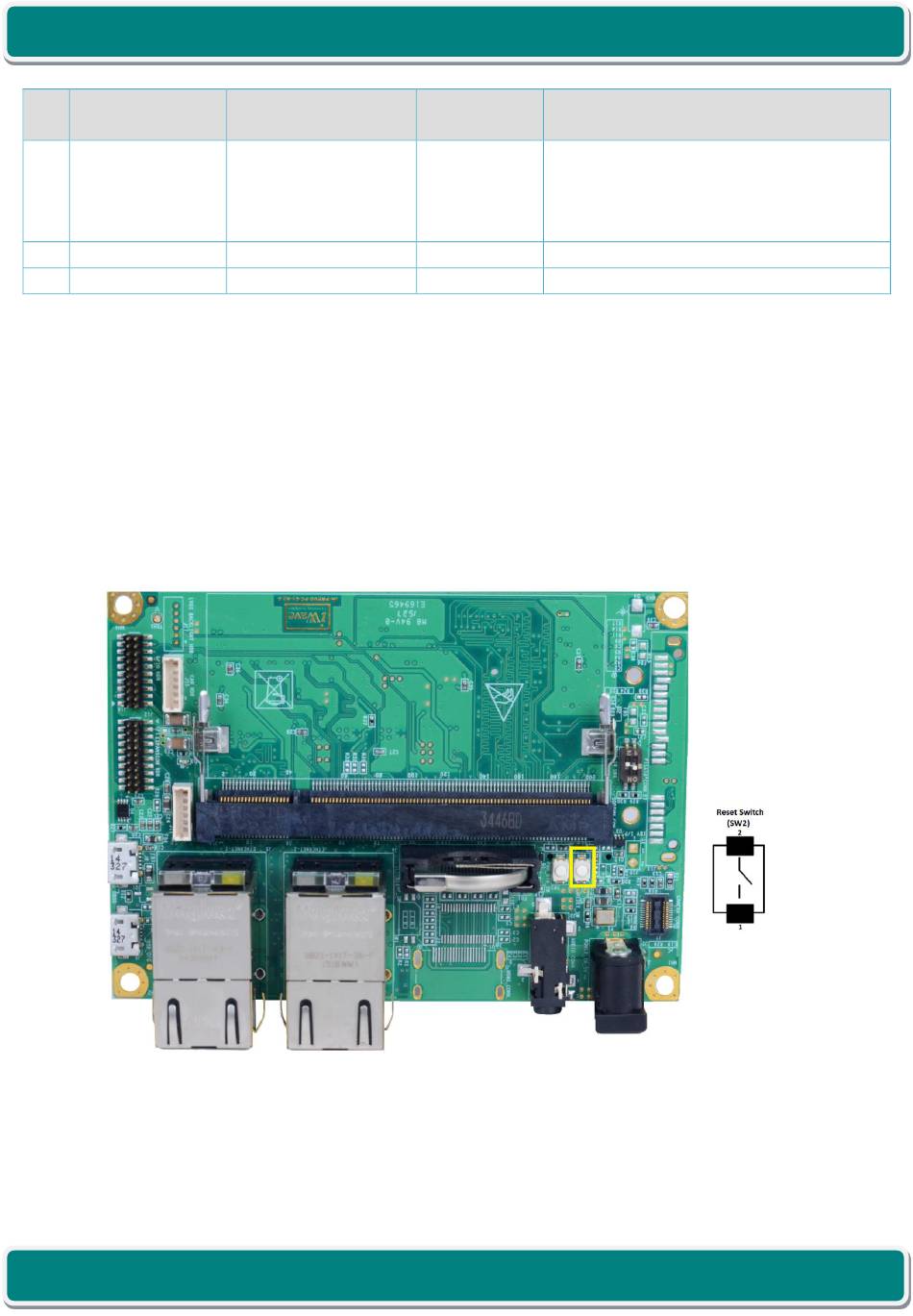

RZ/G1E SODIMM carrier board supports Reset Push button switch (SW2) to reset the RZ/G1E SODIMM SOM.
"POR_B" signal in SODIMM Edge connector is directly connected from Reset Push button switch This Reset Push
button switch (SW2) is physically located at the top of the board as shown below.
iWave Systems Technologies Pvt. Ltd.
Signal Name
MSIOF1_TXD/VI1_DAT
A2¹
NC
NC

Figure 14: Reset Switch

Signal Type/
Termination
I, 3.3V CMOS Camera Data2.
Note: Same pin optionally connected to
Expansion connector J12 pin15 through
resistor and default not populated.
- No Connect.
- No Connect.
Description
REL1.1
Page 43 of 71
