Additional Features

2.8.1 MIPI CSI Camera Connector

i.MX 8M Mini SODIMM carrier board supports MIPI CSI Camera interface through i.MX 8M Mini CPU's MIPI CSI interface.
These signals from SODIMM Edge connector is directly connected to 40pin flip connector (J23) which comprises of MIPI CSI
signals, control signals and GPIOs for MIPI Camera and MIPI Display interface. By default Omnivison's OV5640 MIPI Camera
is tested in i.MX 8M Mini SODIMM development platform.

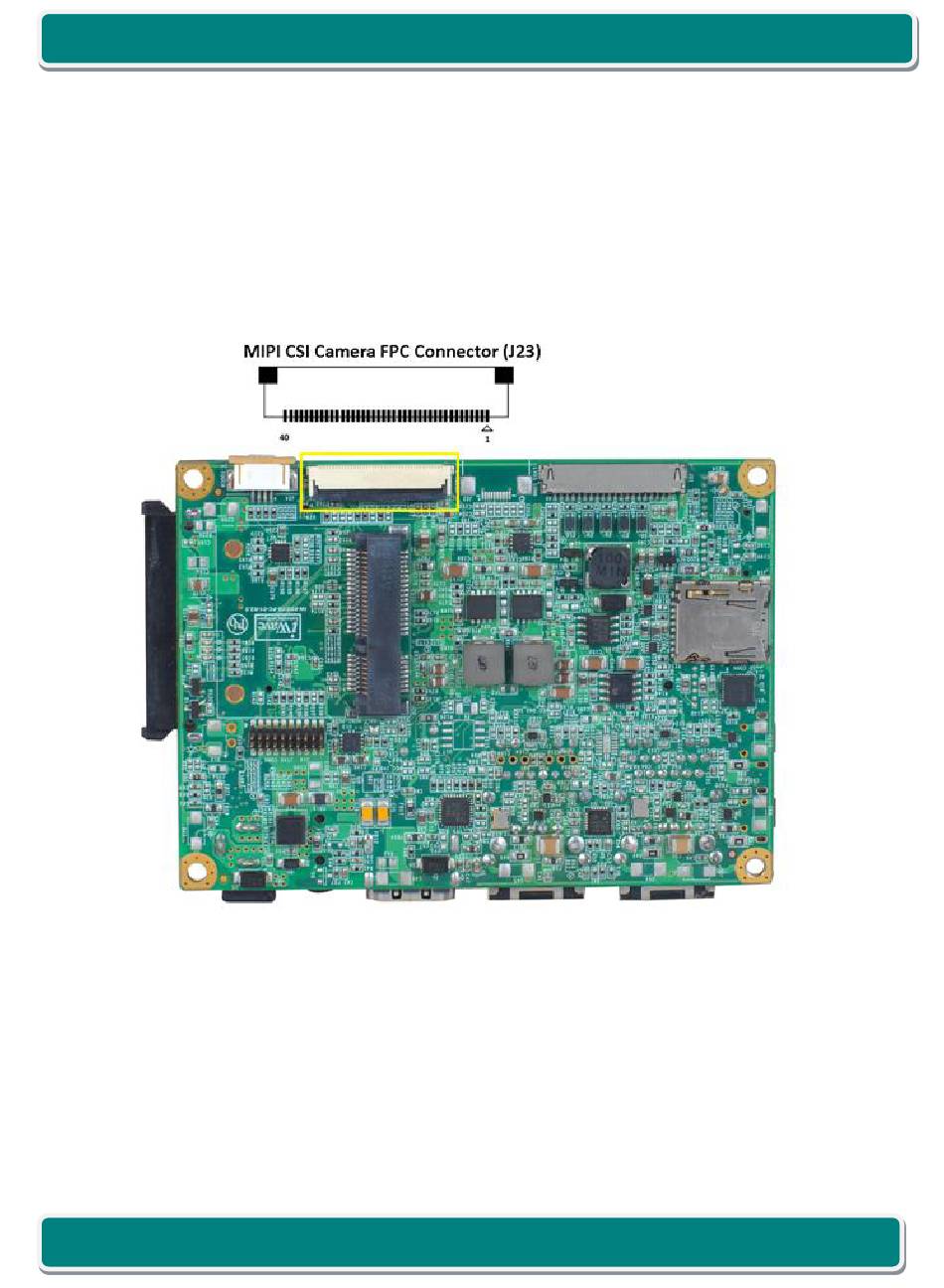

Figure 12: MIPI CSI Camera FPC Connector

Note: The OV5640 MIPI Camera is supported in SODIMM MIPI daughter board. For more information on daughter board
please contact iWave.
