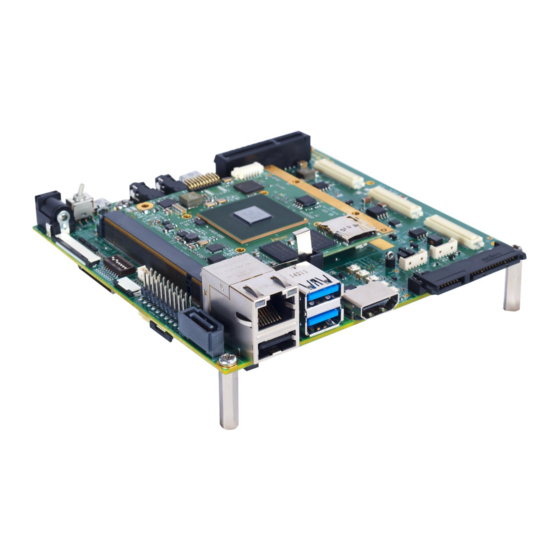

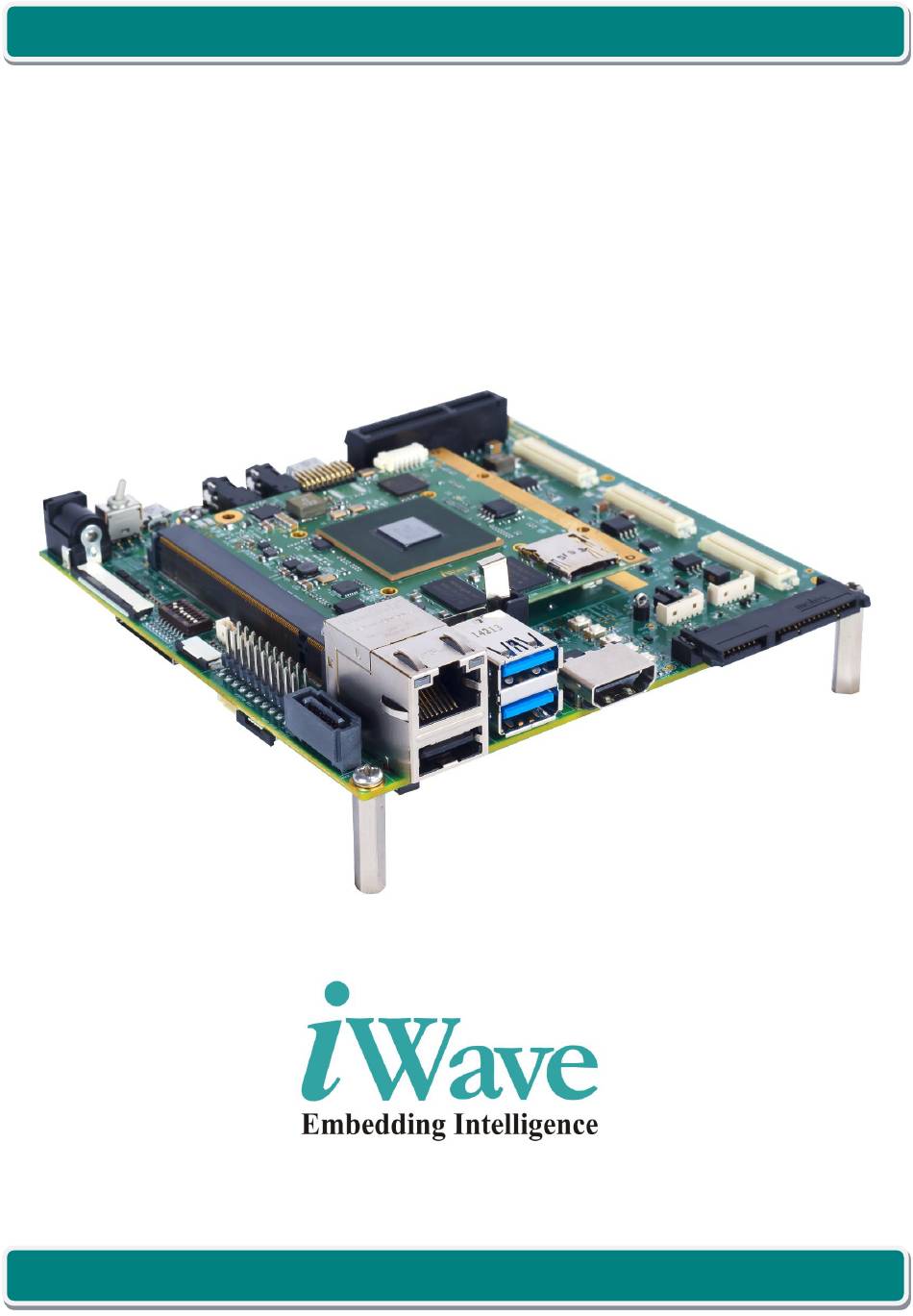

- Page 1 RZ/G1M/G1N Qseven Development Platform Hardware User Guide iW-RainboW-G20D RZ/G1M/G1N Qseven Development Platform Hardware User Guide REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 1 of 89...
- Page 2 If you are not the intended recipient (or authorized to receive for the recipient), you are hereby notified that any disclosure, copying distribution or use of any of the information contained within this document is STRICTLY PROHIBITED. Thank you. “iWave Systems Tech. Pvt. Ltd.” REL 1.0 iWave Systems Technologies Pvt.
- Page 3 (including liability to any person by reason of negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.
-
Page 4: Table Of Contents
Carrier Board Expansion Connectors ......................62 ARCHITECTURE AND DESIGN – CAMERA ADD-ON MODULE ................68 RZ/G1M/G1N Camera Add-On Module Block Diagram .................. 68 RZ/G1M/G1N Camera Add-On Module Features ................... 69 REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 4 of 89... - Page 5 4.3.3 Guidelines to insert the Qseven SOM into Carrier Board ................82 ORDERING INFORMATION .......................... 83 APPENDIX I ..............................84 Camera Add-On Module Integration Procedure ..................... 84 8bit CMOS Camera Connecting Procedure ..................... 88 REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 5 of 89...
- Page 6 Figure 40: Insert Non-Metallic Flat Washer ........................86 Figure 41: Insert Split Lock Washer ..........................87 Figure 42: Tighten the Nut .............................. 87 Figure 43: Camera Connection............................88 Figure 44: Camera Lens Cap ............................88 REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 6 of 89...
- Page 7 Table 30: Power Output Specification ..........................79 Table 31: Environmental Specification ........................... 80 Table 32: Orderable Product Part Numbers ........................83 Table 33: Camera Add-On Module Accessories ......................84 REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 7 of 89...
-
Page 8: Introduction
RZ/G1M/G1N processor. With the 120mmx120mm Nano ITX size, Qseven carrier board is highly packed with all the necessary on-board connectors to validate the Qseven features of RZ/G1M/G1N Qseven SOM. iWave also supports Camera Add-On Module for RZ/G1M/G1N Qseven Development platform to validate Expansion connector interfaces of RZ/G1M/G1N Qseven SOM. - Page 9 SDIO Secure Digital Input Output SDHI SD Card Host Interface Serial Sound Interface System On Module UART Universal Asynchronous Receiver/Transmitter Universal Serial Bus USB OTG USB On The Go REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 9 of 89...
-
Page 10: Terminlogy Description
References RZ/G1M/G1N Qseven SOM Hardware User Guide Renesas’ RZ/G1M/G1N CPU Hardware User Manual Qseven® Specification Version 2.0 Qseven® Design Guide REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 10 of 89... -
Page 11: Architecture And Design - Qseven Carrier Board
This section provides detailed information about the RZ/G1M/G1N Qseven Development Platform carrier board features with high level block diagram and detailed information about each block. RZ/G1M/G1N Qseven Carrier Board Block Diagram iW-RainboW-G20D-RZ/G1M/G1N Qseven Carrier Board Block Diagram Qseven MXM Connector 12V DC... -
Page 12: Rz/G1M/G1N Qseven Carrier Board Features
7” RGB LCD Connector through LVDS to RGB transmitter with Capacitive Touch Additional Features SPI Flash (MSIOF2 with SS#1) RTC Coin Cell holder Fan Header 20-Pin JTAG Header (Optional) REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 12 of 89... - Page 13 Qseven carrier board. The RZ/G1M/G1N Qseven SOM Expansion conenctor2 interfaces are one to one directly connected to Qseven carrier board expansion connector2 in Qseven carrier board. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 13 of 89...
-
Page 14: Qseven Mxm Connector
This Qseven MXM Edge mating connector (J11) is physically located at the top of the board as shown below. Figure 2: Qseven MXM Connector REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 14 of 89... -
Page 15: Table 3: Qseven Mxm Connector Pin Out
This pin is connected to RJ45 Magjack J22. GBE_CTREF NC in RZ/G1M/G1N Qseven SOM. This pin is connected to RJ45 Magjack J22 centre tap pins through resistor and default populated in carrier board. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 15 of 89... - Page 16 Note: This pin is optionally connected to Expansion Connector3 (J14) 12 Pin. SATA0_TX+ NC in RZ/G1M/G1N Qseven SOM. This pin is connected to 22pin SATA Connector (J25) SATA Channel0 Transmit differential pair positive. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 16 of 89...
- Page 17 O, 3.3V CMOS/ SDHI2 Card Detect. 10K PU This pin is connected from SD/MMC connector (J30). SDIO_LED GPIO_SD1_LED(GP1_ I, 3.3V CMOS SDIO LED. This pin is connected to D8 Green LED. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 17 of 89...
- Page 18 This pin is connected to I2S audio codec. SMB_CLK/ I2C5_SCL I, 3.3V OD I2C5 clock. GP1_I2C_CLK This pin is connected to PCIe Clock buffer, PCIex4 connector, Mini PCIe connector and Expansion Connector3 (J14) 77 Pin. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 18 of 89...
- Page 19 Expansion connector3 (J14) 53 Pin. WDOUT NC in RZ/G1M/G1N Qseven SOM. This pin is connected to Expansion connector3 (J14) 15 Pin in carrier board. Power Ground. Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 19 of 89...
- Page 20 TypeA connector (J23) top port in carrier board. USB_P4+/ NC in RZ/G1M/G1N Qseven SOM. USB_SSRX1+ This pin is connected to Dual stack USB3.0 TypeA connector (J23) top port in carrier board. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 20 of 89...
- Page 21 This pin is connected to Micro USB OTG connector (J2). USB_P0+ USB_P0+ IO, DIFF USB 2.0 Host Port0 Data positive. This pin is connected to USB TypeA combo connector (J22). Power Ground. Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 21 of 89...
- Page 22 (J27) in carrier board. LVDS_PPEN GPIO_LVDS_PPEN(G I, 3.3V CMOS/ LCD Panel Power Enable. P7_25) 10K PU LVDS_BLEN GPIO_LVDS_BLEN(GP I, 3.3V CMOS/ LCD Panel Backlight Enable Control. 5_14) 10K PU REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 22 of 89...
- Page 23 This pin is directly connected to Expansion Connector3 (J14) 19 Pin in carrier board. GP2_I2C_CLK NC in RZ/G1M/G1N Qseven SOM. /LVDS_DID_CLK This pin is directly connected to Expansion Connector3 (J14) 37 Pin in carrier board. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 23 of 89...
- Page 24 (J24) in carrier board. DP_AUX- NC in RZ/G1M/G1N Qseven SOM. Note: This pin is directly connected to Expansion Connector3 (J14) 54 Pin in carrier board. Power Ground. Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 24 of 89...
- Page 25 This pin is connected to PCIe x 4 connector (J4) and Mini PCIe connector. PCIE_CLK_REF- PCIe_REFCLK_DN I, DIFF PCIe differential reference clock negative. This pin is connected to PCIe clock buffer. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 25 of 89...
- Page 26 This pin is connected to Data UART Header (J1) 06 Pin. PCIE1_TX+ NC in RZ/G1M/G1N Qseven SOM. This pin is connected to PCIex4 connector (J4) in carrier board. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 26 of 89...
- Page 27 Power Ground. 185 LPC_AD0/ GPIO0 Q7_GPIO0_(GP2_12) IO,3.3VCMOS/ General purpose Input/Output0. 10K PU This GPIO is used for Touch Interrupt and connected from Capacitive Touch Connector or Resistive Touch Controller. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 27 of 89...
- Page 28 This pin is connected to buzzer in carrier board. 195 FAN_TACHOIN/ NC in RZ/G1M/G1N Qseven SOM. GP_TIMER_IN This pin is connected to Fan Header (J9) Pin in carrier board. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 28 of 89...
- Page 29 SCIF0 serial data receiver. This pin is connected from Serial to USB converter for Debug console. Note: This pin is also connected to JTAG Header (J16) 05 Pin through buffer. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 29 of 89...
- Page 30 O, 5V Power Supply Voltage. 228 VCC VCC_5V O, 5V Power Supply Voltage. 229 VCC VCC_5V O, 5V Power Supply Voltage. 230 VCC VCC_5V O, 5V Power Supply Voltage. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 30 of 89...
-
Page 31: On Board Switches
The RZ/G1M/G1N Qseven carrier board has power ON/OFF switch (SW1) to control the Main power Input On/Off functionality. This power ON/OFF switch is physically located at the top of the board as shown below. Figure 3: Power ON/OFF Switch REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 31 of 89... -
Page 32: Board Configuration Switch
The functionality of Board configuration switch (SW2) in RZ/G1M/G1N carrier board is explained in the following table. All the bits of Board configuration switch is not used in RZ/G1M/G1N carrier board and so only the required bits are explained with default setting highlighted. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 32 of 89... -
Page 33: Reset Switch
“RSTBTN” signal of Qseven MXM connector is directly connected from Reset Push button switch. This Reset Push button switch (SW4) is physically located at the top of the board as shown below. Figure 5: Reset Switch REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 33 of 89... -
Page 34: Serial Interface Features
Board configuration switch (SW2) to the appropriate position. Since RZ/G1M/G1N Qseven SOM supports only Debug UART (SCIF0) on Qseven Edge connector by default, 7 bit of Board configuration switch must be set to Debug UART. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 34 of 89... -
Page 35: Data Uart Header
UART_RXD SCIFB1_RXD(GP7_10) I, 3.3V CMOS SCIFB1 interface Receive signal. UART_TXD SCIFB1_TXD(GP7_12) O, 3.3V CMOS SCIFB1 interface Transmit signal. UART_RTS# SCIFB1_RTS#(GP7_9) I, 3.3V CMOS SCIFB1 interface Ready To Send signal. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 35 of 89... -
Page 36: High Speed Interface Features
IO, DIFF USB3.0 Host Port0 Receive pair positive. Power Ground. USB_TXN USB3_TXN IO, DIFF USB3.0 Host Port0 Transmit pair negative. USB_TXP USB3_TXP IO, DIFF USB3.0 Host Port0 Transmit pair positive. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 36 of 89... -
Page 37: Pcie Channel0 Port
Board configuration switch is set to ON position, then PCIe channel0 of Qseven MXM connector is connected to PCIex4 connector which is physically located at the top of the board as shown below. Figure 9: PCIex4 Connector REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 37 of 89... -
Page 38: Table 7: Pciex4 Connector Pin Out
Power Ground. PCIE0_RX- PCIE0_RX- O, DIFF PCIe Port 0 Receive pair negative. PRSNT2# Power Ground. Power Ground. RSVD NC, Reserved Pin. PCIE1_TX+ NC, PCIe Port 1 Transmit pair positive. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 38 of 89... - Page 39 NC, PCIe Port 3 Receive pair positive. Power Ground. PCIE3_RX- NC, PCIe Port 3 Receive pair negative. RSVD NC, Reserved Pin. Power Ground. PRSNT3# RSVD NC, Reserved Pin. Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 39 of 89...
-
Page 40: Figure 10: Mini Pcie Connector
COEX2 1.5V VCC_1V5 O, 1.5V Power 1.5V Supply Voltage. CLK_REQ# CLK_REQ# O, 3.3V CMOS Used to enable Clock. UIM_PWR Power Ground. UIM_DATA REFCLK- PCIe_REFCLK_DM O, DIFF PCIe Clock positive. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 40 of 89... - Page 41 O, 3.3V CMOS Connected to D3 Green LED cathode. RESERVED 1.5V VCC_1V5 O, 1.5V Power 1.5V Supply Voltage. RESERVED Power Ground. RESERVED +3.3V_aux VPCIe_3V3 O, 3.3V Power 3.3V Supply Voltage. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 41 of 89...
-
Page 42: Sata Channel0 Port (Optional)
The RZ/G1M/G1N Qseven Carrier board also supports SATA activity Green LED (D20) on board for SATA activity indication. This 22Pin SATA connector is physically located at the top of the board as shown below. Figure 11: SATA Connector REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 42 of 89... -
Page 43: Table 9: Sata Connector Pin Out
Power Ground. P13 V12 VCC_12V O, 12V Power 12V Supply Voltage. P14 V12 VCC_12V O, 12V Power 12V Supply Voltage. P15 V12 VCC_12V O, 12V Power 12V Supply Voltage. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 43 of 89... -
Page 44: Communication Interface Features
Magjack. This RJ45 Magjack combo connector is physically located at the top of the board as shown below. Figure 12: RJ45 Magjack Note: RZ/G1M/G1N CPU’s EtherAVB interface doesn’t support 10Mbps speed. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 44 of 89... -
Page 45: Table 10: Rj45 Magjack Pin Out
Gigabit Ethernet Speed indication Yellow LED Anode. LED-GO_K GPHY_LINK_LED2 I, 3.3V CMOS Gigabit Ethernet Link/Activity indication Green LED Cathode. LED-GO_A LED-GO_A I, 3.3V Power Gigabit Ethernet Link/Activity indication Green LED Anode. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 45 of 89... -
Page 46: Usb2.0 Port0 (Host)
Termination VCC_5V V_HOST O, 5V Power 5V Supply Voltage. USB_DM USB_P0- IO, DIFF USB Host Port0 data negative. USB_DP USB_P0+ IO, DIFF USB Host Port0 data positive. Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 46 of 89... -
Page 47: Usb2.0 Port1 (Otg)
Qseven MXM connector USB port 0 & 1. This USB2.0 OTG connector is physically located at the top of the board as shown below. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 47 of 89... -
Page 48: Figure 14: Usb2.0 Port1 (Otg)
5V Supply Voltage. USB_DM USB_OTG- IO, DIFF USB OTG Data negative. USB_DP USB_OTG+ IO, DIFF USB OTG Data Positive. USB_ID GPIO_USBOTG_ID( O, 3.3V CMOS USD OTG ID signal. GP1_11) Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 48 of 89... -
Page 49: Sdio Port
This power enable/disable is controlled from the SDIO_PWR# pin of Qseven MXM connector. This SD/MMC connector (J30) is physically located at the bottom of the board as shown below. Figure 15: SD/MMC Connector REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 49 of 89... -
Page 50: Table 13: Sd/Mmc Connector Pin Out
Note: This pin is connected from Qseven MXM connector 53 pin. SD_DATA3 SD2_DAT3(GP6_13) IO, 3.3V CMOS SD/MMC Interface Data Line3. SD2_DATA2 SD2_DAT2(GP6_12) IO, 3.3V CMOS SD/MMC Interface Data Line2. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 50 of 89... -
Page 51: Can0 Header
Note: Optionally connected to on board 12V through resistor and not populated. CANL CANL IO, DIFF CAN Differential negative. Power Ground. CANH CANH IO, DIFF CAN Differential positive. Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 51 of 89... -
Page 52: Audio/Video Features
GPIO3 (188 Pin) & GPIO2 (187 Pin) correspondingly. These Audio Jacks are physically located at the top of the board as shown below. Figure 17: Audio IN/OUT Jack REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 52 of 89... -
Page 53: Table 15: Audio Out Jack Pin Out
Signal Type / Pin Name Signal Name Description Termination AGND GND_SIGNAL Power Analog Ground. I, Analog Microphone Input Signal. MIC_Detect Q7_GPIO2_(GP2_21) I, 3.3V CMOS/ Microphone detect Signal. 10K PU REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 53 of 89... -
Page 54: 7" Rgb Lcd With Capacitive Touch
(J12). This RGB LCD connector (J8) and Capacitive Touch Connector (J12) are physically located at the top of board as shown below. Figure 18: RGB LCD Connector REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 54 of 89... -
Page 55: Table 17: 7" Rgb Lcd Connector Pin Out
Display Red Data 2(LSB). VSS9 Power Ground. DIS_CLK O, 3.3V CMOS DOT Data Clock. HSYNC DIS_HSYNC O, 3.3V CMOS Horizontal SYNC Output. VSYNC DIS_VSYNC O, 3.3V CMOS Vertical SYNC Output. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 55 of 89... -
Page 56: Table 18: Capacitive Touch Connector Pin Out
SSI_RST(GP2_13) O, 3.3V CMOS/ Touch Controller Reset. 10K PU WAKE# CAP_WAKE# O, 3.3V CMOS/ Wake Interrupt. 10K PU Q7_GPIO0_(GP2_12) I, 3.3V CMOS/ Touch Controller Interrupt. 10K PU Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 56 of 89... -
Page 57: Additional Features
Qseven SOM for RTC back up voltage when VCC main power is off. This Coin Cell Holder (J18) is physically located at the top of the board as shown below. Figure 19: Coin Cell Holder REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 57 of 89... -
Page 58: Fan Header
Signal Name Description Termination VCC_12V O, 12V Power 12V Supply Voltage. PWM5(GP7_20) O, 3.3 CMOS Fan Speed control. Power Ground. FAN_PWR VCC_FAN O, Power Controlled Power for Fan. Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 58 of 89... -
Page 59: Jtag Header (Optional)
Qseven Edge connector and so either one interface only can be used at a time. By default, Debug UART (SCIF0) is supported in the RZ/G1M/G1N Qseven SOM and so JTAG connector on RZ/G1M/G1N Qseven carrier board cannot be used for debugging. Figure 21: JTAG Header REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 59 of 89... -
Page 60: Table 20: Jtag Header Pin Out
Power Ground. JTAG_TDO JTAG_TDO O, 3.3V CMOS JTAG test data Output. Power Ground. RSTBN RSTBN I,3.3V CMOS/ Reset Signal. 10K PU Power Ground. Power Ground. 10K PD Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 60 of 89... -
Page 61: Som Expansion Connectors
Expansion connector 1 & 2 (J17 & J9) pins in RZ/G1M/G1N Qseven carrier board. These Expansion connectors J15 & J10 are physically located at the top of the board as shown below. Figure 22: SOM Expansion Connectors REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 61 of 89... -
Page 62: Carrier Board Expansion Connectors
RZ/G1M/G1N Qseven SOM Expansion connector 1 & 2 pins, these connectors pinout information are not included in this document. Refer RZ/G1M/G1N Qseven SOM hardware user guide for Expansion connector 1 & 2 pinout details. Figure 23: Carrier Board Expansion Connectors REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 62 of 89... -
Page 63: Table 21: Expansion Connector3 Pin Out
NC in RZ/G1M/G1N carrier board. Note: This pin is connected to Qseven MXM connector 126 pin. THRM# NC in RZ/G1M/G1N carrier board. Note: This pin is connected to Qseven MXM connector 69 pin. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 63 of 89... - Page 64 Note: This pin is connected to Qseven MXM connector 186 pin through resistor and default populated. GP2_I2C_DAT NC in RZ/G1M/G1N carrier board. Note: This pin is connected to Qseven MXM connector 125 pin. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 64 of 89...
- Page 65 This pin is connected from Audio IN Jack for Headphone Mic detect. Note: This pin is also connected to Qseven MXM connector 187 pin through resistor and default populated. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 65 of 89...
- Page 66 Ground. VCC_5V O, 5V Power 5V Supply Voltage. VCC_5V O, 5V Power 5V Supply Voltage. VCC_5V O, 5V Power 5V Supply Voltage. VCC_5V O, 5V Power 5V Supply Voltage. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 66 of 89...
- Page 67 Connector 62 pin through resistor and default populated. I2C2_SDA(GP2_7) IO, 3.3V OD I2C2 Data. Note: This pin is connected to Qseven MXM Connector 68 pin through resistor and default populated. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 67 of 89...
-
Page 68: Architecture And Design - Camera Add-On Module
RS232 Transceiver HSCIF1 Header I2C5 VCC_1V8 VCC_1V8 Reset To on board Peripherals Regulator Expansion VCC_3V3 To On board Peripherals Connector-3 VCC_1V5 VCC_5V Figure 24: RZ/G1M/G1N Camera Add-On Module Block Diagram REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 68 of 89... -
Page 69: Rz/G1M/G1N Camera Add-On Module Features
: 90mm X 60mm Figure 25: Camera Add-On Module Expansion Connectors Important Note: Refer APPENDIX I for guidelines to integrate Camera Add-On Module in to RZ/G1M/G1N Development platform carrier board. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 69 of 89... -
Page 70: Video Features
NTSC/PAL composite video input. Power Ground. Power Ground. Note: Optionally RZ/G1M/G1N Camera Add-On Module can support S-Video input also by using one more RCA Jack (J4) which is not populated by default. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 70 of 89... -
Page 71: 8Bit Cmos Camera
Part Number: CN003VEF2052 Description: VGA (640x480 pixel) CMOS camera based on OmniVision’s OV7725 sensor Manufacturer Name: Global Digital Star Limited Manufacturer Web link: http://www.globaldigitalstar.com/ Figure 27: 8bit CMOS Camera Header REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 71 of 89... -
Page 72: Table 23: Camera Connector Pin Out
VIN2 Camera Data0. DATA5 VI2_DATA3 I, 2.8V CMOS VIN2 Camera Data3. DATA3 VI2_DATA1 I, 2.8V CMOS VIN2 Camera Data1 DATA4 VI2_DATA2 I, 2.8V CMOS VIN2 Camera Data2. DATA1 DATA0 REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 72 of 89... -
Page 73: Hdmi Output
Blue Pair Ground. TMDS_D0- O, TMDS HDMI data0 pair negative. TMDS_CLK+ CLK+ O, TMDS Display Clock pair positive. Power Clock pair Ground. TMDS_CLK- CLK- O, TMDS Display Clock pair negative. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 73 of 89... -
Page 74: Hdmi Input (Optional)
CPU’s VIN1 interface through Expansion Connector1. HDMI input is supported through standard HDMI connector (J11) with ESD protection circuitry. This is the optional feature and not be populated by default To add HDMI Input support in RZ/G1M/G1N Camera Add-On Module, please contact iWave. 3.3.5 16bit CMOS Camera (Optional) The RZ/G1M/G1N Camera Add-On Module optionally supports 16bit Camera connector (J9) for CMOS camera interface. -
Page 75: Communication Interface Features
Signal Name Description Termination VCC_5V VCC_5V_CAN O, 5V Power 5V Supply Voltage. CANL CANL IO, DIFF CAN Differential negative. Power Ground. CANH CANH IO, DIFF CAN Differential positive. Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 75 of 89... -
Page 76: Serial Interface Features
Pin Name Signal Name Description Termination Power Ground. VCC_3V3 VCC_3V3 O, 3.3V Power 3.3V Supply Voltage. UART_RXD SCIF1_RXD I, RS232 SCIF1 Receive signal. UART_TXD SCIF1_TXD O, RS232 SCIF1Transmit signal. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 76 of 89... -
Page 77: High Speed Uart Rs232 Header
HSCIF1Clear to Send signal. VCC_3V3 VCC_3V3 O, 3.3V Power 3.3V Supply Voltage. UART1_RXD HSCIF1_RXD I, RS232 HSCIF1Receive signal. UART1_TXD HSCIF1_TXD O, RS232 HSCIF1Transmit signal. UART1_RTS HSCIF1_RTS I, RS232 HSCIF1Ready To Send signal. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 77 of 89... -
Page 78: Technical Specification
Figure 32: Power Jack Table 28: Power Jack Pin Out Signal Name Signal Type / Pin Name Description Termination VCC_12V 12V, Power Input Supply Voltage. Power Ground. Power Ground. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 78 of 89... -
Page 79: Power Output Specification
Power to Qseven SOM (through Qseven MXM connector) VCC_5V_SOM 4.85V 5.15V 4000mA VRTC_3V0 2.8V 3.3V Power to Add-On Module (through Expansion connector3) VCC_5V 4.85V 5.15V 1500mA VCC_3V3 3.15 3.45 1000mA VCC_1V5 1.35 1.65 500mA REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 79 of 89... -
Page 80: Environmental Characteristics
4.2.3 Electrostatic Discharge iWave’s RZ/G1M/G1N Qseven Development Platform is sensitive to electro static discharge and so high voltages caused by static electricity could damage some of the devices on board. It is packed with necessary protection while shipping. -
Page 81: Mechanical Characteristics
Ethernet Jack (23.24mm) and bottom side maximum height component is Ground Test Point (5.59mm). Please refer the below figure for height details of the RZ/G1M/G1N Qseven Carrier Board. Figure 34: RZ/G1M/G1N Qseven carrier board Mechanical dimension - Side View REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 81 of 89... -
Page 82: Rz/G1M/G1N Camera Add-On Module Mechanical Dimensions
Once the Qseven module is inserted to the MXM connector properly, press the board vertically down as shown below (in the second photo), such that the board is fixed firmly into the expansion connectors. Figure 36: Qseven SOM Insertion procedure REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 82 of 89... -
Page 83: Ordering Information
Camera Add-On Module does not come with Camera. Camera has to be purchased separately from Camera Manufacturer or contact iWave. Note: For Development platform identification purpose, Product part number is pasted as Label with Barcode readable format. REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 83 of 89... -
Page 84: Camera Add-On Module Integration Procedure
Accessory Description Image Quantity Camera Add-On Module M2.5 x 15mm Pan Head Screw M2.5 x 5mm Threaded Metallic Hex Spacer 2.5mm Non-Metallic Flat Washer M2.5mm Split Lock Washer M2.5mm Nut REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 84 of 89... -
Page 85: Figure 37: Insert Pan Head Screw
2. Tighten the M2.5 x 5mm threaded metallic hex spacer into the inserted screw from RZ/G1M/G1N Qseven carrier board top side as shown below. Figure 38: Tighten Metallic Hex Spacer REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 85 of 89... -
Page 86: Figure 39: Insert Camera Add-On Module
Expansion connectors. Figure 39: Insert Camera Add-On Module 4. Insert the 2.5mm Non-metallic flat washer into the screw as shown below. Figure 40: Insert Non-Metallic Flat Washer REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 86 of 89... -
Page 87: Figure 41: Insert Split Lock Washer
6. Finally, tighten the M2.5mm nut into screw as shown below to finish the RZ/G1M/G1N Camera Add-On Module integration in to RZ/G1M/G1N Development platform. Figure 42: Tighten the Nut REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 87 of 89... -
Page 88: 8Bit Cmos Camera Connecting Procedure
Figure 43: Camera Connection 2. Remove the Camera Lens Cap from camera and fix the camera on the board as shown below if needed. Figure 44: Camera Lens Cap REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 88 of 89... - Page 89 RZ/G1M/G1N Qseven Development Platform Hardware User Guide REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 89 of 89...
