2.4.2 Data UART Header

RZ/G1E SODIMM carrier board supports full functional Data UART interface through RZ/G1E CPU's HSCIF1 interface.
This HSCIF1 signals from SODIMM Edge connector is connected directly to 6pin Header (J11) for easy accessibilty.

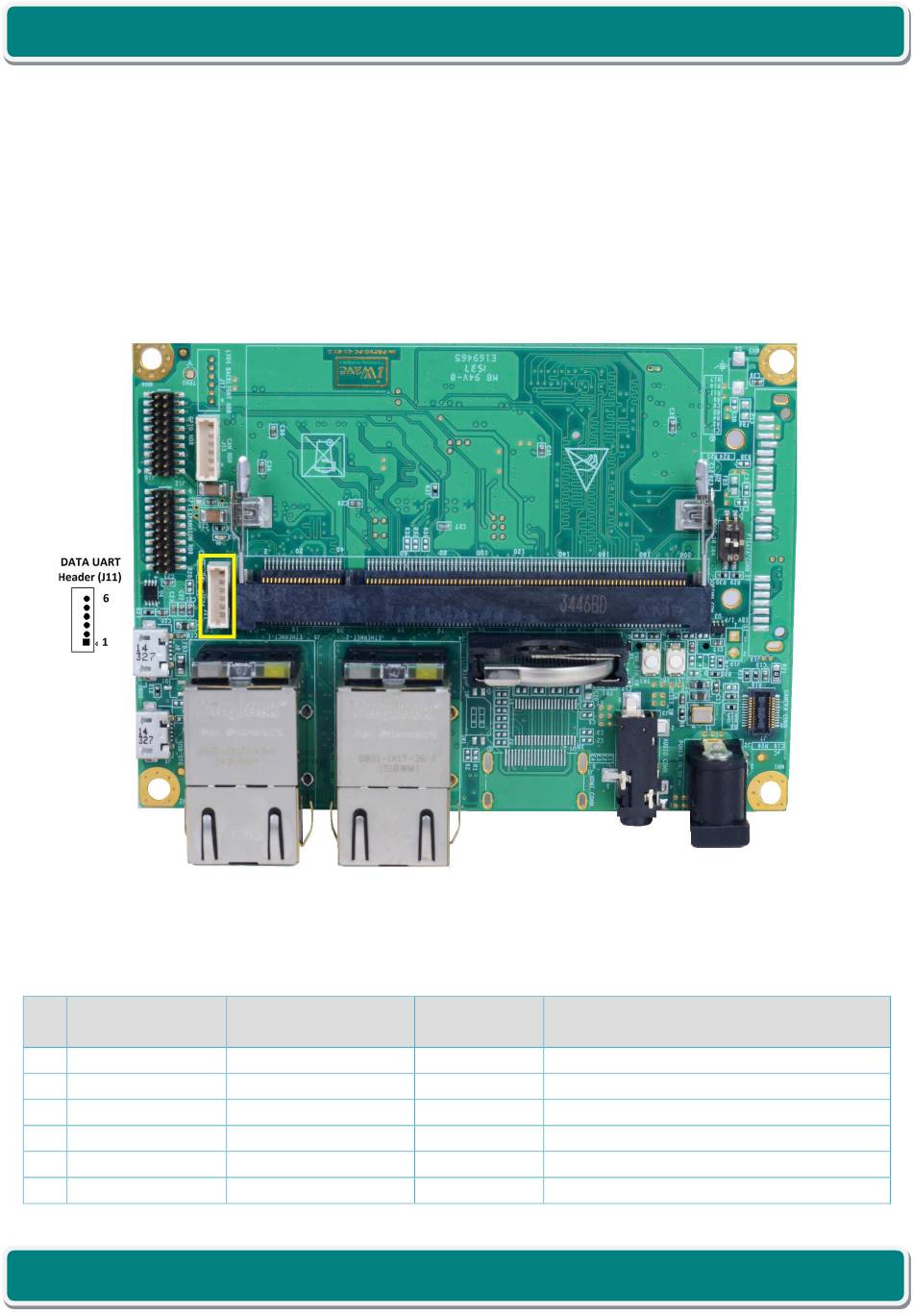

This Data UART header is physically located at the top of the board as shown below.
Number of Pins
Connector Part number : 53047-0610
Mating Connector

Table 5: Data UART Header Pin Out

Pin
Pin Name
No
1 GND
2 UART_CTS#
3 VCC_3V3
4 UART_TXD
5 UART_RXD
6 UART_RTS#
iWave Systems Technologies Pvt. Ltd.
: 6
: 51021-0600 from Molex

Figure 4: Data UART Header

Signal Name
GND
HSCIF1_HCTS(GP4_11)
VCC_3V3
HSCIF1_HTX(GP4_9)
HSCIF1_HRX(GP4_8)
HSCIF1_HRTS(GP4_12)
Signal Type/
Termination
Power Ground.
O, 3.3V CMOS HSCIF1 Interface Clear To Send signal.
O, 3.3V Power 3.3V Supply Voltage.
I, 3.3V CMOS HSCIF1 Interface Transmit signal.
O, 3.3V CMOS HSCIF1 Interface Receive signal.
I, 3.3V CMOS HSCIF1 Interface Ready to Send signal.
Description
