Architecture And Design; Rz/G1E Sodimm Carrier Board Block Diagram; Figure 1: Rz/G1E Sodimm Carrier Board Block Diagram - iWave iW-RainboW-G22D Hardware User's Manual

RZ/G1E SODIMM Development Platform Hardware User Guide
This section provides detailed information about the RZ/G1E SODIMM development platform carrier board features
with high level block diagram and detailed information about each block.
2.1

RZ/G1E SODIMM Carrier Board Block Diagram

JTAG Header
Micro SD
Connector
6Pin CAN
Header
UART Header
RJ45 Mag Jack1
USB TypeA
Connector1
RJ45 Mag Jack2
USB TypeA
Connector2
USB Micro AB
Connector
¹ Since EtherMAC and VI1 are multiplexed in RZ/G1E CPU, either one interface only can be supported in the RZ/G1E SOM.
2
Since VI1 and MSIOF1 are shared the same SODIMM Edge pins, either one interface only can be connected to the SODIMM Edge in the RZ/G1E SOM.
iWave Systems Technologies Pvt. Ltd.

2. ARCHITECTURE AND DESIGN

RZ/G1E SODIMM Carrier Board - Block Diagram
PCB Edge Connector
RTC Battery
RTC
Control
RESET
Switches
JTAG
JTAG
SDHI x 4bit
SDHI0
CAN0
CAN
CAN0
Transceiver
UART x 1
HSCIF1
100/1000Mbps
EtherAVB
USB1
2 Port
USB1
USB HUB
10/100Mbps
EtherMAC¹
USB Device
USB0

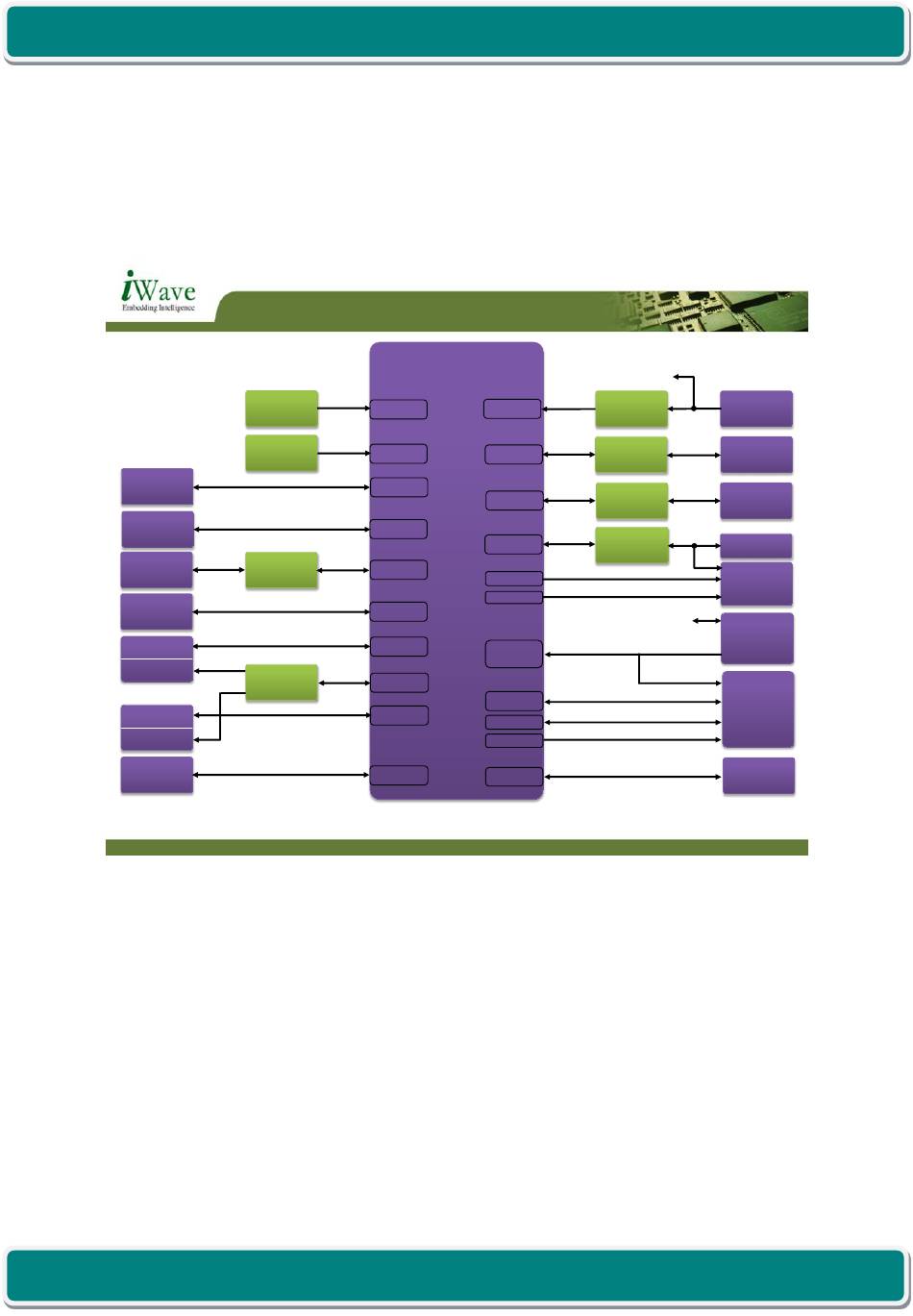

Figure 1: RZ/G1E SODIMM Carrier Board Block Diagram

SODIMM
To On-Board Power
(200Pin)
Circuit & Peripherals
3.3V
Power IN
UART
UART to USB
SCIF4
I2S
SSI3/
SSI4
I2C5
Resistive Touch
I2C5
DU0
TPUTO3
VI1¹ /
MSIOF1²
HSCIF2,
SCIF1,SCIF5
CAN1
TPUTO0
GPIO'S,
MSIOF2
3.3V Power Power Jack
Regulator (5V)
Debug
USB Micro AB
Bridge
Connector
I2S Audio Audio In/Out
Codec Connector
Resistive TP
Controller Connector
18bpp RGB
4.3" RGB LCD
Connector
PWM
I2C5
8bit Camera
Connector
VI1
(OV7725)
MSIOF1
UART x 3 20Pin
Expansion
CAN x 1
Header
PWM
20Pin GPIO
GPIOs
Header
