RZ/G1E SODIMM Development Platform Hardware User Guide
3.2

RZ/G1E HDMI Add-On Module Features

The RZ/G1E HDMI Add-On Module supports HDMI output extension feature for the RZ/G1E development kit and also
some more features as listed below;
•
HDMI Output through HDMI Transmitter x 1 Port
•
RS232 transceiver for data UART x 2 ports (SCIF1, SCIF5)
•
RS232 transceiver for high speed UART x 1 Port (HSCIF2)
•
CAN transceiver for CAN1 interface and header
•
Form Factor
Important Note: Since 40pin flip LCD connector, Expansion Header & GPIO Header pins are one to one directly
connected from SODIMM carrier board, these connectors pinout information are not included in this section.
iWave Systems Technologies Pvt. Ltd.
: 50mm x 40mm

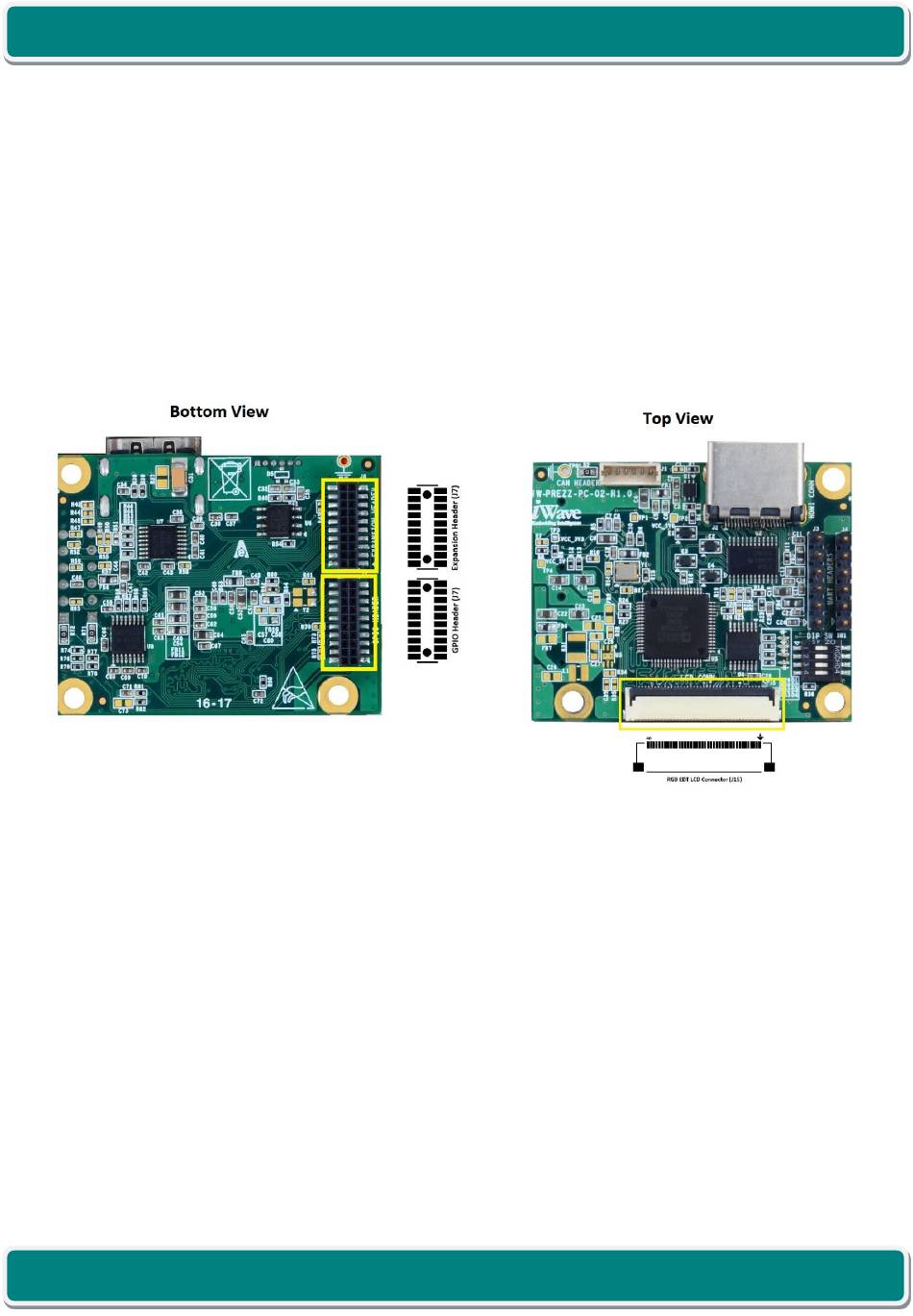

Figure 20 HDMI Board Mating connectors

REL1.1
Page 51 of 71
